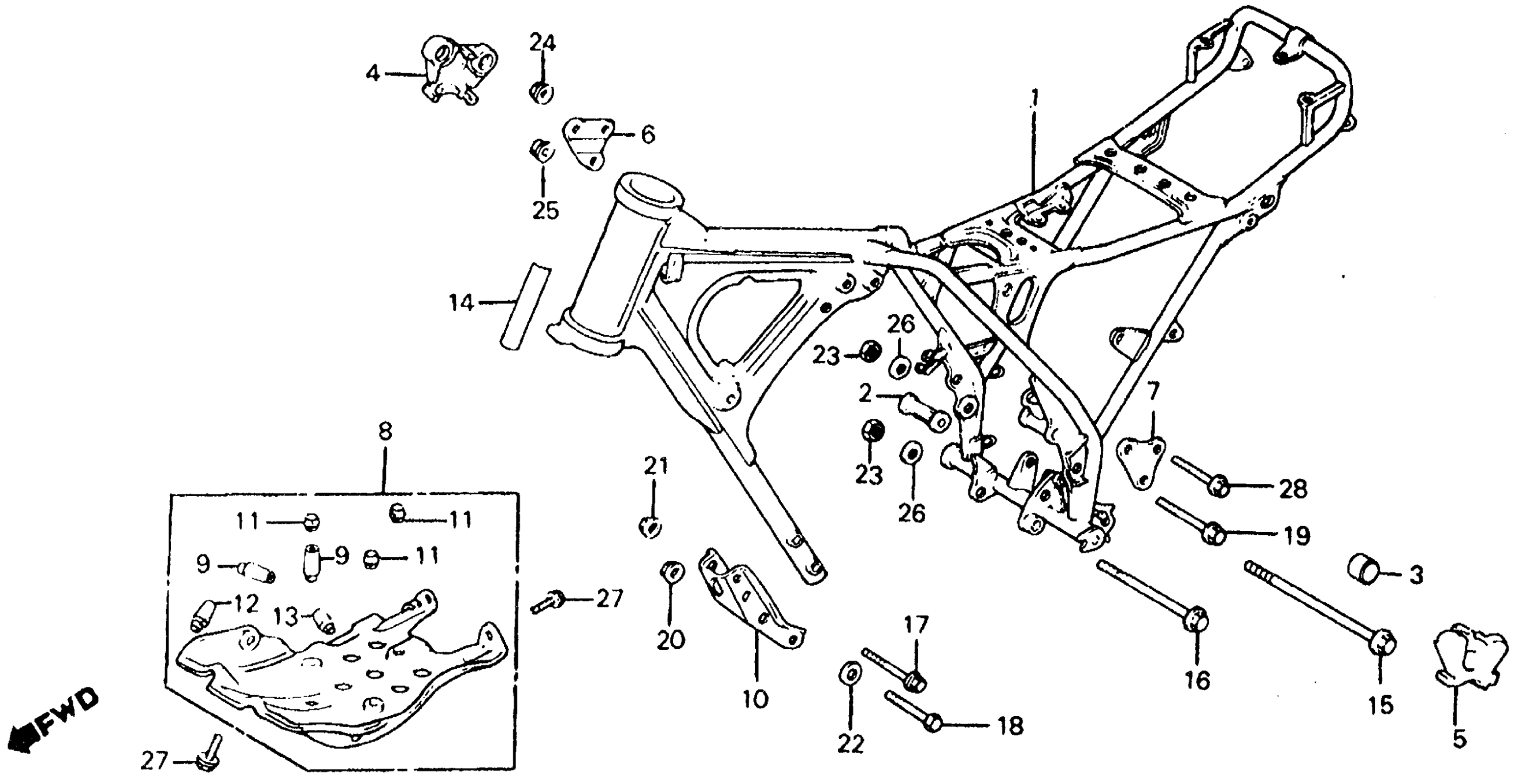

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 FRAME 81-82 Diagram

#

Description
Price

1

FRAME *R23* (TAHITIAN RED)

50100-MA0-770ZA

Unavailable

2

COLLAR, ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50130-MA0-000ZA

Unavailable

3

PROTECTOR, ENGINE HANGER (NOT AVAILABLE)

50136-KA6-000

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) *R23* (TAHITIAN RED) (NOT AVAILABLE)

50138-429-000ZB

Unavailable

7

PLATE, L. ENGINE HANGER (UPPER) *R23* (TAHITIAN RED) (NOT AVAILABLE)

50139-429-000ZB

Unavailable

8

PLATE, SKID (NOT AVAILABLE)

50351-429-770

Unavailable

9

RUBBER A, STOPPER

50352-434-000

$5.55

10

HANGER, FR. ENGINE *R23* (TAHITIAN RED) (NOT AVAILABLE)

50353-MA0-000ZA

Unavailable

11

RUBBER B, STOPPER

50354-428-000

$2.75

12

RUBBER B, STOPPER

50354-434-000

$5.34

13

RUBBER C, STOPPER

50355-434-000

$4.45

14

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

15

BOLT, FLANGE (12X240) (NOT AVAILABLE)

90104-429-000

Unavailable

16

BOLT, FLANGE (12X140) (NOT AVAILABLE)

90114-MA0-000

Unavailable

17

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

18

BOLT, FLANGE (10X62) This part replaces 90155-MA0-000.

90101-MBB-000

$4.04

19

BOLT, FLANGE (10X73) (NOT AVAILABLE)

90157-MA0-770

Unavailable

20

NUT, FLANGE (10MM)

90308-382-670

$4.07

21

NUT, HEX. (8MM)

90309-357-000

$3.40

22

WASHER (10MM)

90410-KR0-000

$2.67

22

WASHER (10MM) This part replaces 90426-122-000.

90410-KR0-000

$2.67

23

NUT, HEX. (12MM)

94001-12000-0S

$1.66

24

NUT, HEX. (8MM)

90309-357-000

$3.40

25

NUT, FLANGE (10MM)

90308-382-670

$4.07

26

WASHER, PLAIN (12MM)

94101-12000

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

28

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31
