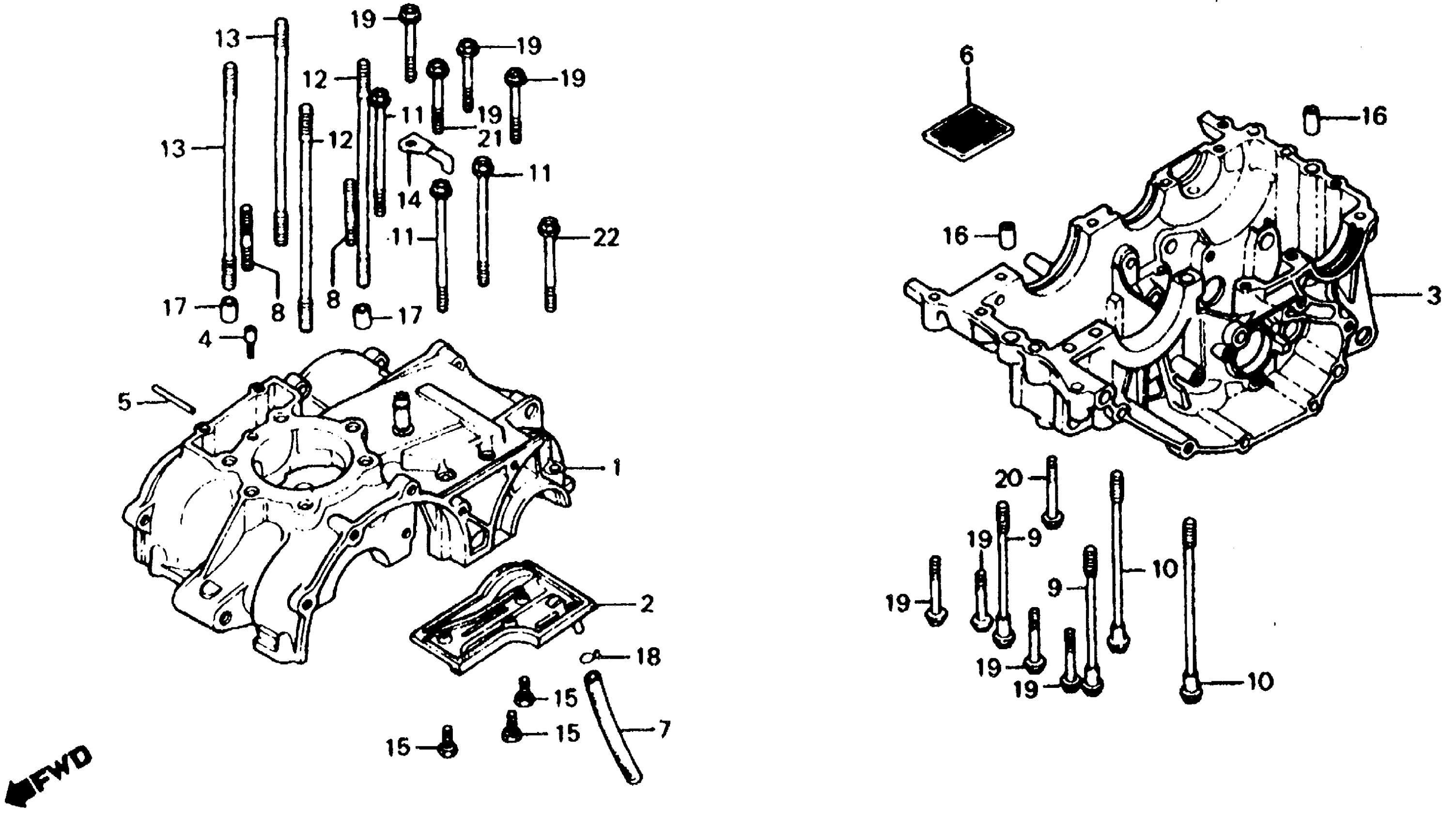

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 CRANKCASE 81-82 Diagram

CRANKCASE (UPPER)

11100-MA0-000

Unavailable

PLATE, BREATHER (NOT AVAILABLE)

11110-429-000

Unavailable

CRANKCASE (LOWER) (NOT AVAILABLE) This part replaces 11200-MA0-000.

11200-MA0-305

Unavailable

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-MA0-305

Unavailable

ORIFICE, OIL (NOT AVAILABLE)

11333-376-000

Unavailable

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-428-000

Unavailable

SCREEN, OIL FILTER

15421-428-000

$17.82

TUBE, OIL RETURN (NOT AVAILABLE)

15713-429-000

Unavailable

BOLT, STUD (8x50MM) This part replaces 90003-428-000.

90064-634-000

Unavailable

BOLT, STUD (8x50MM)

90064-634-000

Unavailable

BOLT, FLANGE (9X150) (NOT AVAILABLE)

90007-429-000

Unavailable

BOLT, FLANGE (10X166) (TOKA1) (NOT AVAILABLE)

90010-371-003

Unavailable

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

BOLT, STUD (8X193) (NOT AVAILABLE)

90081-429-000

Unavailable

BOLT, STUD (8X207) (NOT AVAILABLE)

90083-429-000

Unavailable

CLAMP, TUBE

90511-429-000

Unavailable

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28

PIN A, DOWEL (12X20)

94301-12200

$2.29

CLIP, TUBE (C11)

95002-70000

$1.56

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
