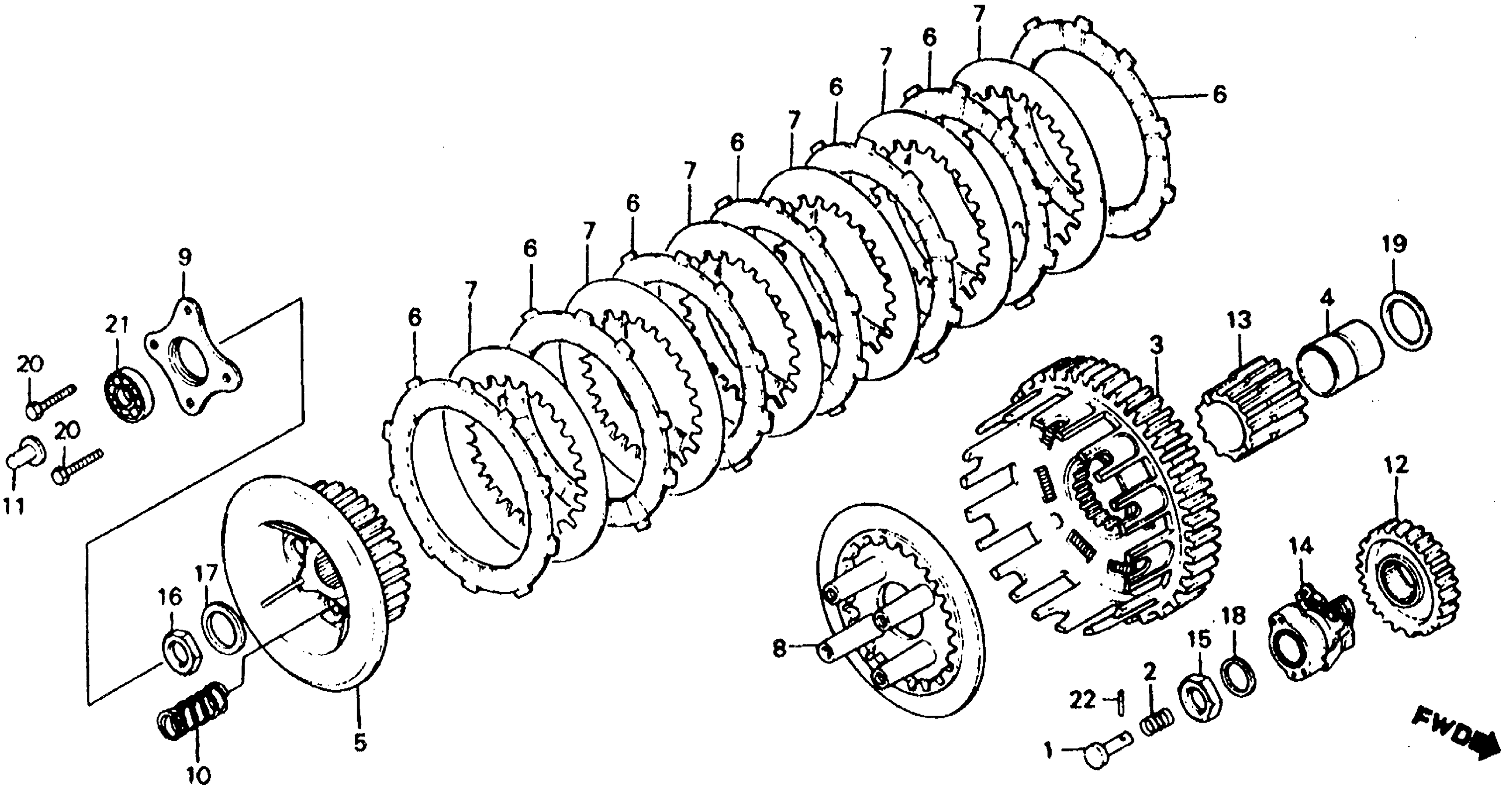

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 CLUTCH 81-82 Diagram

#

Description
Price

1

THROUGH, OIL (NOT AVAILABLE)

15445-428-000

Unavailable

2

SPRING, OIL THROUGH

15447-149-000

$2.92

3

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MA0-000

Unavailable

3

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-429-010.

22100-MA0-000

Unavailable

4

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-429-000

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE)

22120-429-000

Unavailable

6

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

6

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

7

PLATE, CLUTCH

22321-429-000

Unavailable

8

PLATE, CLUTCH PRESSURE

22350-KW0-000

Unavailable

8

PLATE, CLUTCH PRESSURE This part replaces 22350-MC4-000.

22350-KW0-000

Unavailable

8

PLATE, CLUTCH PRESSURE

22350-MR1-000

Unavailable

8

PLATE, CLUTCH PRESSURE This part replaces 22350-429-000.

22350-MR1-000

Unavailable

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-471-000

Unavailable

10

SPRING, CLUTCH

22401-MC4-000

Unavailable

10

SPRING, CLUTCH This part replaces 22401-429-000.

22401-MC4-000

Unavailable

11

ROD, CLUTCH LIFTER

22847-166-000

$12.56

12

GEAR, PRIMARY DRIVE (29T)

23121-429-000

Unavailable

13

GEAR, KICK STARTER (NOT AVAILABLE)

28231-429-000

Unavailable

14

ADVANCER ASSY., SPARK

30220-MA0-154

Unavailable

15

NUT, LOCK (18MM)

90235-428-000

Unavailable

16

NUT, LOCK (18MM)

90235-429-000

Unavailable

17

WASHER, LOCK

90432-428-000

$7.57

18

WASHER (18MM)

90451-357-000

Unavailable

19

WASHER, THRUST (22MM) (NOT AVAILABLE)

90458-429-010

Unavailable

20

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

20

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

21

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

22

ROLLER (2X13.8)

96220-20138

$1.49
