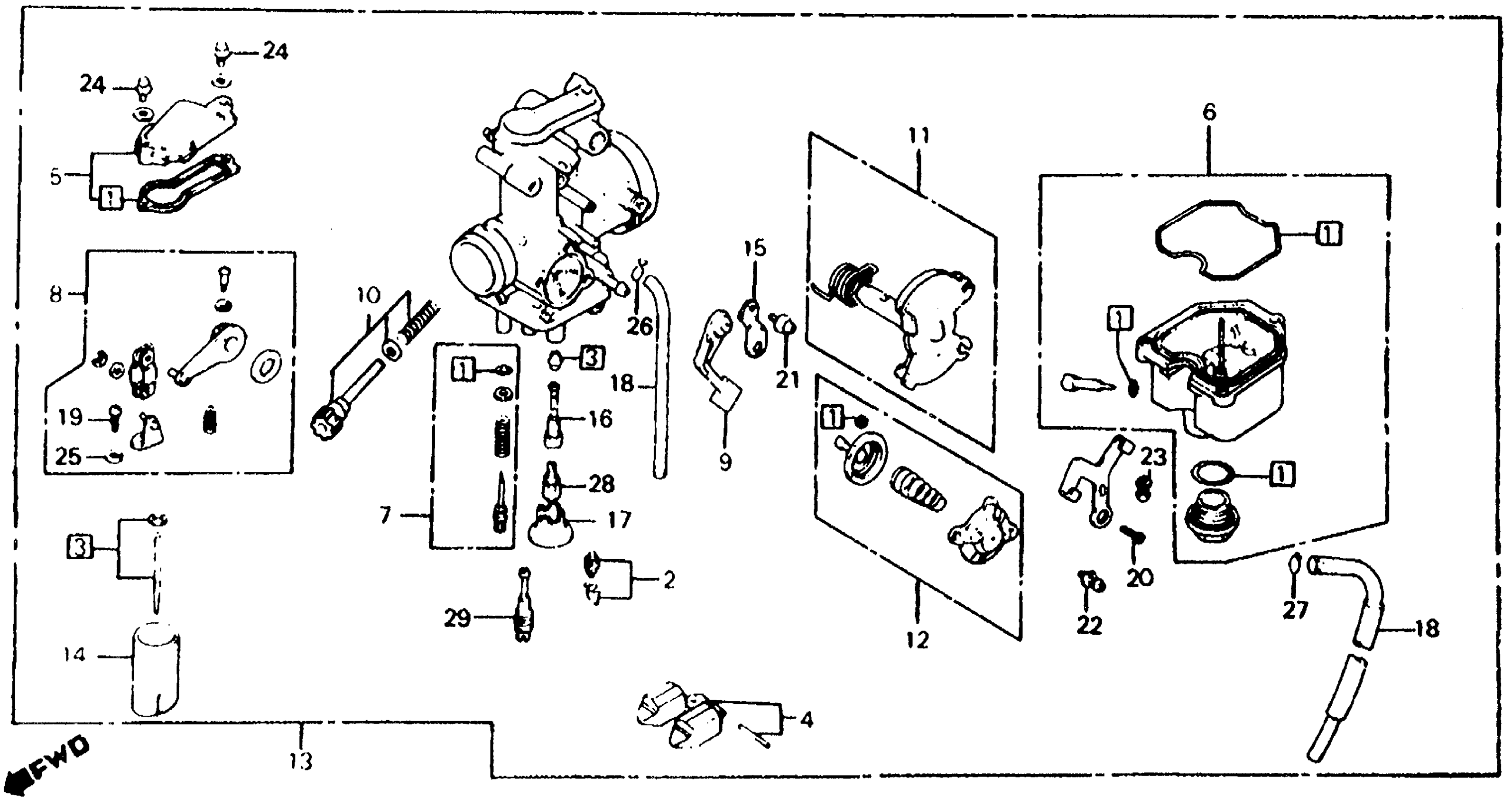

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 CARBURETOR 81-82 Diagram

#

Description
Price

1

GASKET SET

16010-429-305

Unavailable

1

GASKET SET This part replaces 16010-429-671.

16010-429-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-429-771

Unavailable

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-671.

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-771.

16014-KW3-014

Unavailable

6

CHAMBER SET, FLOAT | Use up to Engine SN PD11B A This part replaces 16015-446-004.

16015-KCE-671

Unavailable

6

CHAMBER SET, FLOAT | Use from Engine SN PD11B B This part replaces 16015-KA6-004.

16015-KCE-671

Unavailable

6

CHAMBER SET, FLOAT | Use from Engine SN PD11B B This part replaces 16015-KCE-670.

16015-KCE-671

Unavailable

6

CHAMBER SET, FLOAT | Use from Engine SN PD11B B

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

7

SCREW SET A

16016-402-004

$20.82

8

ARM SET, LINK

16018-428-004

Unavailable

9

LEVER, CHOKE

16019-429-771

Unavailable

10

SCREW SET B (NOT AVAILABLE)

16028-435-004

Unavailable

11

LINK SET, THROTTLE (NOT AVAILABLE)

16032-429-671

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515 This part replaces 16100-MA0-004.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515 This part replaces 16100-MA0-014.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5307375 This part replaces 16100-MA0-014.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-MA0-024.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515 This part replaces 16100-MA0-024.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5307375 This part replaces 16100-MA0-024.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-MA0-034.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515 This part replaces 16100-MA0-034.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5307375 This part replaces 16100-MA0-034.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-MA0-044.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515 This part replaces 16100-MA0-044.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5307375 This part replaces 16100-MA0-044.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY.

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5303515

16100-MA0-054

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 5307375

16100-MA0-054

Unavailable

14

VALVE, THROTTLE

16111-429-671

Unavailable

15

PLATE, CHOKE LEVER SETTING

16119-429-771

$9.66

16

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-435-004

Unavailable

17

HOLDER, JET

16168-382-014

$9.81

18

TUBE, RUBBER

16199-435-771

$11.39

19

SCREW, PAN (3X8)

93500-03008-0H

$1.49

20

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

21

SCREW-WASHER (4X10)

93892-04010-08

$1.49

22

SCREW-WASHER (4X12)

93892-04012-08

$1.49

23

SCREW-WASHER (4X16)

93892-04016-08

$1.49

24

SCREW-WASHER (4X18) (NOT AVAILABLE)

93893-04018-08

Unavailable

25

WASHER, SPRING (3MM)

94111-03800

$1.49

26

CLIP, TUBE (B7)

95002-02070

$1.80

27

CLIP, TUBE (B6.5)

95002-02650

$1.49

28

JET, MAIN (#152) | Use up to Engine SN PD11B B

99101-357-1520

$19.84

28

JET, MAIN (#152) | (Optional). Use from Engine SN PD11C A

99101-357-1520

$19.84

28

JET, MAIN (#155) JET, MAIN (#158) | (Optional). Use up to Engine SN PD11B B This part replaces 99101-357-1550.

99113-GHB-1550

$9.41

28

JET, MAIN (#155) JET, MAIN (#158) | Use from Engine SN PD11C A This part replaces 99101-357-1550.

99113-GHB-1550

$9.41

28

JET, MAIN (#155) | (Optional). Use up to Engine SN PD11B B

99113-GHB-1550

$9.41

28

JET, MAIN (#155) | Use from Engine SN PD11C A

99113-GHB-1550

$9.41

28

JET, MAIN (#138) | (Optional).

99101-357-1380

$9.26

28

JET, MAIN (#140) | (Optional).

99101-357-1400

$8.55

28

JET, MAIN (#142) | (Optional).

99101-357-1420

$8.55

28

JET, MAIN (#145) | (Optional).

99101-357-1450

$9.07

28

JET, MAIN (#148) | (Optional).

99101-357-1480

$17.95

28

JET, MAIN (#150) | (Optional). This part replaces 99101-357-1500.

99113-GHB-1500

$9.08

28

JET, MAIN (#158) JET, MAIN (#172) | (Optional). This part replaces 99101-357-1580.

99113-GHB-1580

$9.44

28

JET, MAIN (#150) | (Optional).

99113-GHB-1500

$9.08

28

JET, MAIN (#158) | (Optional).

99113-GHB-1580

$9.44

28

JET, MAIN (#160) | (Optional). Use from Engine SN PD11C A This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

28

JET, MAIN (#160) | (Optional). Use from Engine SN PD11C A

99113-GHB-1600

$9.44

29

JET, SLOW

99103-MEA-0550

$11.26

29

JET, SLOW (#55) This part replaces 99103-437-0550.

99103-MEA-0550

$11.26
