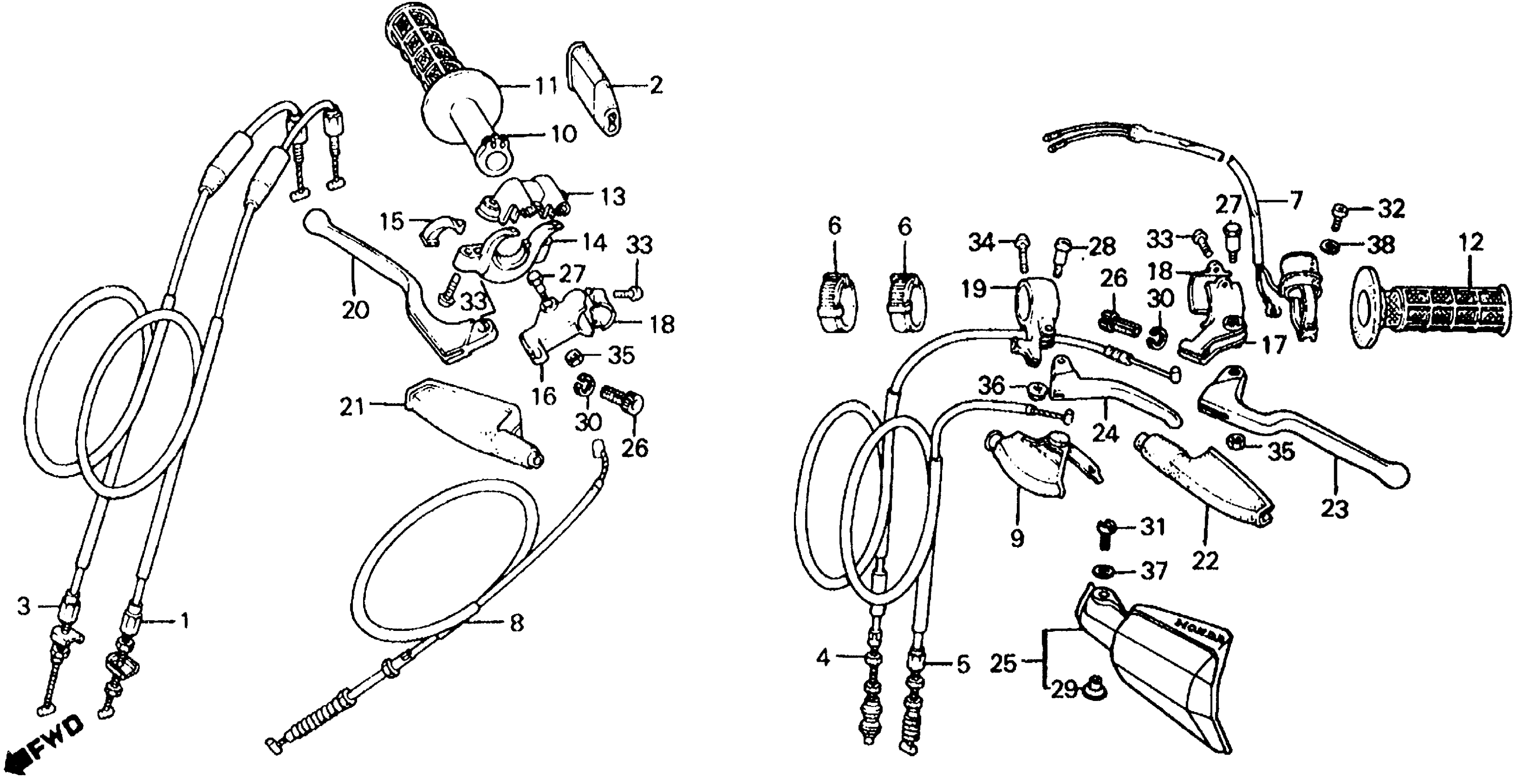

Honda XR500RA (81) MOTORCYCLE, JPN, VIN# JH2PE010-BM200034 TO JH2PE010-BM203585 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MA0-010

Unavailable

3

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MA0-000

Unavailable

4

CABLE, CLUTCH

22870-MA0-000

Unavailable

5

CABLE, DECOMPRESSION (NOT AVAILABLE)

22890-MA0-000

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.23

7

SWITCH ASSY., STOP This part replaces 35130-KA2-003.

35130-KT0-670

Unavailable

7

SWITCH ASSY., STOP

35130-KT0-670

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-MA0-000.

45450-MA0-770

Unavailable

8

CABLE, FR. BRAKE

45450-MA0-770

Unavailable

9

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$15.79

10

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$22.40

10

PIPE, THROTTLE GRIP

53141-429-010

$22.40

11

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

12

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

13

HOUSING, THROTTLE (UPPER) (NOT AVAILABLE)

53167-MA0-000

Unavailable

14

HOUSING, THROTTLE (LOWER) (NOT AVAILABLE)

53168-MA0-000

$21.05

15

SLIDER, THROTTLE CABLE (NOT AVAILABLE)

53169-KA4-000

Unavailable

16

BRACKET, R. HANDLEBAR

53171-429-770

Unavailable

17

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

18

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

19

BRACKET, DECOMPRESSION LEVER

53173-435-730

$36.79

20

LEVER, R. HANDLEBAR

53175-GM2-010

Unavailable

20

LEVER, R. HANDLEBAR This part replaces 53175-429-770.

53175-GM2-010

Unavailable

21

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

22

COVER, L. HANDLEBAR

53177-430-000

$11.00

23

LEVER, L. HANDLEBAR This part replaces 53178-429-770.

53178-KF0-000

$38.96

23

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

24

LEVER, DECOMPRESSION

53180-MAG-670

$27.22

24

LEVER, DECOMPRESSION This part replaces 53180-435-730.

53180-MAG-670

$27.22

26

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

27

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.94

28

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

30

NUT, FIXING

90321-315-670

$7.31

30

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

32

SCREW, PAN (4X12)

93500-04012-0A

$1.49

32

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

33

SCREW, PAN (5X20)

93500-05020-0A

$1.49

34

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

NUT, FLANGE (5MM)

94050-05000

$1.49

38

WASHER, SPRING (4MM)

94111-04000

$1.49
