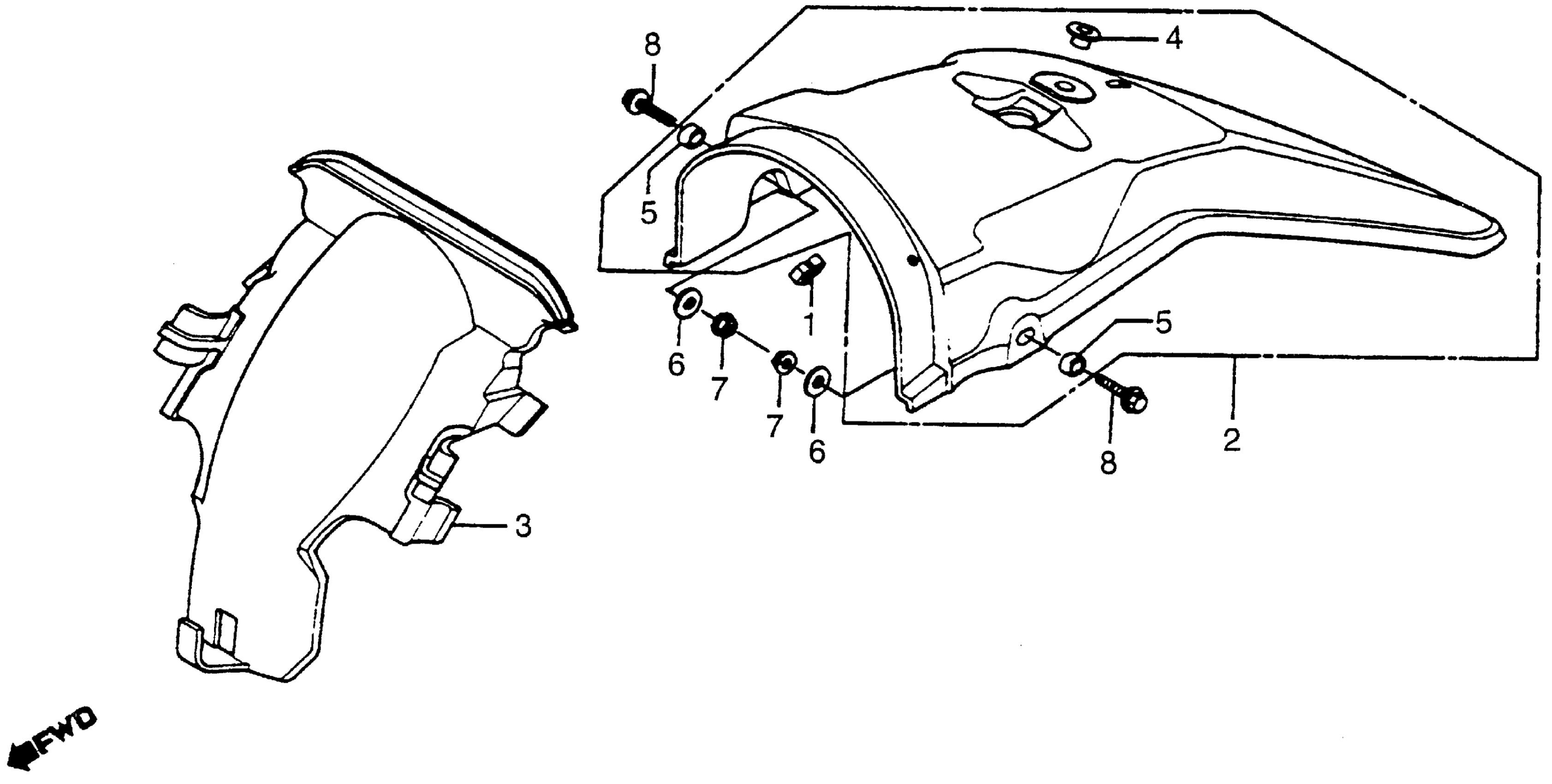

Honda XR500A (80) MOTORCYCLE, JPN, VIN# PE01-5100011 TO PE01-5104098 REAR FENDER Diagram

#

Description

Price

1

GROMMET, CABLE

32985-300-000

$3.12

2

FENDER ASSY., RR. R23 (TAHITIAN RED) (NOT AVAILABLE)

80100-434-000ZA

Unavailable

3

FENDER B, RR. (NOT AVAILABLE)

80105-429-000

Unavailable

4

COLLAR, FR. FENDER SETTING

61107-KB5-000

$3.22

4

COLLAR, FR. FENDER SETTING This part replaces 90121-102-000.

61107-KB5-000

$3.22

5

COLLAR (9X12X4.5) (NOT AVAILABLE)

90512-122-700

Unavailable

6

WASHER (6MM)

90525-434-000

Unavailable

7

NUT, FLANGE (6MM)

94050-06000

$0.59

8

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

8

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
