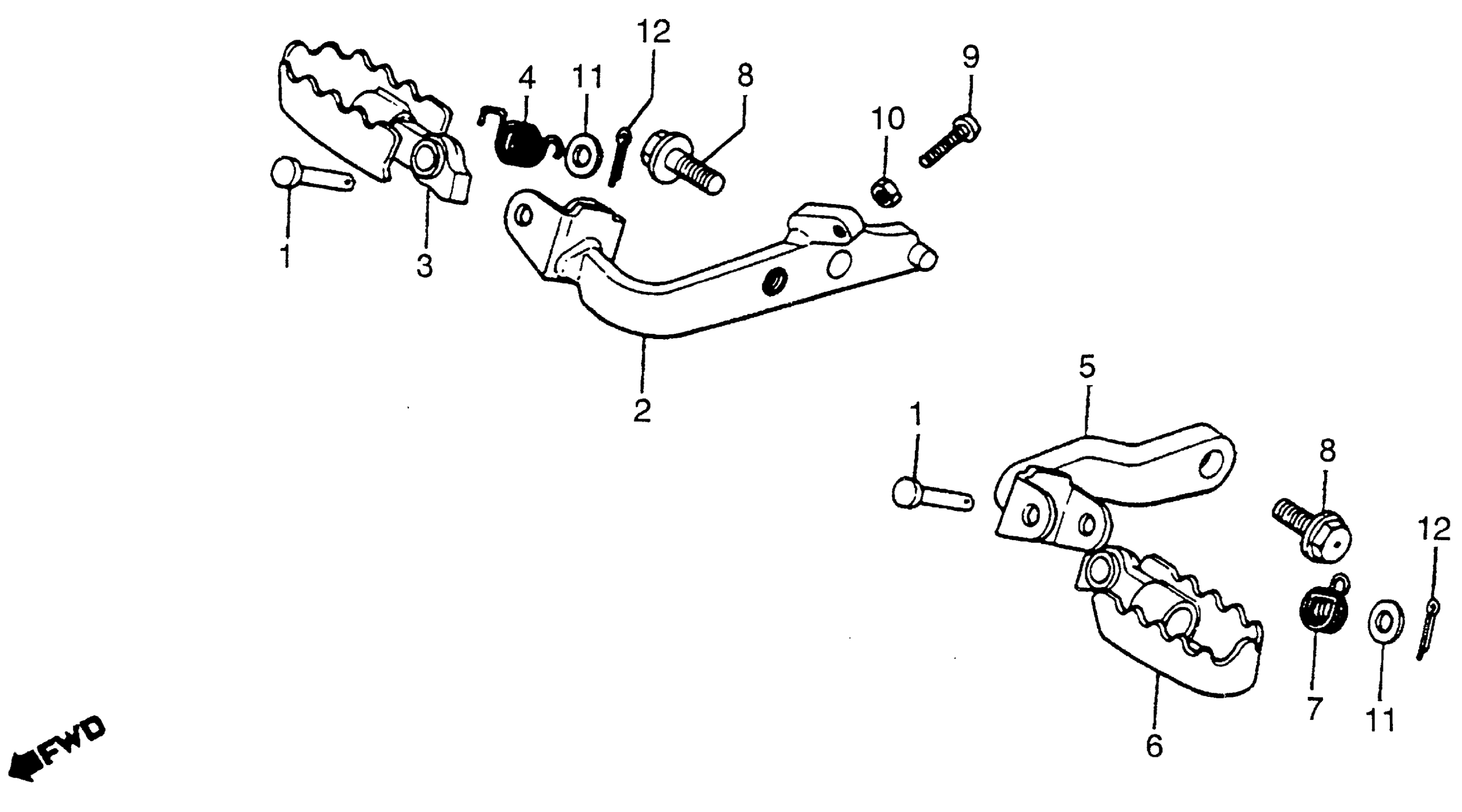

Honda XR500A (80) MOTORCYCLE, JPN, VIN# PE01-5100011 TO PE01-5104098 FOOTPEGS Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

ARM, R. FOOTPEG (NOT AVAILABLE) This part replaces 50615-429-000.

50615-428-000

Unavailable

3

FOOTPEG, R.

50616-428-000

Unavailable

4

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

4

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

5

ARM, L. FOOTPEG

50624-428-000

Unavailable

6

FOOTPEG, L.

50642-428-000

Unavailable

7

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

7

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

8

BOLT, FOOTPEG SETTING

90130-429-000

Unavailable

9

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

WASHER, PLAIN (8MM)

94101-08000

$1.49

12

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

12

PIN, COTTER (1.6X25)

94201-16250

$1.49
