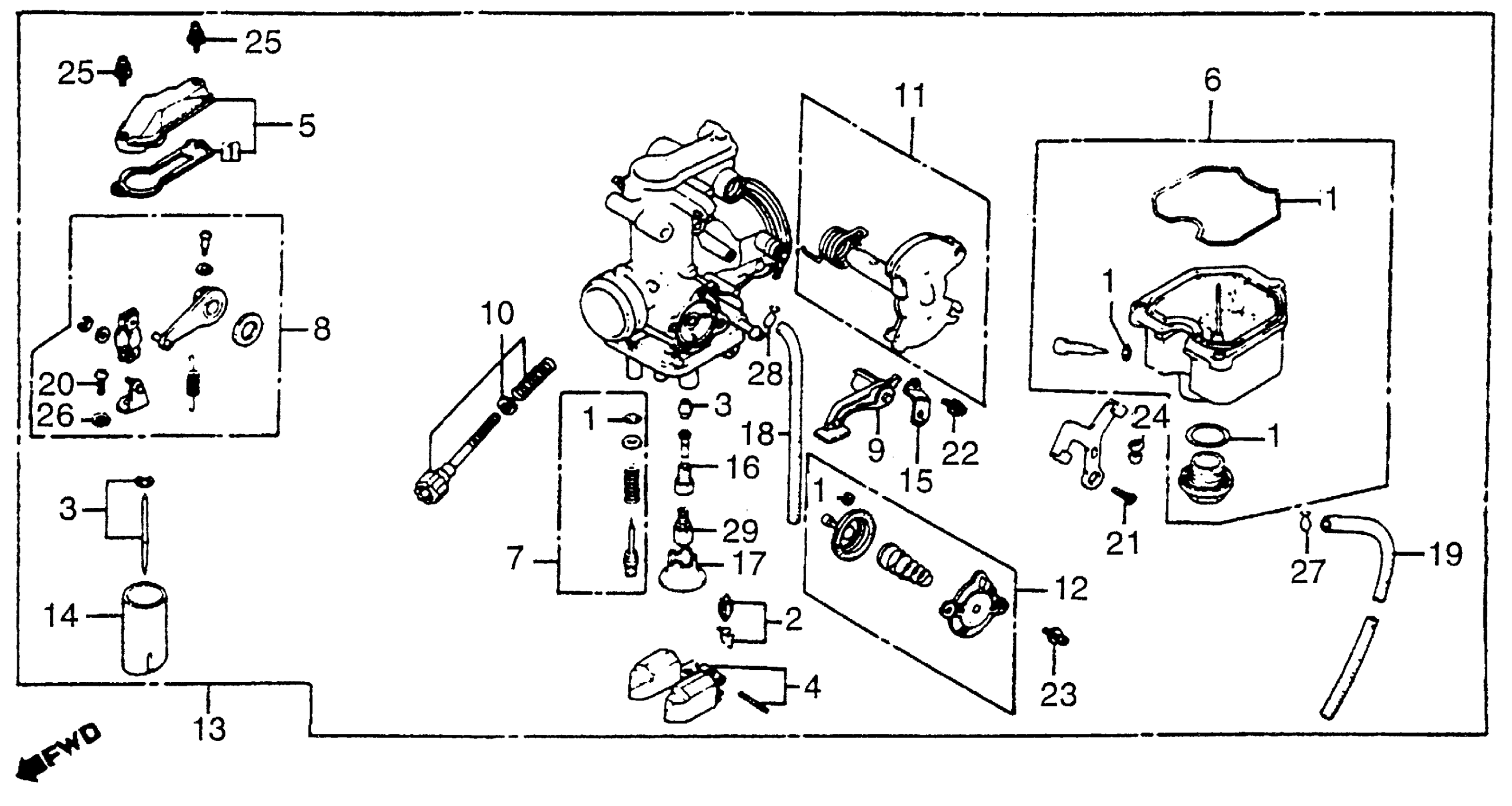

Honda XR500A (80) MOTORCYCLE, JPN, VIN# PE01-5100011 TO PE01-5104098 CARBURETOR 80 Diagram

#

Description
Price

1

GASKET SET

16010-429-305

Unavailable

1

GASKET SET This part replaces 16010-429-671.

16010-429-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-429-771

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-671.

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-771.

16014-KW3-014

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-446-004.

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

7

SCREW SET A

16016-402-004

$20.82

8

ARM SET, LINK

16018-428-004

Unavailable

9

LEVER, CHOKE

16019-429-771

Unavailable

10

SCREW SET B

16028-435-004

Unavailable

11

LINK SET, THROTTLE (NOT AVAILABLE)

16032-429-671

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

13

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-429-771.

16100-429-773

Unavailable

13

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-429-772.

16100-429-773

Unavailable

13

CARBURETOR ASSY. (NOT AVAILABLE)

16100-429-773

Unavailable

14

VALVE, THROTTLE

16111-429-671

Unavailable

15

PLATE, CHOKE LEVER SETTING

16119-429-771

$9.66

16

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-435-004

Unavailable

17

HOLDER, JET

16168-382-014

$9.81

18

TUBE, OVERFLOW (NOT AVAILABLE)

16199-428-771

Unavailable

19

TUBE, RUBBER

16199-435-771

$11.39

20

SCREW, PAN (3X8)

93500-03008-0H

$1.49

21

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

22

SCREW-WASHER (4X10)

93892-04010-08

$1.49

23

SCREW-WASHER (4X12)

93892-04012-08

$1.49

24

SCREW-WASHER (4X16)

93892-04016-08

$1.49

25

SCREW-WASHER (4X18) (NOT AVAILABLE)

93893-04018-08

Unavailable

26

WASHER, SPRING (3MM)

94111-03800

$1.49

27

CLIP, TUBE (B7)

95002-02070

$1.80

28

CLIP, TUBE (B6.5)

95002-02650

$1.49

29

JET, MAIN (#150) | (Optional). This part replaces 99101-357-1500.

99113-GHB-1500

$9.08

29

JET, MAIN (#152) JET, MAIN (#155) | (Optional).

99101-357-1520

$19.84

29

JET, MAIN (#155) JET, MAIN (#158) This part replaces 99101-357-1550.

99113-GHB-1550

$9.41

29

JET, MAIN (#158) JET, MAIN (#172) | (Optional). This part replaces 99101-357-1580.

99113-GHB-1580

$9.44

29

JET, MAIN (#160) | (Optional). This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

29

JET, MAIN (#150) JET, MAIN (#155) | (Optional).

99113-GHB-1500

$9.08

29

JET, MAIN (#155) JET, MAIN (#158)

99113-GHB-1550

$9.41

29

JET, MAIN (#158) JET, MAIN (#160) | (Optional).

99113-GHB-1580

$9.44

29

JET, MAIN (#160) | (Optional).

99113-GHB-1600

$9.44
