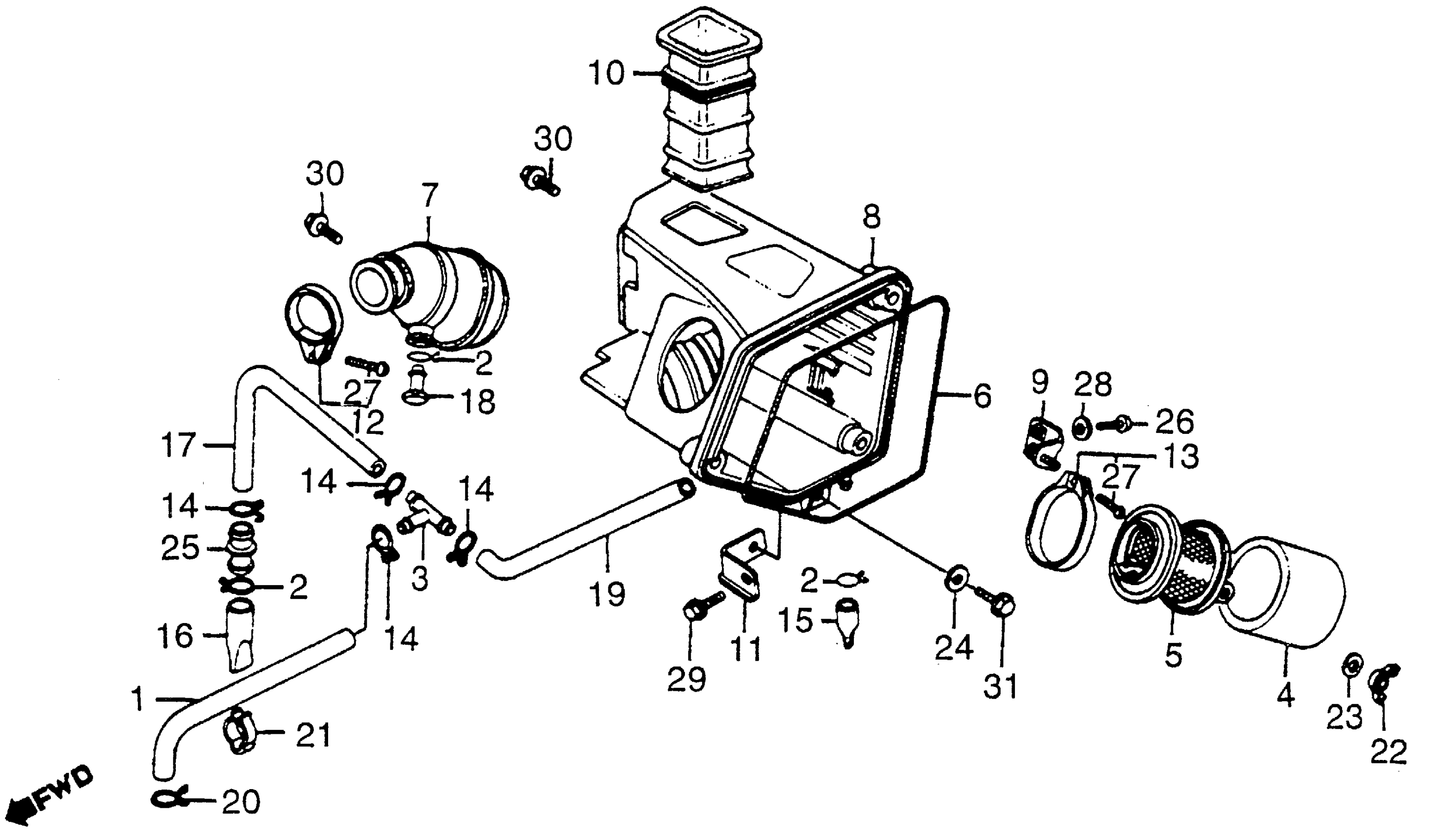

Honda XR500A (80) MOTORCYCLE, JPN, VIN# PE01-5100011 TO PE01-5104098 AIR CLEANER Diagram

#

Description
Price

1

TUBE, BREATHER (NOT AVAILABLE)

15761-428-000

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.80

3

JOINT, BREATHER THREE-WAY

15772-376-000

$17.75

4

ELEMENT A, A/CLNR This part replaces 17213-402-000.

17213-402-730

$10.03

5

HOLDER, ELEMENT

17214-429-000

Unavailable

6

SEAL, AIR CLEANER COVER

17219-413-000

$5.22

7

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) This part replaces 17222-429-000.

17222-429-010

Unavailable

7

TUBE, AIR CLEANER CONNECTING

17222-429-010

Unavailable

8

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-429-000

Unavailable

9

STAY, ELEMENT HOLDER SETTING (NOT AVAILABLE)

17231-429-000

Unavailable

10

DUCT, AIR IN. (NOT AVAILABLE)

17240-429-000

Unavailable

11

STAY, AIR CLEANER HOUSING (NOT AVAILABLE)

17252-429-000

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$5.81

12

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$5.81

12

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-429-000.

95018-60250

$5.81

13

BAND ASSY., ELEMENT SETTING (NOT AVAILABLE) This part replaces 17257-429-000.

17257-429-010

Unavailable

13

BAND ASSY., ELEMENT SETTING (NOT AVAILABLE)

17257-429-010

Unavailable

14

CLIP, BREATHER TUBE

17316-611-000

$8.28

15

TUBE, DRAIN

17358-170-000

$3.49

16

TUBE,DRAIN This part replaces 17358-381-000.

17358-KEJ-900

Unavailable

17

TUBE B, DRAIN (NOT AVAILABLE)

17369-428-000

Unavailable

18

PLUG, BREATHER TUBE

17370-382-870

$3.49

19

TUBE A, BREATHER

17373-428-000

Unavailable

20

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

21

CLIP, PULSER CABLE (NOT AVAILABLE)

32975-428-000

Unavailable

22

WINGNUT, TOOL BOX SETTING

90325-044-000

$3.16

23

WASHER (6MM)

90485-286-000

$1.48

24

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

25

JOINT, TUBE

91463-393-780

$1.64

26

SCREW, PAN (4X12)

93500-04012-0H

$0.83

27

SCREW, PAN (4X25)

93500-04025-0A

$1.71

28

WASHER, PLAIN (4MM)

94101-04800

$0.90

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

29

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

30

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

30

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

31

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

31

BOLT, FLANGE (6X20)

95701-06020-00

$1.61
