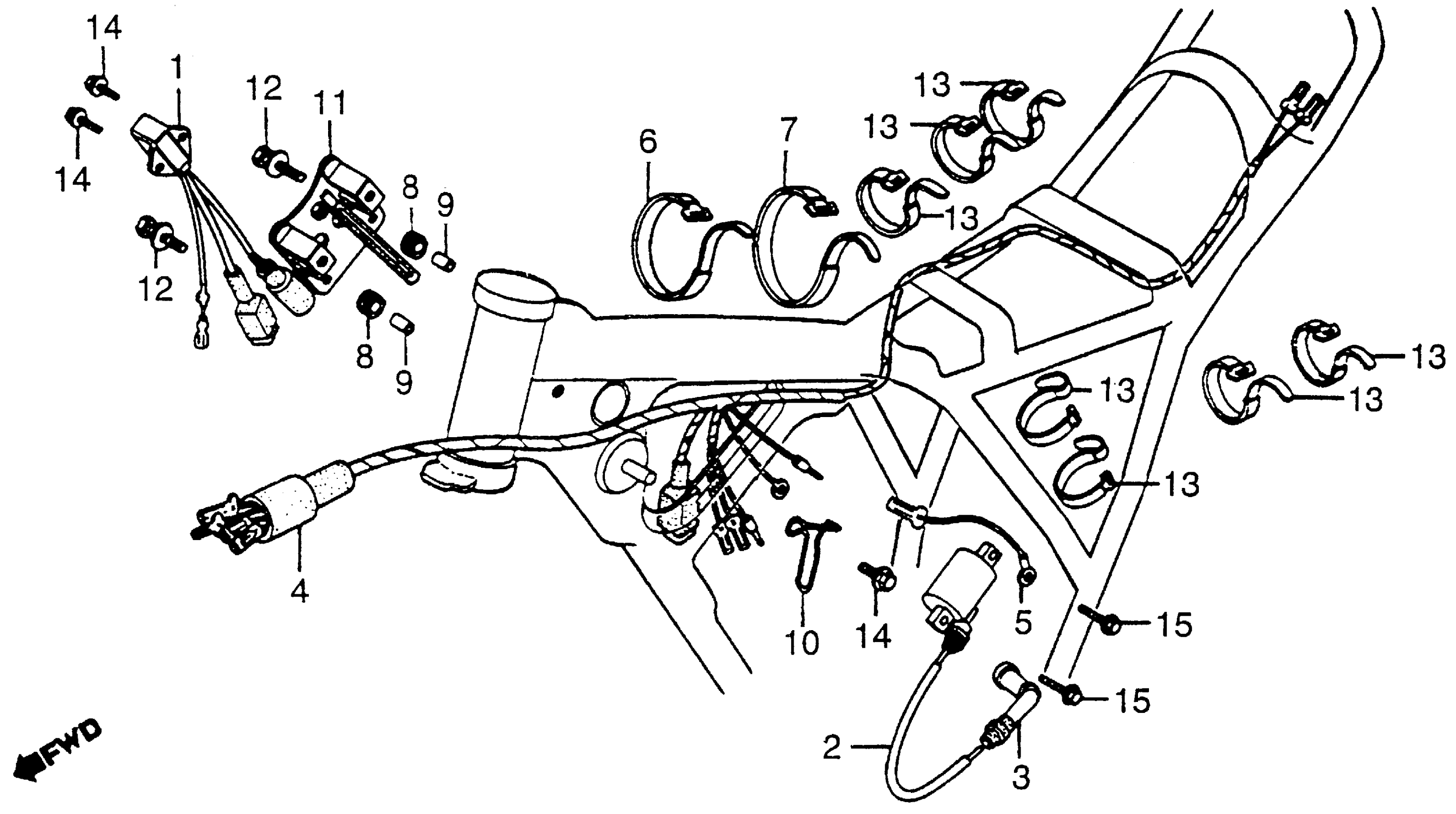

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 WIRE HARNESS + C.D.I. UNIT + IGNITION COIL Diagram

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-429-000

Unavailable

COIL ASSY., IGNITION

30500-383-405

Unavailable

COIL ASSY., IGNITION This part replaces 30500-428-003.

30500-383-405

Unavailable

COIL ASSY., IGNITION This part replaces 30500-428-013.

30500-383-405

Unavailable

CAP ASSY. This part replaces 30700-429-000.

30700-GAR-003

$19.81

WIRE HARNESS (NOT AVAILABLE)

32100-429-000

Unavailable

SUB-WIRE A (NOT AVAILABLE)

32111-429-000

Unavailable

BAND, CABLE

32161-399-000

Unavailable

BAND, CABLE

32161-402-000

Unavailable

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

CLIP, CABLE

45464-428-610

Unavailable

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50300-429-000

Unavailable

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
