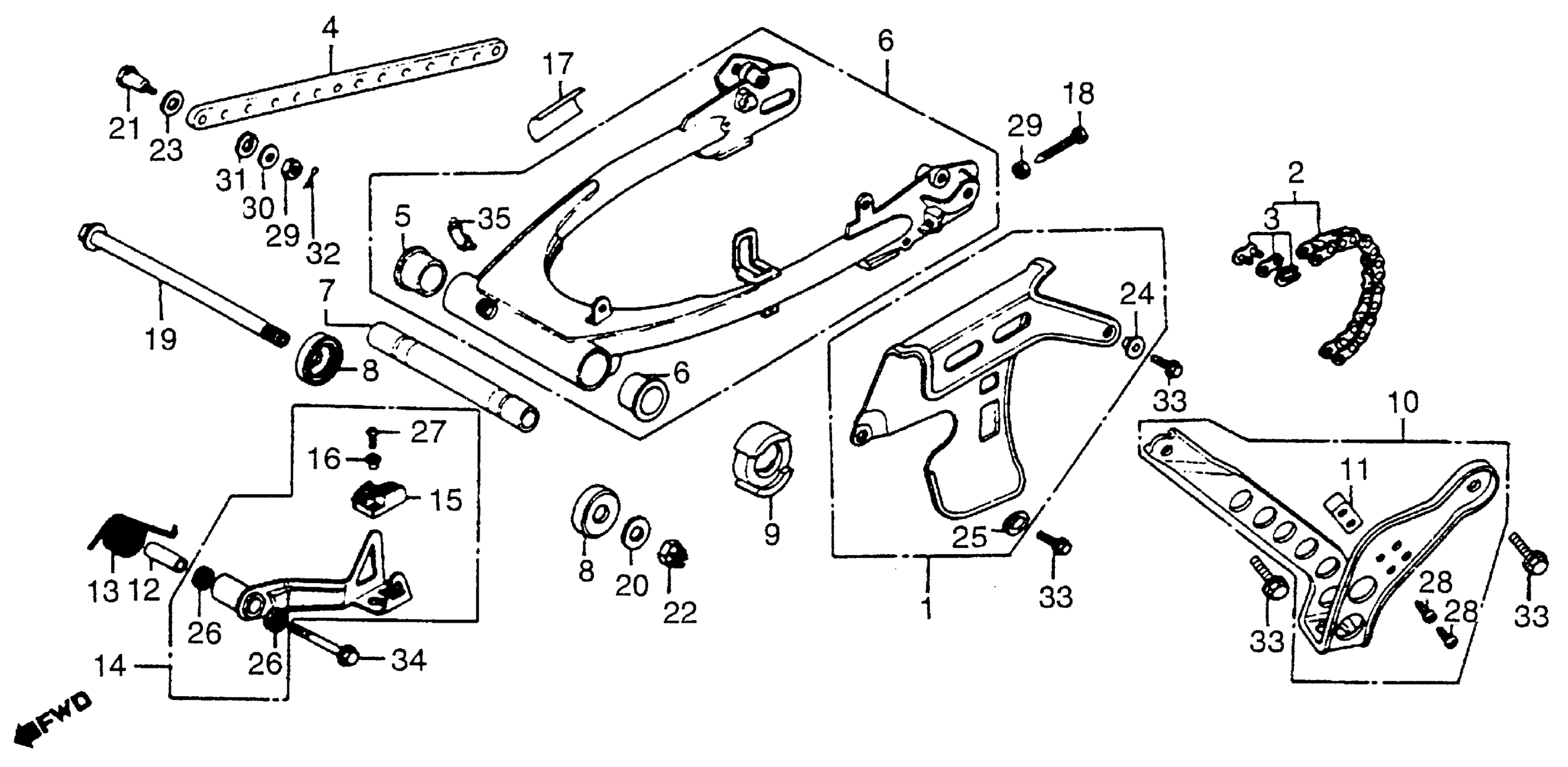

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 SWINGARM + CHAIN GUARD Diagram

#

Description
Price

1

GUARD, DRIVE CHAIN (NOT AVAILABLE)

40510-428-000

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-429-003.

405W3-434-505

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-429-005.

405W3-434-505

Unavailable

2

CHAIN, DRIVE (DID520KD-102L) (DAIDO) (NOT AVAILABLE) | (Optional).

40530-429-811

Unavailable

2

CHAIN, DRIVE (RK520SM-102L) (TAKASAGO) | (Optional).

40530-429-812

Unavailable

3

MASTER LINK (DID520KD) (DAIDO) (NOT AVAILABLE)

40531-429-003

Unavailable

3

MASTER LINK (RK520SM) (TAKASAGO) (NOT AVAILABLE)

40531-429-005

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-429-000

Unavailable

5

BUSH, PIVOT THRUST

52109-357-310

Unavailable

6

SWINGARM ASSY. (NOT AVAILABLE)

52110-429-000

Unavailable

7

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-391-671

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, DRIVE CHAIN (NOT AVAILABLE)

52155-434-000

Unavailable

12

COLLAR, CHAIN TENSIONER This part replaces 52171-434-010.

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER

52171-434-020

Unavailable

13

SPRING, CHAIN TENSIONER

52174-434-000

Unavailable

14

TENSIONER ASSY., CHAIN (NOT AVAILABLE)

52175-434-010

Unavailable

15

SLIPPER, TENSIONER

52178-434-000

Unavailable

16

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

17

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

18

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

19

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-428-000

Unavailable

20

WASHER, PIVOT BOLT (NOT AVAILABLE)

90122-428-000

Unavailable

21

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

22

NUT, LOCK (14MM)

90354-268-000

$6.78

23

WASHER (10MM)

90452-283-000

Unavailable

24

WASHER (6X20)

90512-300-000

$3.08

25

WASHER (6X9)

90513-323-000

$1.84

26

OIL SEAL (14X20X3)

91201-434-003

$4.26

27

SCREW, PAN (5X10)

93500-05010-0A

$1.49

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, SPRING (8MM)

94111-10000

$1.49

32

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

32

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

32

PIN, COTTER (2.0X22)

94201-20220

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

32

PIN, COTTER (2.0X35)

94201-20350

$1.49

32

PIN, COTTER (2.0X22)

94201-29220

$1.49

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

33

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

34

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

34

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

35

FITTING, GREASE (B.76S)

96201-80000

$2.56
