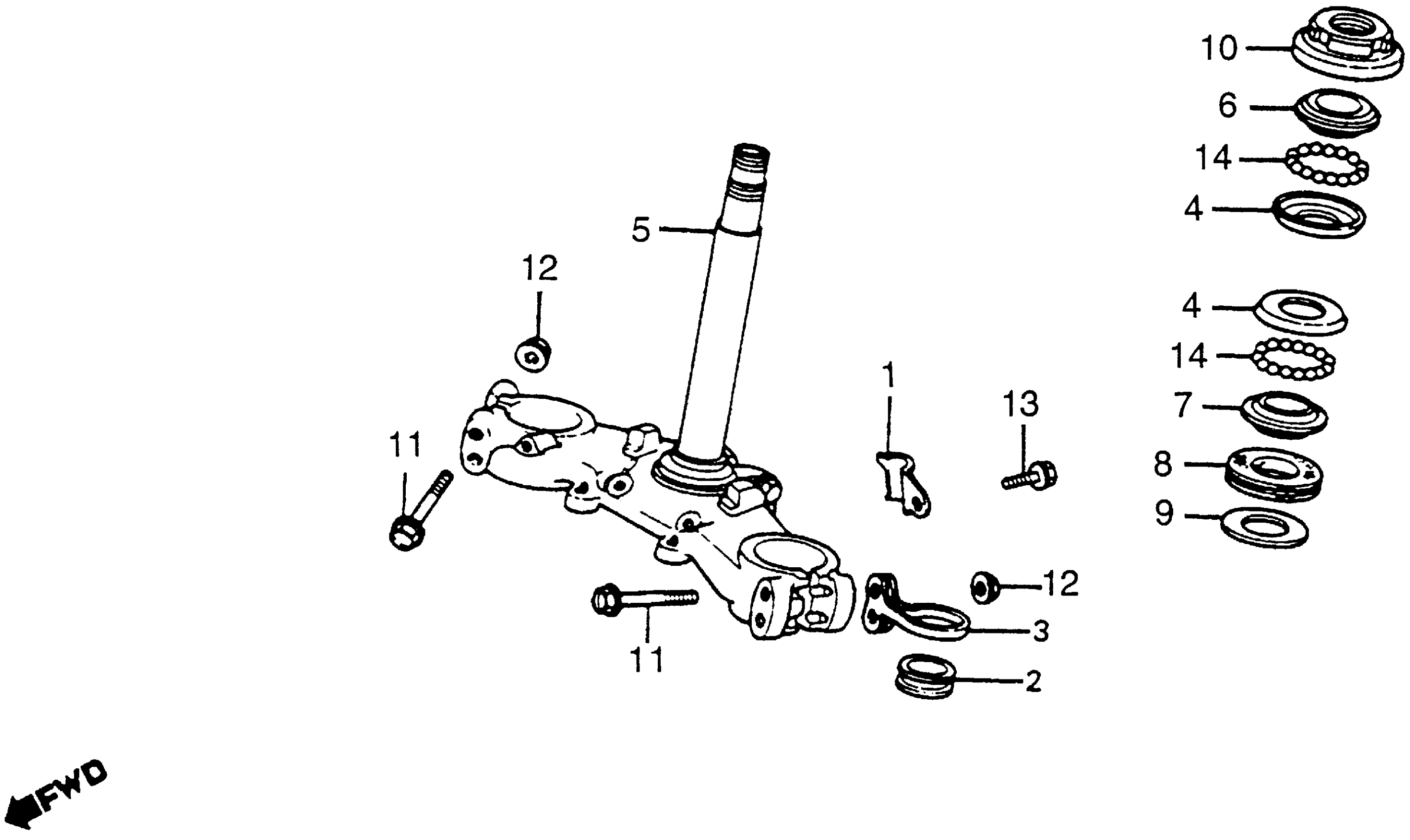

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 STEERING STEM Diagram

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

45465-428-000

Unavailable

GUIDE, CABLE (INNER)

45466-329-000

$2.95

GUIDE B, BRAKE CABLE (NOT AVAILABLE)

45468-428-000

Unavailable

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

STEM, STEERING (NOT AVAILABLE)

53200-429-000

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

BOLT, FLANGE (8X57) (NOT AVAILABLE)

90125-428-000

Unavailable

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.91

NUT, FLANGE (8MM)

94050-08020

$1.91

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
