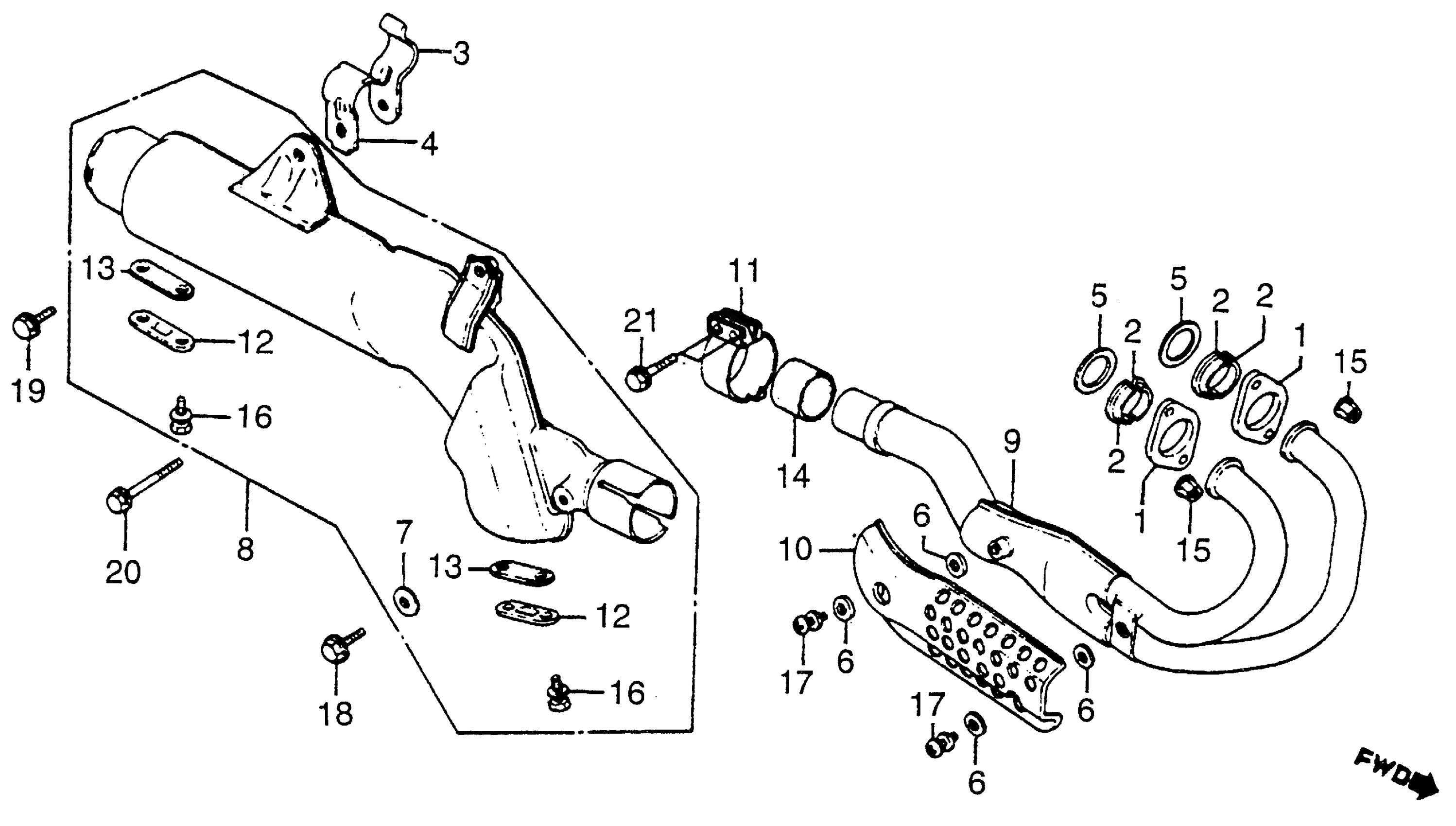

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-429-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$7.66

3

BAND A, MUFFLER (NOT AVAILABLE)

18283-429-000

Unavailable

4

BAND B, MUFFLER (NOT AVAILABLE)

18284-429-000

Unavailable

5

GASKET, EX. PIPE

18291-MN5-650

$3.52

5

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

6

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

6

GASKET, PROTECTOR

18292-MM9-740

$2.81

6

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

7

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

7

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

7

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

8

MUFFLER (NOT AVAILABLE)

18310-429-000

Unavailable

9

PIPE, EX. (NOT AVAILABLE)

18320-429-000

Unavailable

10

PROTECTOR, EX. PIPE (NOT AVAILABLE) This part replaces 18325-429-000.

18325-429-010

Unavailable

10

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-429-010

Unavailable

11

BAND, L. MUFFLER This part replaces 18371-429-000.

18377-MT3-000

$27.65

11

BAND, L. MUFFLER

18377-MT3-000

$27.65

12

LID, MUFFLER This part replaces 18373-429-000.

18373-429-010

$8.22

12

LID, MUFFLER

18373-429-010

$8.22

13

GASKET, MUFFLER LID

18374-MN1-880

$3.90

13

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$3.90

14

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$13.66

14

GASKET, MUFFLER

18391-429-010

$13.66

15

NUT (6X15)

90282-329-000

$4.35

16

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

16

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

Unavailable

16

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

Unavailable

17

SCREW-WASHER (6X12)

93891-06012-00

$1.22

18

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.64

18

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

19

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.70

19

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

20

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.14

20

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

21

BOLT, FLANGE (8X35)

95728-08035-00

Unavailable
