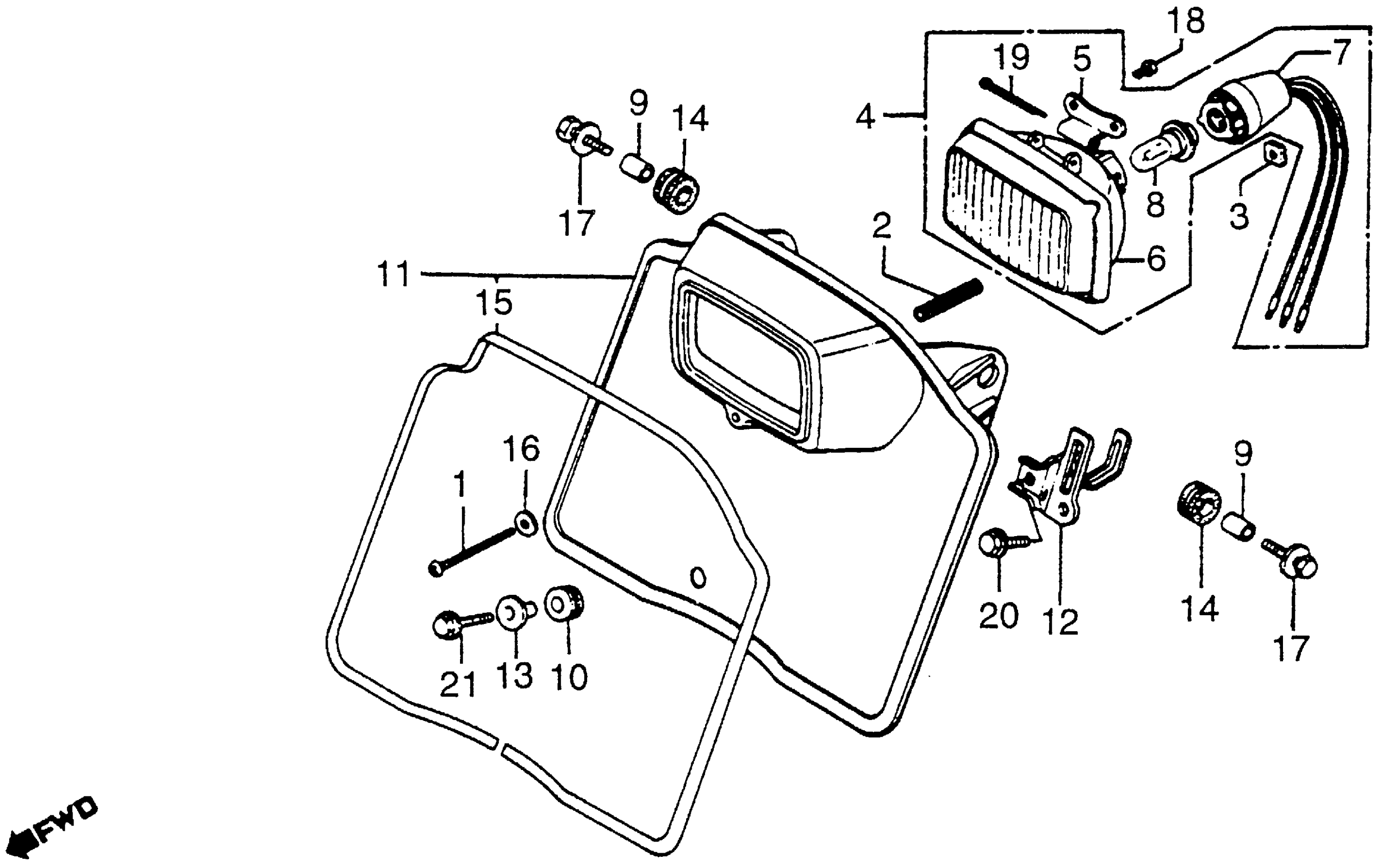

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 HEADLIGHT Diagram

#

Description
Price

1

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33103-434-670

Unavailable

2

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

3

NUT, BEAM ADJ.

33117-041-003

$1.95

4

HEADLIGHT UNIT (NOT AVAILABLE) This part replaces 33120-434-671.

33120-434-672

Unavailable

4

HEADLIGHT UNIT

33120-434-672

Unavailable

5

STAY, HEADLIGHT (NOT AVAILABLE)

33122-434-671

Unavailable

6

LENS, HEADLIGHT (NOT AVAILABLE)

33125-434-671

Unavailable

7

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) This part replaces 33130-434-671.

33130-434-672

Unavailable

7

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-434-672

Unavailable

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

9

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE)

35851-292-000

Unavailable

10

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

11

CASE, HEADLIGHT *NH105* (MAT BLACK) (NOT AVAILABLE)

61300-429-000ZA

Unavailable

12

STAY, HEADLIGHT SETTING (NOT AVAILABLE)

61311-429-000

Unavailable

13

COLLAR, HEADLIGHT SETTING (NOT AVAILABLE)

61317-429-000

Unavailable

14

RUBBER A, RR. FENDER

80105-061-000

$4.01

15

STRIPE, HEADLIGHT CASE (NOT AVAILABLE)

87126-434-300

Unavailable

16

WASHER, BEAM ADJ.

90286-147-670

$2.39

17

BOLT-WASHER (6X20)

93404-06020-00

$1.55

17

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

18

SCREW, PAN (4X8)

93500-04008-0A

$1.49

19

PIN, COTTER (3.0X35)

94201-30350

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

21

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
