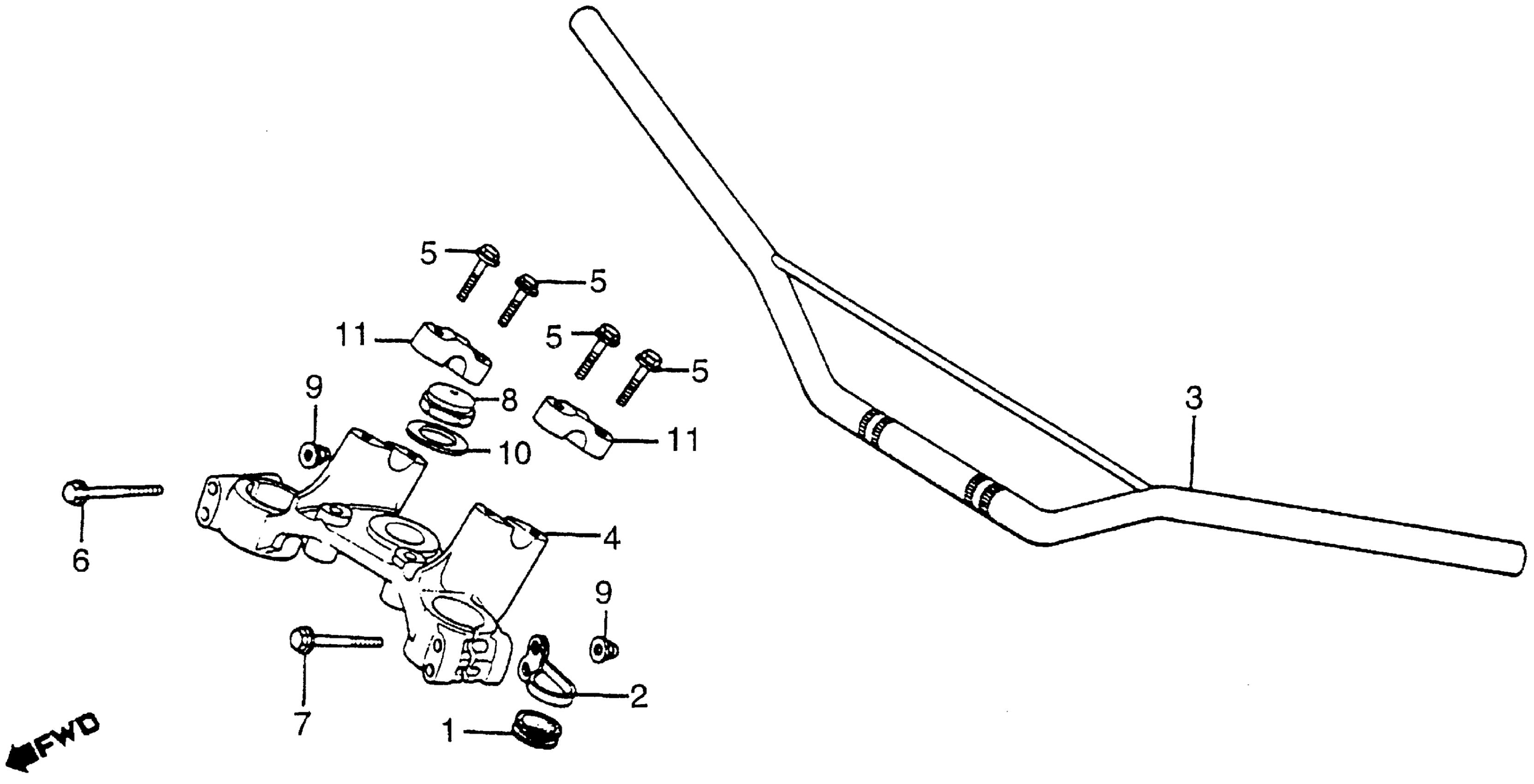

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.95

2

GUIDE B, BRAKE CABLE (NOT AVAILABLE)

45468-428-000

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-428-000

Unavailable

4

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-429-000

Unavailable

5

BOLT, FLANGE (8X36)

90111-362-000

$4.80

6

BOLT, FLANGE (8X65) (NOT AVAILABLE)

90155-429-000

Unavailable

7

BOLT, FLANGE (8X68)

90066-MC7-000

$4.05

7

BOLT, FLANGE This part replaces 90156-429-000.

90066-MC7-000

$4.05

8

NUT, STEERING STEM (NOT AVAILABLE)

90304-428-000

Unavailable

9

NUT, CAP (8MM)

90443-107-000

$2.89

9

NUT, CAP (8MM) This part replaces 90360-429-000.

90443-107-000

$2.89

10

WASHER, STEERING STEM

90503-283-000

$4.37

11

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13
