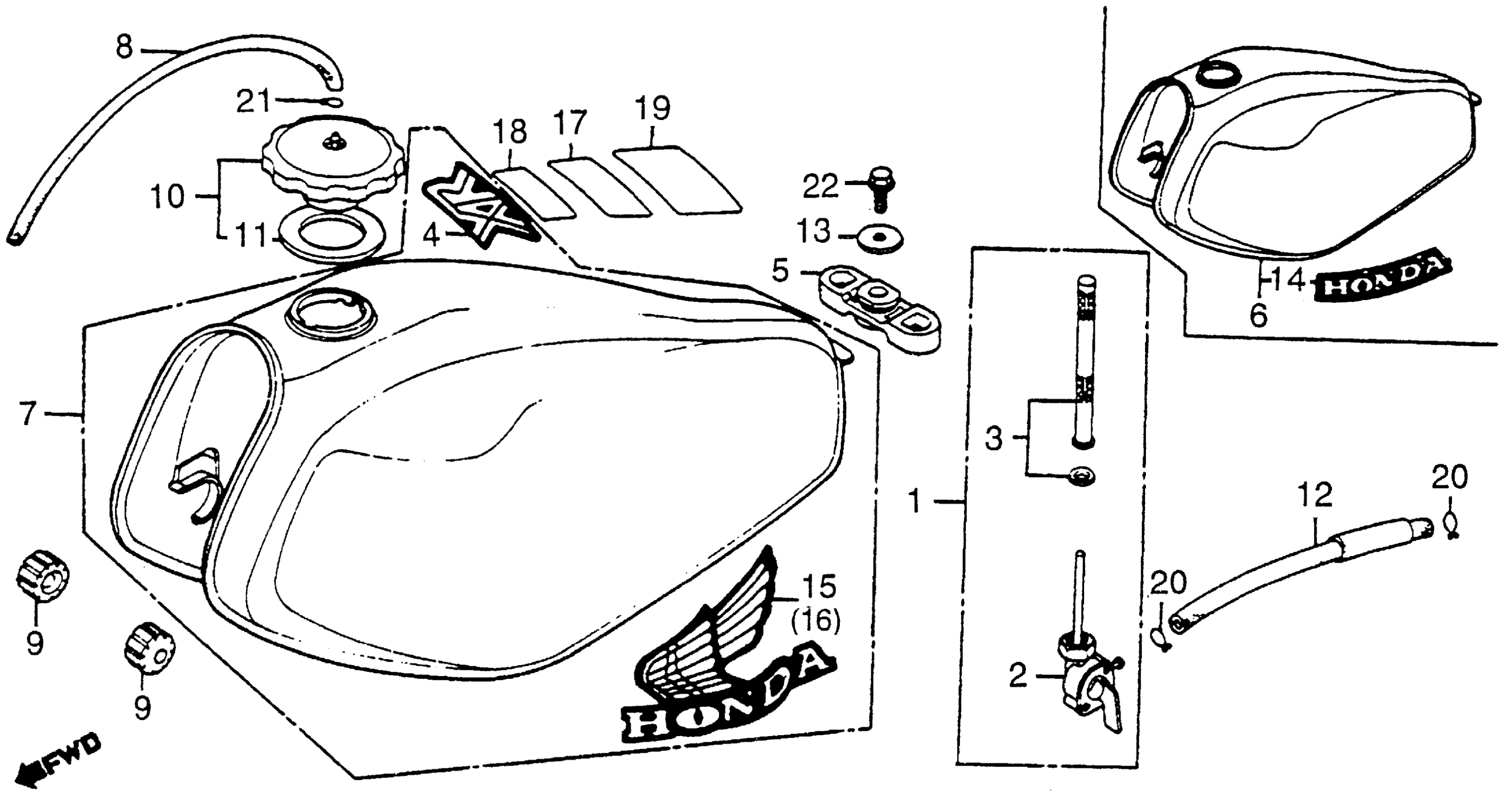

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 FUEL TANK Diagram

PETCOCK ASSY. (NOT AVAILABLE)

16950-434-015

Unavailable

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-434-005.

16950-434-015

Unavailable

BODY, PETCOCK (NOT AVAILABLE)

16951-434-015

Unavailable

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-434-005.

16951-434-015

Unavailable

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-434-005

Unavailable

RUBBER, RR. FUEL TANK SETTING (NOT AVAILABLE)

17509-429-000

Unavailable

TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17520-429-000ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

RUBBER, FR. FUEL TANK

17611-MG2-000

$11.43

CUSHION, FR. FUEL TANK This part replaces 17611-429-000.

17611-MG2-000

$11.43

CAP, FUEL FILLER (NOT AVAILABLE)

17620-434-010

Unavailable

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

GASKET This part replaces 17631-434-310.

17631-899-010

$6.32

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

TUBE, FUEL (NOT AVAILABLE)

17681-429-000

Unavailable

WASHER, FR. COVER SETTING

64347-001-000

$2.10

EMBLEM, FUEL TANK (A.M.) (NOT AVAILABLE)

87123-429-300

Unavailable

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)

87510-147-670ZB

Unavailable

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
