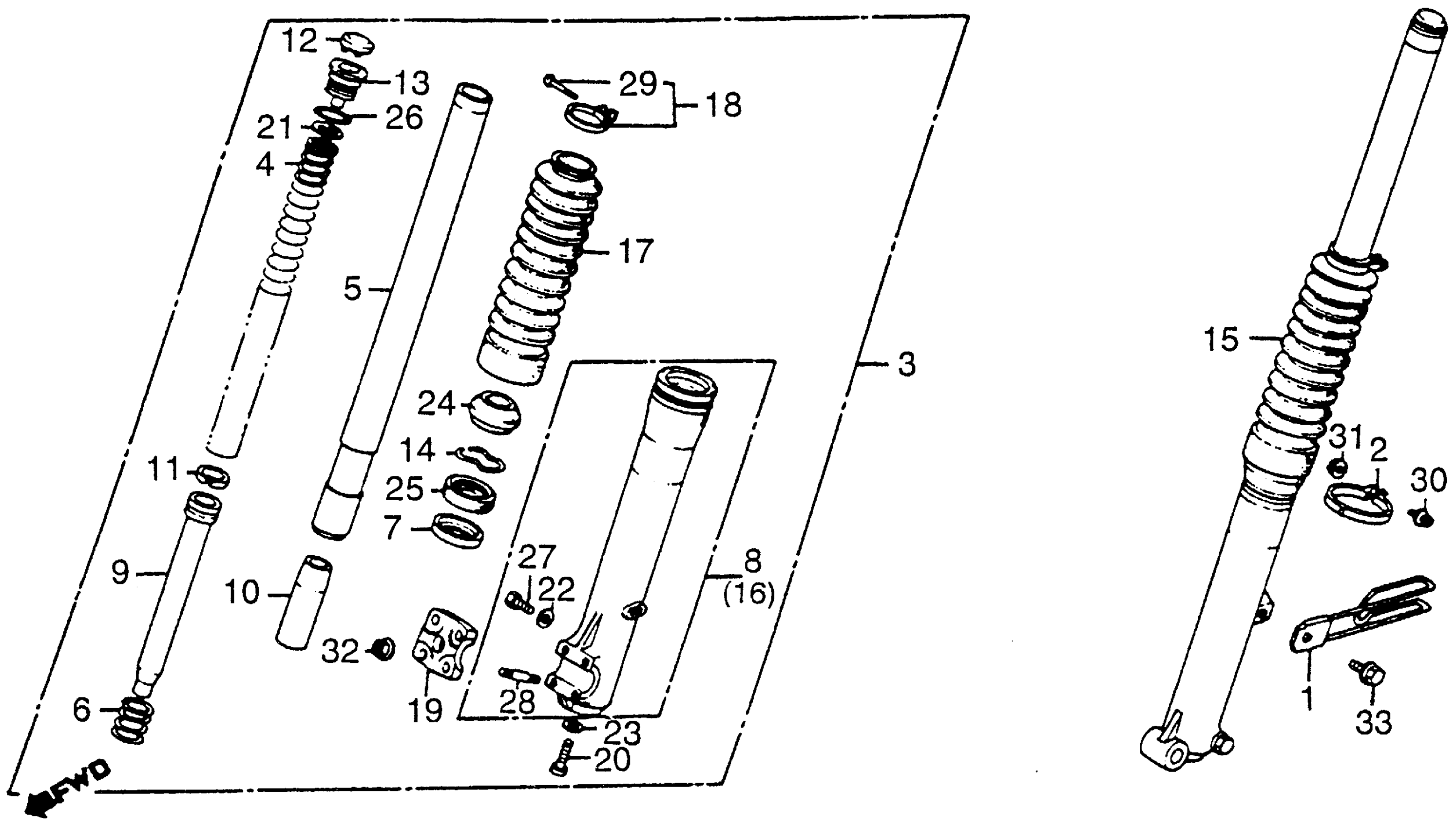

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-429-000

Unavailable

2

GUIDE C, BRAKE CABLE (NOT AVAILABLE)

45469-434-000

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-429-000

Unavailable

4

SPRING, FR. FORK

51401-434-003

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-429-000

Unavailable

6

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

7

RING, BACK-UP (NOT AVAILABLE)

51412-429-003

Unavailable

8

CASE, R. (LOWER) (NOT AVAILABLE)

51420-429-003

Unavailable

9

PIPE, SEAT (NOT AVAILABLE)

51430-434-003

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

11

RING, PISTON

51437-400-771

$6.30

12

CAP, FORK PIPE

51449-428-003

Unavailable

13

BOLT, FR. FORK

51454-422-003

Unavailable

13

BOLT, FR. FORK (NOT AVAILABLE)

51454-428-003

Unavailable

14

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

14

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

15

SHOCK ABSORBER ASSY., L. FR.

51500-429-000

Unavailable

16

CASE, L. (LOWER)

51520-429-003

Unavailable

17

BOOT, FR. FORK

51611-429-003

Unavailable

18

BAND, FR. FORK BOOT

51612-434-000

$12.06

19

HOLDER, AXLE (NOT AVAILABLE)

51634-429-000

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

WASHER, FR. FORK (NOT AVAILABLE)

90504-425-003

Unavailable

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

DUST SEAL (35MM) This part replaces 91254-400-771.

91254-434-003

$13.96

24

DUST SEAL (35MM)

91254-434-003

$13.96

25

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

26

O-RING (25.7X2.8)

91356-428-003

$3.60

27

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

28

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

28

BOLT, STUD (6X25)

92900-06025-0E

$1.49

29

SCREW, PAN (3X25)

93500-03025-0A

$1.49

30

SCREW-WASHER (4X25) (NOT AVAILABLE)

93891-04025-10

Unavailable

31

NUT, FLANGE (4MM)

94050-04000

$1.49

32

NUT, FLANGE (6MM)

94050-06000

$1.49

33

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

33

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
