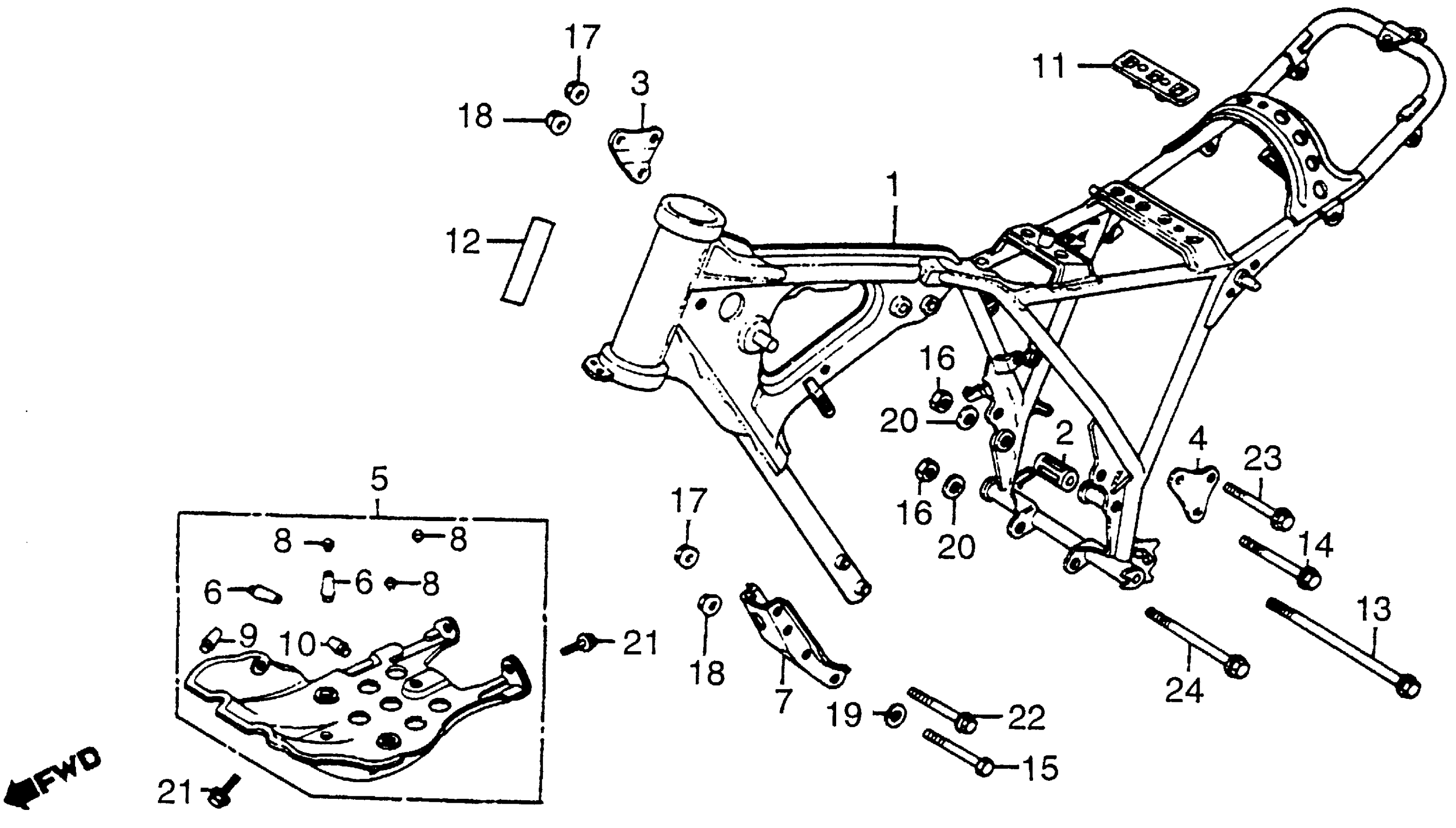

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK)

50100-429-670ZA

Unavailable

2

COLLAR, ENGINE HANGER

50130-429-000

Unavailable

3

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50138-429-000ZA

Unavailable

4

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50139-429-000ZA

Unavailable

5

PLATE, SKID (NOT AVAILABLE)

50351-429-770

Unavailable

5

PLATE, SKID (NOT AVAILABLE) This part replaces 50351-429-000.

50351-429-770

Unavailable

6

RUBBER A, STOPPER

50352-434-000

$5.17

7

HANGER, FR. ENGINE *NH1* (BLACK) (NOT AVAILABLE)

50353-429-000ZA

Unavailable

8

RUBBER B, STOPPER

50354-428-000

$2.62

9

RUBBER B, STOPPER

50354-434-000

$4.97

10

RUBBER C, STOPPER

50355-434-000

$4.13

11

RUBBER C, SEAT (NOT AVAILABLE)

77206-429-000

Unavailable

12

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

13

BOLT, FLANGE (12X240) (NOT AVAILABLE)

90104-429-000

Unavailable

14

BOLT, FLANGE (10X73) (NOT AVAILABLE)

90157-429-000

Unavailable

15

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$2.75

15

BOLT, HEX. (10X60)

92201-10060-0A

$2.75

16

NUT, HEX. (12MM)

94001-12000-0S

$1.58

17

NUT, FLANGE (8MM)

94050-08000

$0.86

18

NUT, FLANGE (10MM)

94050-10000

$1.41

19

WASHER, PLAIN (10MM)

94101-10000

Unavailable

20

WASHER, PLAIN (12MM)

94101-12000

$1.12

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

22

BOLT, FLANGE (8X60) This part replaces 95800-08060-00.

95801-08060-00

$2.38

23

BOLT, FLANGE (8X65) This part replaces 95800-08065-00.

95801-08065-00

$2.62

23

BOLT, FLANGE (8X65)

95801-08065-00

$2.62

24

BOLT, FLANGE (12X125) (NOT AVAILABLE)

95800-12125-00

Unavailable
