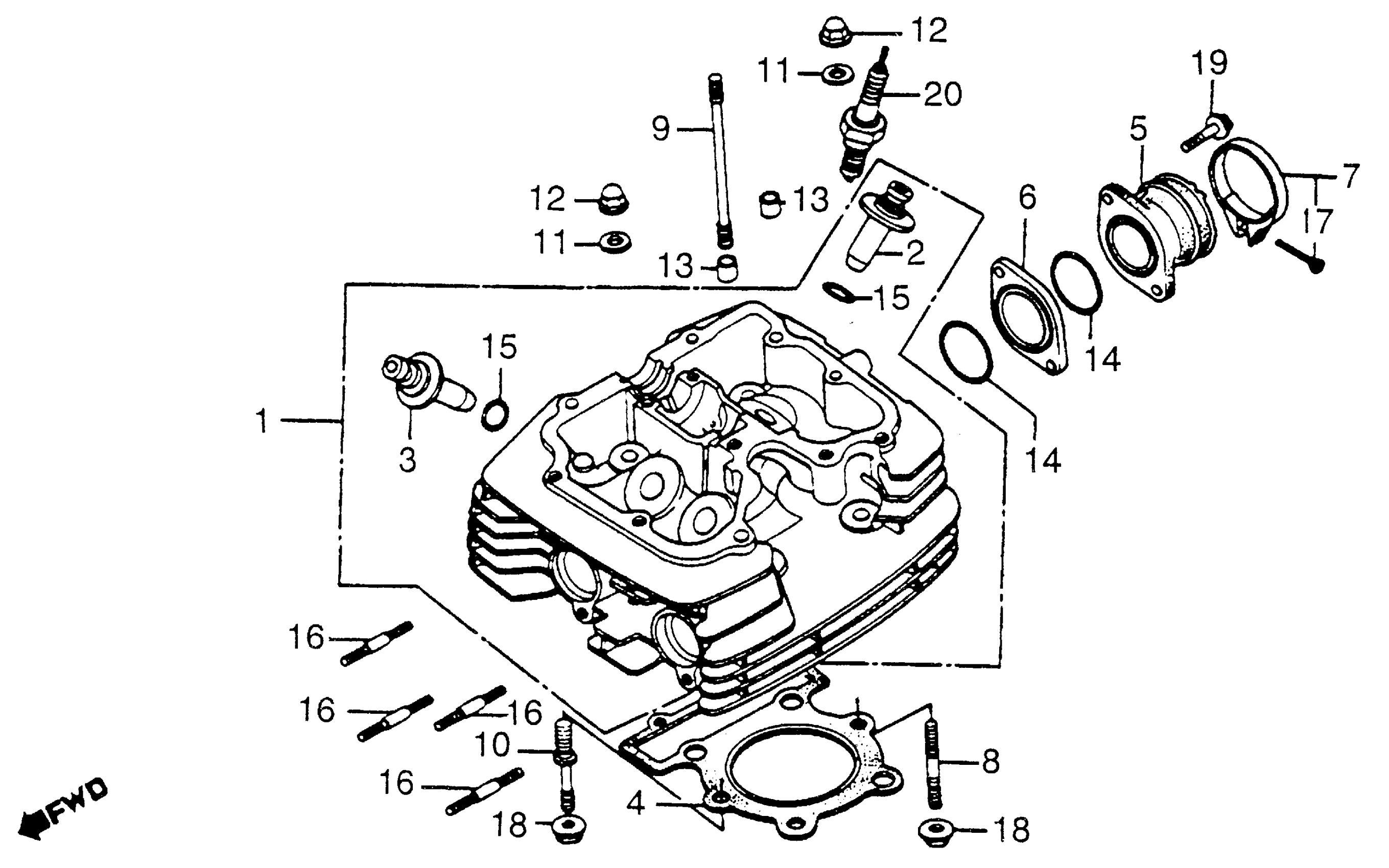

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-429-305.

12200-429-315

Unavailable

1

CYLINDER HEAD (NOT AVAILABLE)

12200-429-315

Unavailable

2

GUIDE, VALVE (NOT AVAILABLE)

12231-429-305

Unavailable

3

GUIDE, VALVE (NOT AVAILABLE) This part replaces 12241-429-305.

12231-429-305

Unavailable

4

GASKET, CYLINDER HEAD

06130-MC4-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-MC4-004.

06130-MC4-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-429-000.

06130-MC4-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-429-004.

06130-MC4-000

Unavailable

5

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-429-000

Unavailable

6

INSULATOR, HEAT (NOT AVAILABLE) This part replaces 16215-429-000.

16215-429-306

Unavailable

6

INSULATOR, HEAT (NOT AVAILABLE)

16215-429-306

Unavailable

7

BAND, INSULATOR

16219-ME9-000

$10.37

7

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$10.37

8

BOLT, STUD (8x50MM) This part replaces 90003-428-000.

90064-634-000

Unavailable

8

BOLT, STUD (8x50MM)

90064-634-000

Unavailable

9

BOLT, STUD (7MM) (NOT AVAILABLE)

90085-429-000

Unavailable

10

BOLT, STUD (8MM) (NOT AVAILABLE)

90087-429-000

Unavailable

11

WASHER (8MM)

90441-429-000

Unavailable

12

NUT, CAP (8MM)

90443-107-000

$2.89

13

PIN, DOWEL (8X10)

91103-429-000

$2.56

14

O-RING (40X2.4)

91271-429-000

Unavailable

15

O-RING (10X1.6)

91301-200-000

$3.01

16

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

16

BOLT, STUD (6X25)

92900-06025-0E

$1.49

17

SCREW, PAN (5X25)

93500-05025-0G

$1.49

18

NUT-WASHER (8MM)

94071-08080

$1.49

19

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

19

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

20

SPARK PLUG (D7EA) (NGK) | (Optional).

98069-57717

$2.44

20

SPARK PLUG (X22ES-U) (DENSO) | (Optional).

98069-57727

Unavailable

20

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

20

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20

20

SPARK PLUG (D9EA) (NGK) | (Optional).

98069-59717

$2.44

20

SPARK PLUG (X27ES-U) (DENSO) | (Optional).

98069-59727

Unavailable
