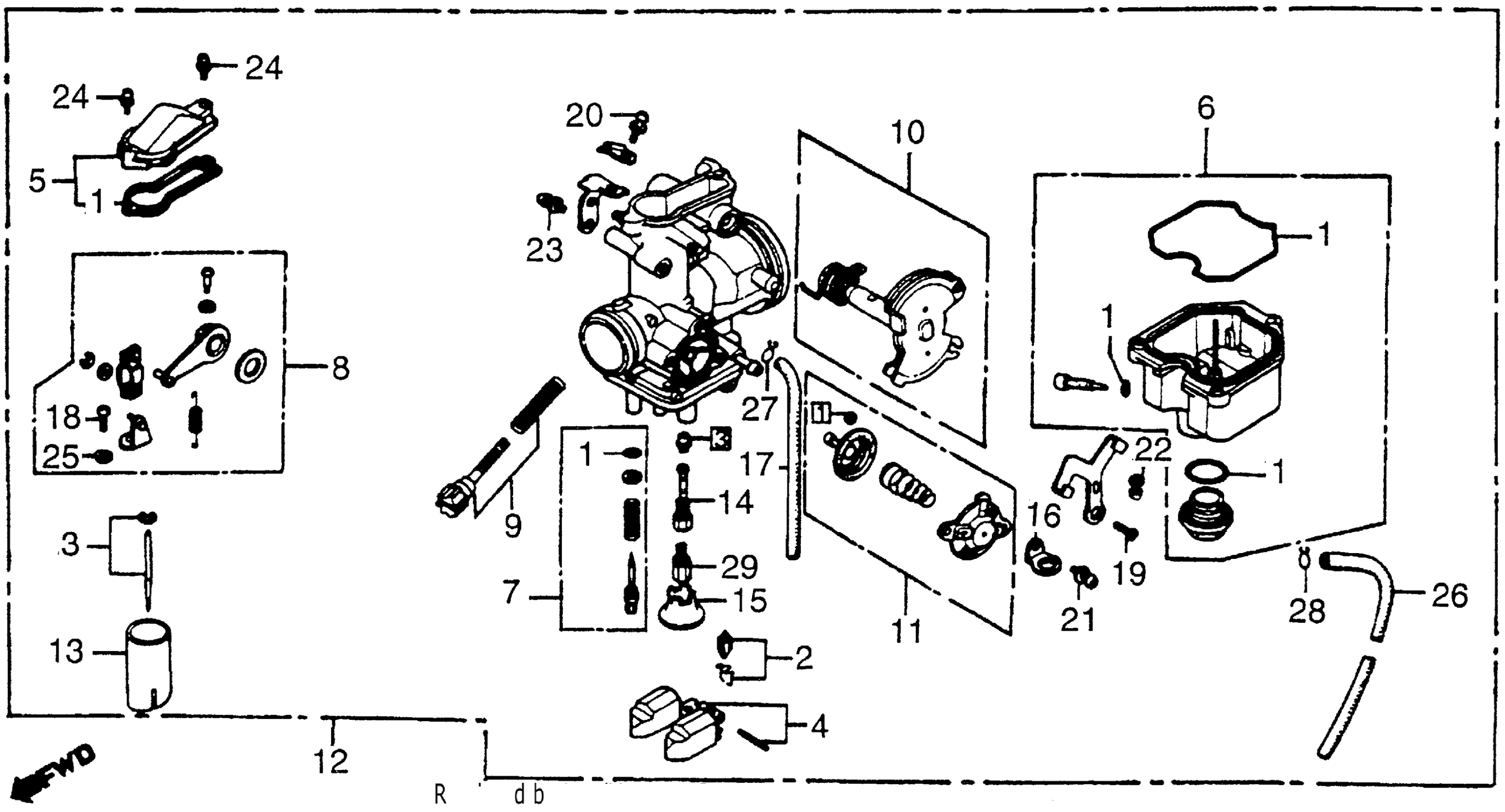

Honda XR500A (79) MOTORCYCLE, JPN, VIN# PE01-5000050 TO PE01-5008833 CARBURETOR 79 Diagram

#

Description
Price

1

GASKET SET

16010-429-305

Unavailable

1

GASKET SET This part replaces 16010-429-671.

16010-429-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET

16012-429-671

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-671.

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-771.

16014-KW3-014

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-446-004.

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

7

SCREW SET A

16016-402-004

$20.82

8

ARM SET, LINK

16018-428-004

Unavailable

9

SCREW SET B This part replaces 16028-429-671.

16028-435-004

Unavailable

9

SCREW SET B

16028-435-004

Unavailable

10

LINK SET, THROTTLE (NOT AVAILABLE)

16032-429-671

Unavailable

11

VALVE SET, AIR CUT This part replaces 16048-429-671.

16048-443-901

Unavailable

11

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-429-673.

16100-429-674

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-429-674

Unavailable

13

VALVE, THROTTLE

16111-429-671

Unavailable

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-429-671

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

BINDER

16179-428-671

Unavailable

17

TUBE, AIR VENT This part replaces 16199-428-671.

16199-428-405

$3.10

18

SCREW, PAN (3X8)

93500-03008-0H

$1.49

19

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

20

SCREW-WASHER (4X8)

93892-04008-08

$1.49

21

SCREW-WASHER (4X12)

93892-04012-08

$1.49

22

SCREW-WASHER (4X16)

93892-04016-08

$1.49

23

SCREW-WASHER (5X10)

93892-05010-08

$1.49

24

SCREW-WASHER (4X18) (NOT AVAILABLE)

93893-04018-08

Unavailable

25

WASHER, SPRING (3MM)

94111-03800

$1.49

26

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

27

CLIP, TUBE (B7)

95002-02070

$1.80

28

CLIP, TUBE (B6.5)

95002-02650

$1.49

29

JET SET, MAIN (#152) (NOT AVAILABLE) | (Optional).

16110-429-670

Unavailable

29

JET, MAIN (#158) JET, MAIN (#172) This part replaces 99101-357-1580.

99113-GHB-1580

$9.44

29

JET, MAIN (#158)

99113-GHB-1580

$9.44
