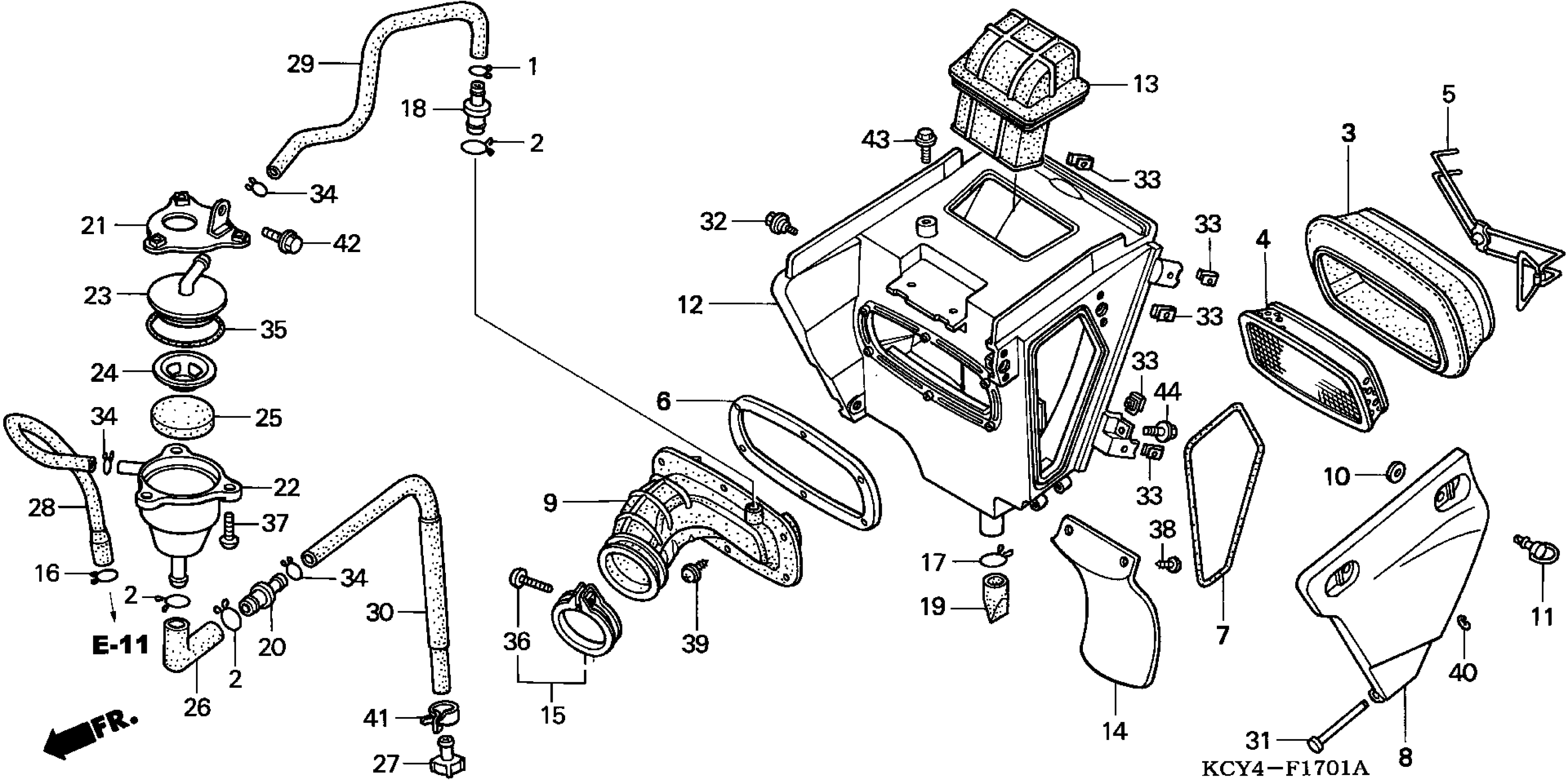

Honda XR400RAC/A (98) MOTORCYCLE, JPN, VIN# JH2NE031-WK300001 AIR CLEANER (AC) Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

3

ELEMENT, AIR CLEANER This part replaces 17213-KF0-000.

17213-MN1-670

$29.00

3

ELEMENT, AIR CLEANER

17213-MN1-670

$29.00

4

HOLDER, ELEMENT

17214-MN1-670

$66.09

5

SPRING, ELEMENT HOLDING

17216-KCZ-000

Unavailable

6

PLATE, HOLDER

17217-KCY-670

Unavailable

7

SEAL, AIR CLEANER COVER

17219-KCZ-000

Unavailable

8

LID, AIR CLEANER MAINTENANCE *NH238R* (SOLID MAX GRAY) (NOT AVAILABLE)

17220-KCY-671ZA

Unavailable

9

TUBE, AIR CLEANER CONNECTING

17222-KCY-770

Unavailable

10

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.49

11

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.99

11

STUD (6X21)

17225-KN5-671

$6.99

12

HOUSING, AIR CLEANER *NH238R* (SOLID MAX GRAY) (NOT AVAILABLE)

17230-KCY-671ZA

Unavailable

13

DUCT, IN. This part replaces 17240-KCZ-000.

17240-KCZ-010

Unavailable

13

DUCT, IN.

17240-KCZ-010

Unavailable

14

SPLASH GUARD, AIR CLEANER

17245-KCY-670

$24.89

15

BAND, AIR CLEANER CONNECTING TUBE

17255-KCY-670

Unavailable

16

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

17

CLIP, BREATHER TUBE

17316-611-000

$9.23

18

JOINT, BREATHER TUBE

17359-MAG-L00

$5.26

19

TUBE, DRAIN

17359-KK0-000

$7.30

20

JOINT, BREATHER TUBE

17359-428-000

$5.46

21

STAY, BREATHER (NOT AVAILABLE)

17361-KS5-700

Unavailable

22

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

23

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

24

HOLDER, ELEMENT

17363-419-670

Unavailable

25

ELEMENT, CONDENSATION

17364-419-000

Unavailable

26

TUBE A, DRAIN

17366-KG0-000

Unavailable

27

PLUG, BREATHER TUBE

17370-419-700

$3.74

28

TUBE A, BREATHER (NOT AVAILABLE)

17371-KCY-770

Unavailable

29

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

17372-KCY-770

Unavailable

30

TUBE, BREATHER DRAIN

17373-KCY-770

Unavailable

31

PIN, VISOR HINGE

64308-GG2-000

$8.07

32

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

33

NUT, CLIP (6MM)

90311-MT3-000

$5.78

34

CLIP, TUBE (B12.5)

90651-MK3-780

$1.54

35

O-RING (47X1.9)

91305-419-670

Unavailable

36

SCREW, PAN (4X25)

93500-04025-0G

$1.49

37

SCREW-WASHER (4X16)

93891-04016-07

$1.49

38

SCREW, TAPPING (5X16)

93903-25310

$1.49

39

SCREW, TAPPING (5X10) (PO)

93913-25180

$1.49

40

E-RING (3MM)

94540-03010

$1.49

41

CLAMP, TUBE (D12.5)

95002-41250-04

$2.52

42

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

43

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

44

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
