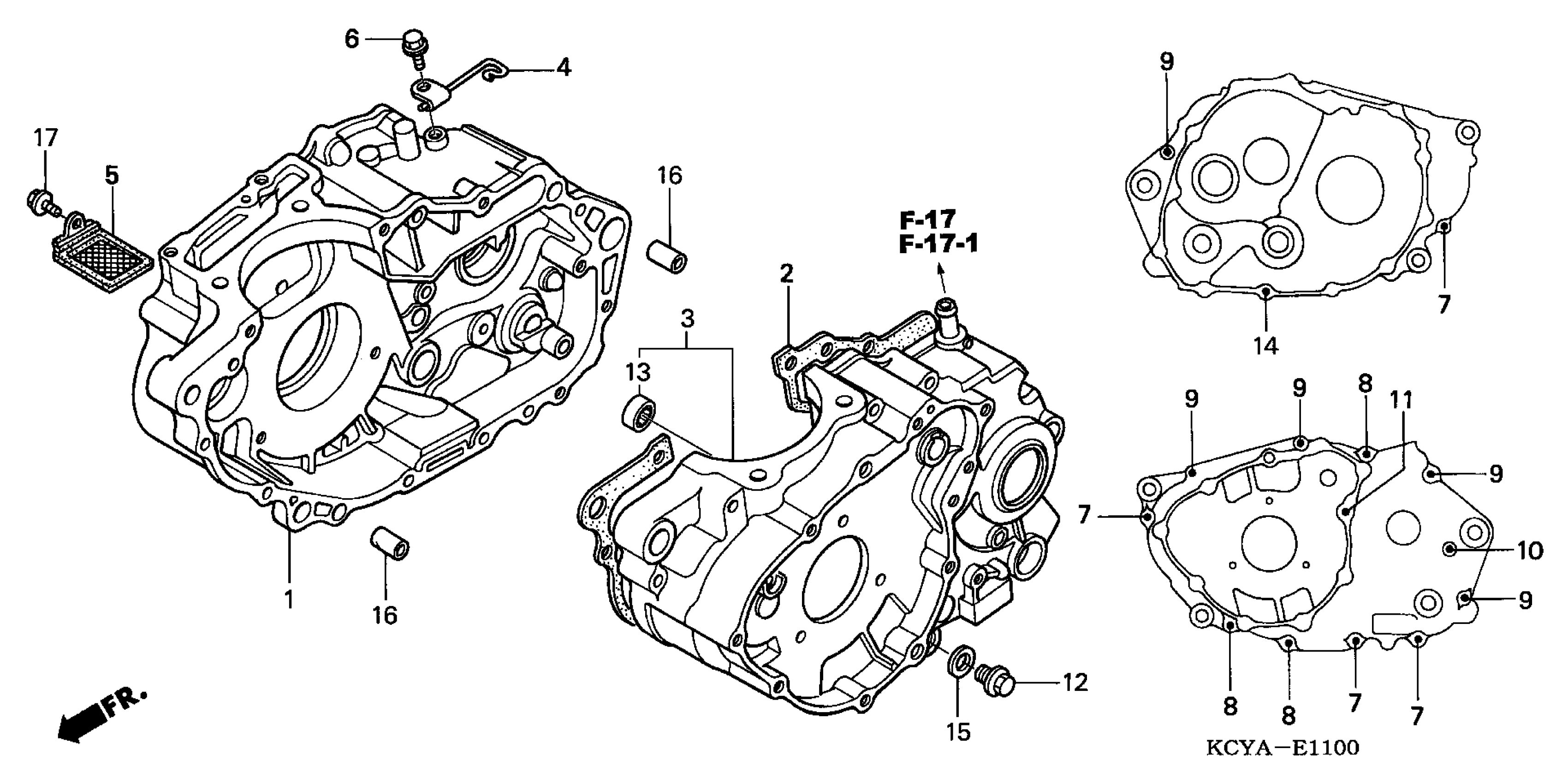

Honda XR400RA/A (04) MOTORCYCLE, JPN, VIN# JH2NE030-4K950001 TO JH2NE030-4K959999 CRANKCASE Diagram

CRANKCASE, R.

11100-KCY-670

Unavailable

GASKET, CRANKCASE

11191-KCY-670

$30.29

CRANKCASE, L. | Use up to Engine SN 2720134 This part replaces 11200-KCY-670.

11210-KCY-305

Unavailable

CRANKCASE, L. | Use from Engine SN 2720135

11200-KCY-671

Unavailable

CRANKCASE, L. | Use up to Engine SN 2720134

11210-KCY-305

Unavailable

CLAMP A, TUBE

11355-KCY-670

Unavailable

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

BOLT, SPECIAL STUD

90011-KCY-670

$10.89

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

BOLT, STUD (6X25)

92900-06025-0B

$1.73

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
