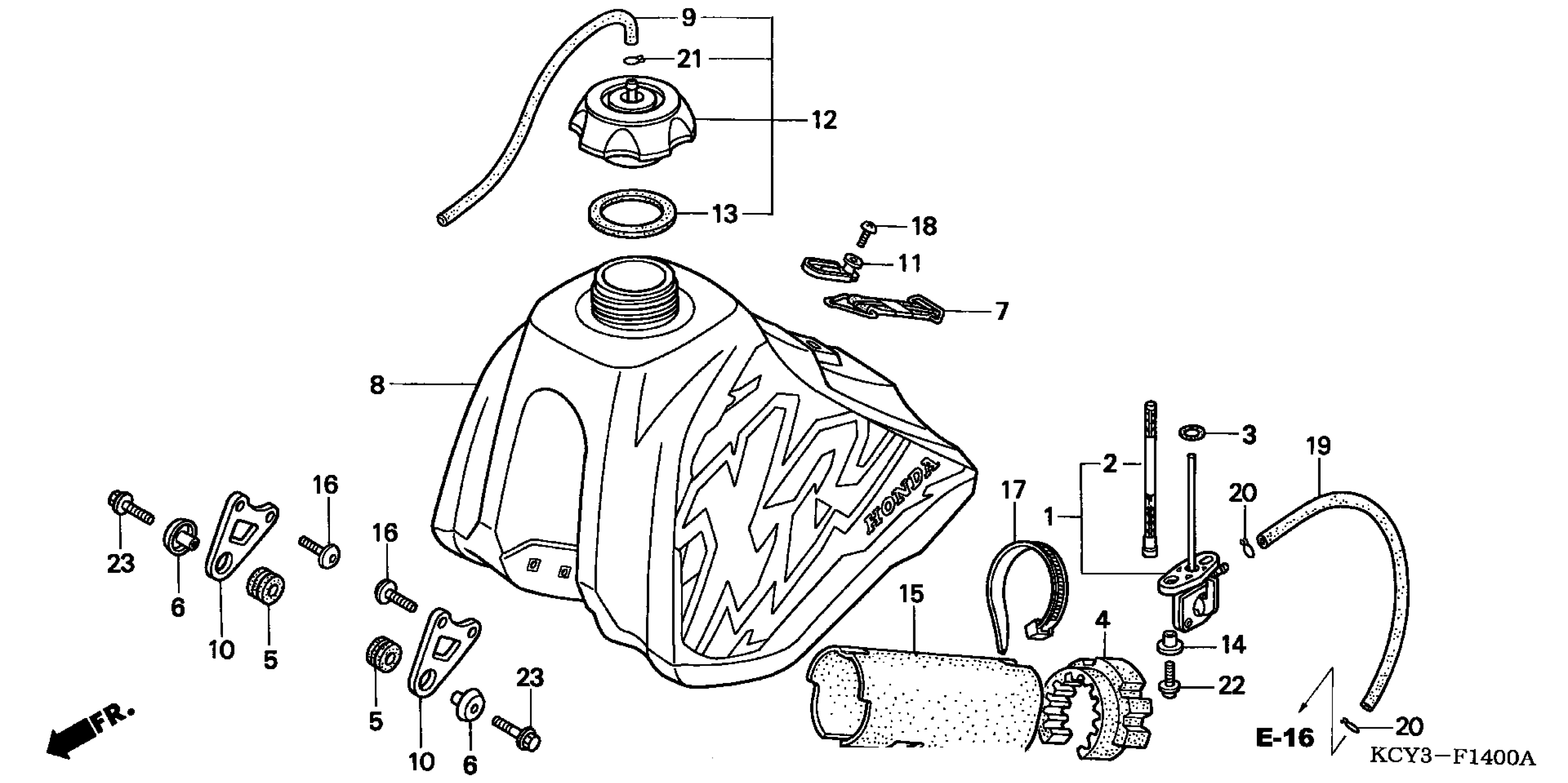

Honda XR400RA (98) MOTORCYCLE, JPN, VIN# JH2NE030-WM200001 TO JH2NE030-WM201585 FUEL TANK Diagram

#

Description
Price

1

PETCOCK, FUEL

16950-KCY-671

$69.77

2

SCREEN SET, FUEL STRAINER

16952-KCY-671

$26.48

3

O-RING (11.8X3.55)

16997-467-000

$2.01

4

RUBBER B, TANK SETTING

17504-KCY-670

Unavailable

5

RUBBER, TANK MOUNTING

17508-KN5-670

$2.36

5

RUBBER, TANK MOUNTING This part replaces 17508-MN1-670.

17508-KN5-670

$2.36

6

COLLAR, TANK SETTING

17509-MK2-680

Unavailable

7

BAND, RR. TANK

17516-MN1-670

$16.21

8

TANK SET, FUEL (TYPE1) (WL) (NOT AVAILABLE)

17520-KCY-760ZA

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

10

PLATE, FR. TANK

17522-KCE-670

Unavailable

11

STAY, FUEL TANK SETTING

17525-KCY-670

Unavailable

12

CAP ASSY., FUEL TANK

17620-KT1-780

$28.58

13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

14

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

15

COVER, MAIN PIPE HEAT

50180-KCY-670

Unavailable

16

SCREW, PAN (6X14)

90118-MR1-000

$2.88

17

STRAP, CABLE

90672-KBR-000

Unavailable

18

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.93

18

SCREW, PAN (6X10)

93500-06010-0A

$0.93

19

BULK HOSE, FUEL (7.5X8000) (7.3X170)

95001-75008-60M

$93.20

20

CLIP, TUBE (B12)

95002-02120

Unavailable

21

CLIP, TUBE (C9)

95002-50000

$1.14

22

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

23

BOLT, FLANGE (6X28)

96300-06028-00

$1.35
