Partiron

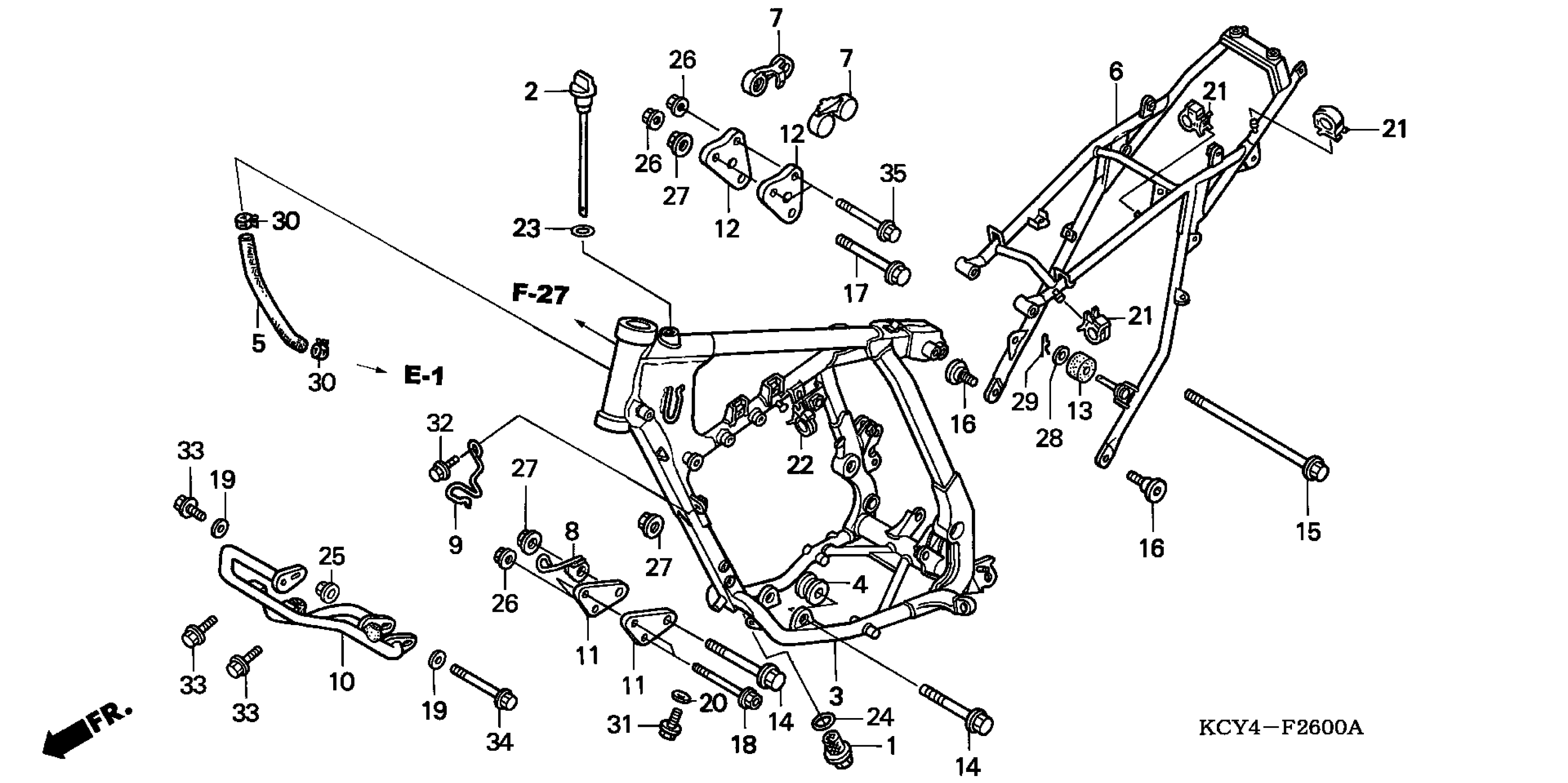

Honda XR400RA (98) MOTORCYCLE, JPN, VIN# JH2NE030-WM200001 TO JH2NE030-WM201585 FRAME Diagram

#

Description
Price

1

STRAINER, OIL

15500-KCZ-000

$41.49

2

DIPSTICK, OIL

15650-KCY-670

Unavailable

3

FRAME *NH262M* (TERRA SILVER METALLIC) (NOT AVAILABLE) This part replaces 50100-KCY-760.

50100-KCY-760ZA

Unavailable

3

FRAME *NH262M* (TERRA SILVER METALLIC) (NOT AVAILABLE)

50100-KCY-760ZA

Unavailable

4

COLLAR, ENGINE HANGER (LOWER)

50140-KF0-000

Unavailable

5

TUBE, BREATHER

50185-KCY-670

$17.78

6

FRAME, RR. *NH262M* (TERRA SILVER METALLIC) (NOT AVAILABLE)

50200-KCY-760ZA

Unavailable

7

RUBBER, R. TANK GUARD

50211-KN5-670

Unavailable

8

GUIDE, CLUTCH CABLE (A)

50255-KCY-670

Unavailable

9

GUIDE, CLUTCH CABLE (B)

50256-KCY-670

Unavailable

10

PIPE, SKID

50360-KCY-760

Unavailable

11

PLATE, FR. ENGINE HANGER

50533-KCY-670

Unavailable

12

PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50534-KCY-670

Unavailable

13

ROLLER, CHAIN (UPPER)

52175-KCN-000

$10.59

14

BOLT, FLANGE (10X80)

90101-MN9-000

$11.23

15

BOLT, FLANGE (8X145)

90112-GE2-000

Unavailable

16

BOLT, RR. FRAME (8X22)

90118-KZ3-860

$4.42

17

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

17

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

18

BOLT, FLANGE (8X75)

90217-KJ2-000

Unavailable

19

WASHER, DRUM STOPPER

90417-360-000

$1.58

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

22

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

23

O-RING (18X3) (ARAI)

91302-KE8-003

$2.38

24

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

$2.80

24

O-RING (25X3)

91305-384-750

$2.80

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

NUT, FLANGE (8MM)

94050-08000

$0.86

27

NUT, FLANGE (10MM)

94050-10000

$1.41

28

WASHER, PLAIN (8MM)

94102-08700

$0.86

29

PIN, LOCK (8MM)

94251-08000

$1.12

30

CLAMP, TUBE (D12.5)

95002-41250-00

$1.22

31

BOLT, DRAIN PLUG

90131-ZE1-000

$2.20

32

BOLT, FLANGE (6X12)

96300-06012-00

$0.86

33

BOLT, FLANGE (6X14)

96300-06014-00

$0.86

34

BOLT, FLANGE (6X70)

96300-06070-00

$2.77

35

BOLT, FLANGE (8X70)

96400-08070-00

Unavailable
