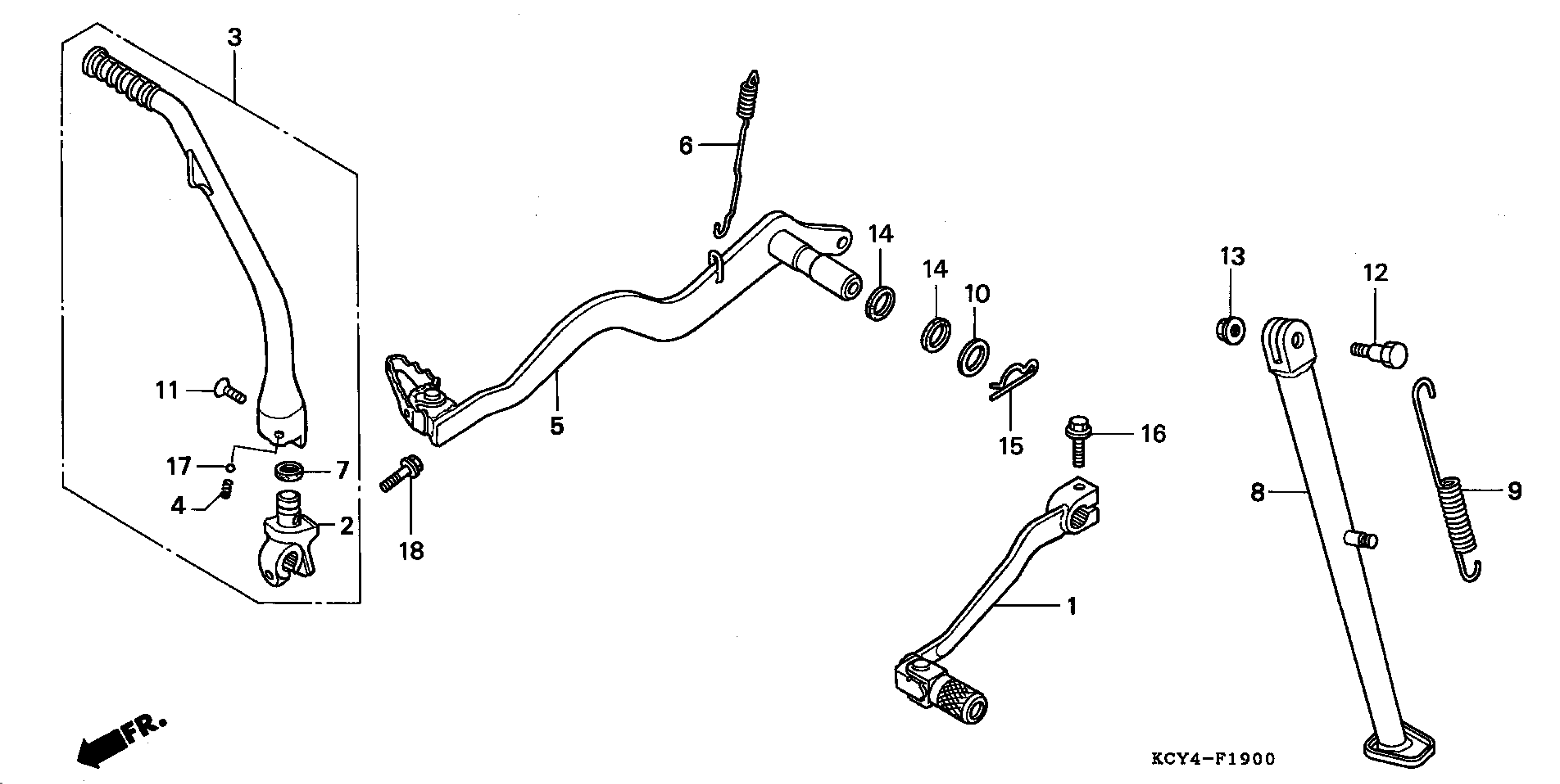

Honda XR400RA (97) MOTORCYCLE, JPN, VIN# JH2NE030-VM100001 TO JH2NE030-VM104120 PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24700-KCY-670.

24700-KCY-A10

Unavailable

PEDAL, GEARSHIFT

24700-KCY-A10

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28241-KCY-670

Unavailable

ARM ASSY., KICK STARTER

28300-KCY-670

Unavailable

SPRING, KICK STARTER

28333-KK0-000

$2.51

PEDAL, BRAKE This part replaces 46500-KCY-670.

46500-KCY-U10

Unavailable

PEDAL, BRAKE

46500-KCY-U10

Unavailable

SPRING, BRAKE PEDAL

46514-KCY-670

Unavailable

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BAR, SIDE STAND This part replaces 50530-KCY-670.

50530-KCY-A10

Unavailable

BAR, SIDE STAND

50530-KCY-A10

Unavailable

SPRING, SIDE STAND

50535-KAE-730

$10.00

WASHER, BUSH

53312-657-000

$6.70

SCREW, OVAL (6X28) (SOURCE: VINTAGE PARTS INC.)

90101-KCY-670

Unavailable

SCREW, SIDE STAND PIVOT

90108-KV6-000

$12.10

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

PIN, LOCK (16MM)

94251-16000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X25)

96300-08025-00

$1.62
