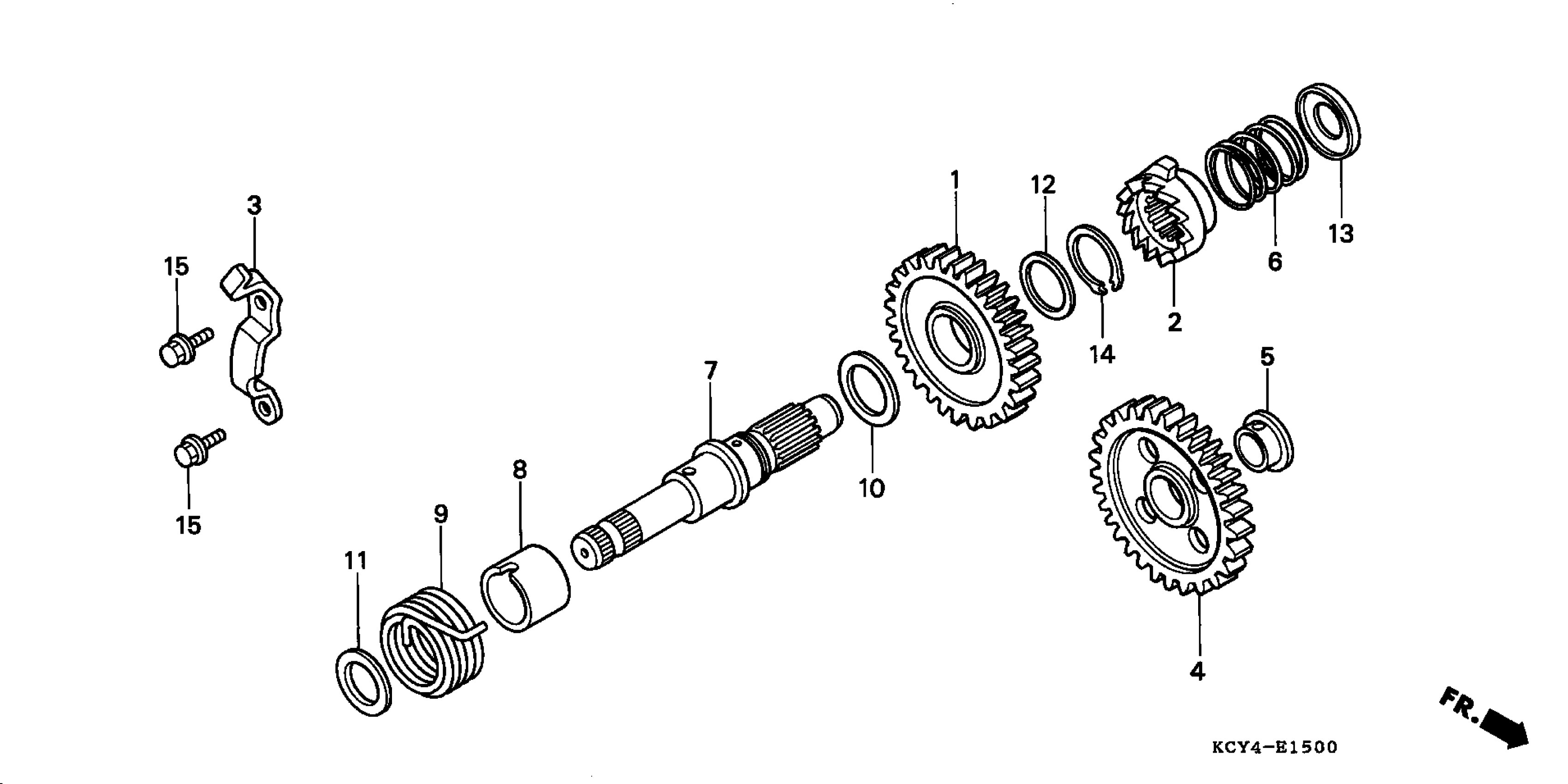

Honda XR400RA (97) MOTORCYCLE, JPN, VIN# JH2NE030-VM100001 TO JH2NE030-VM104120 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (29T) This part replaces 28211-KCY-670.

28211-KCY-671

Unavailable

PINION, KICK STARTER (29T)

28211-KCY-671

Unavailable

RATCHET, KICK STARTER

28213-KCY-670

Unavailable

PLATE, KICK STOPPER

28215-KCY-670

Unavailable

GEAR, KICK STARTER IDLE

28221-KCY-670

Unavailable

BUSH (14MM) (NOT AVAILABLE)

28222-KCY-670

Unavailable

SPRING, KICK STARTER RATCHET

28223-KK0-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-KCY-670

Unavailable

COLLAR, KICK STARTER

28255-KCY-670

Unavailable

SPRING, KICK STARTER

28261-KCY-670

$15.68

WASHER, THRUST (22X30X1)

90452-KZ4-000

$5.05

WASHER, THRUST (18MM)

90452-701-000

$2.34

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

CIRCLIP (22MM)

90601-329-000

$2.67

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
