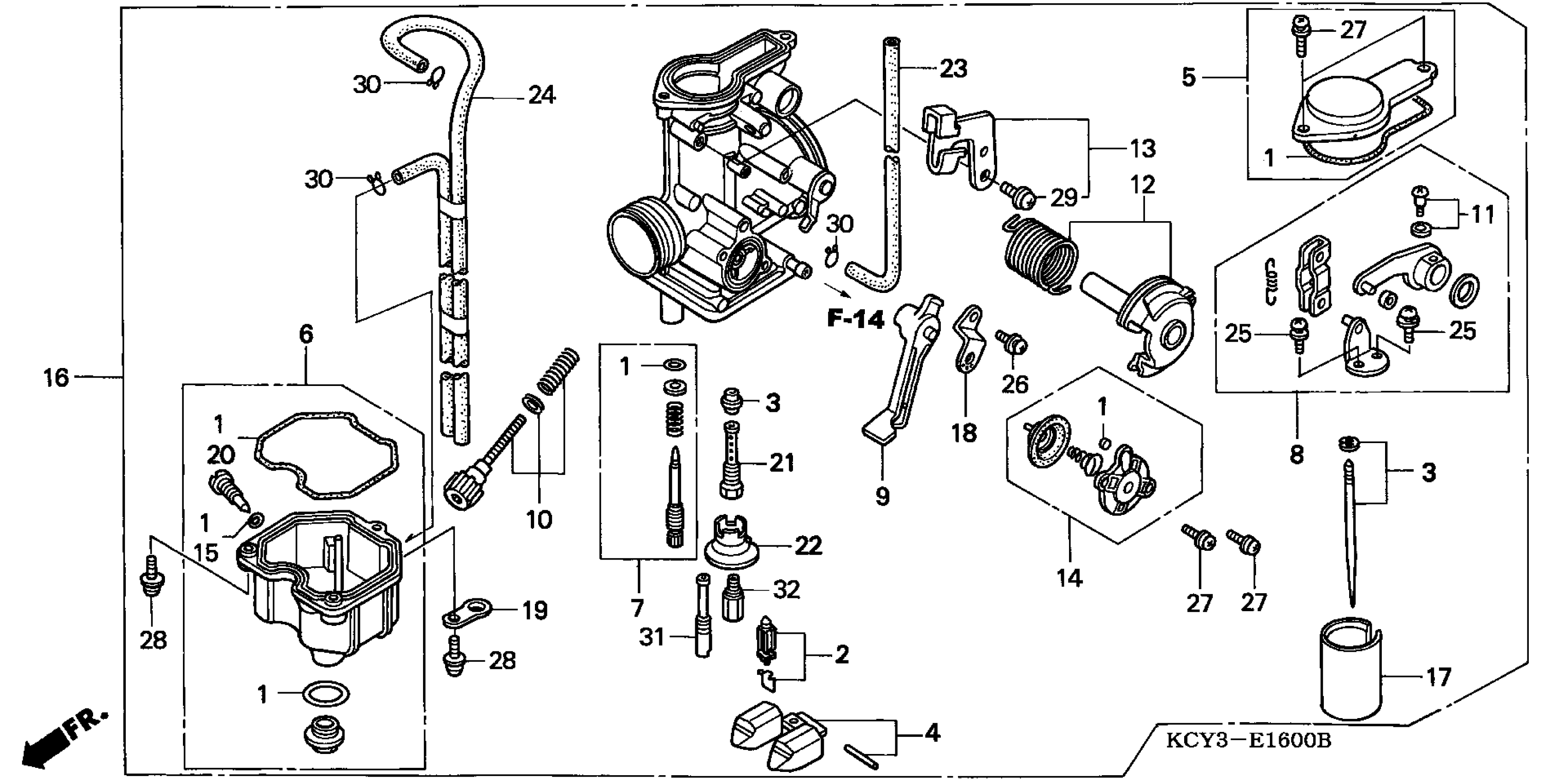

Honda XR400RA (97) MOTORCYCLE, JPN, VIN# JH2NE030-VM100001 TO JH2NE030-VM104120 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KCY-670

$40.09

2

VALVE SET, FLOAT

16011-KA3-741

$45.27

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-KCY-670

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

5

TOP SET

16014-KCY-670

Unavailable

6

CHAMBER SET, FLOAT

16015-KCY-670

Unavailable

7

SCREW SET A

16016-KCY-670

$20.50

8

ARM SET, LINK

16018-KCY-670

Unavailable

9

LEVER, CHOKE This part replaces 16019-KN5-671.

16019-KCE-671

Unavailable

9

LEVER, CHOKE

16019-KCE-671

Unavailable

9

LEVER, CHOKE This part replaces 16019-KN5-672.

16019-KCE-671

Unavailable

10

SCREW SET B

16028-KCY-670

Unavailable

11

SCREW SET C

16029-KCE-670

$11.30

12

LINK SET, THROTTLE

16032-KCY-670

Unavailable

13

STAY SET, WIRE

16037-KCY-670

Unavailable

14

VALVE SET, AIR CUT

16048-KCY-670

Unavailable

15

O-RING (1.3X4.3)

16075-GHB-640

$2.92

16

CARBURETOR ASSY. (POKIA A) (NOT AVAILABLE)

16100-KCY-671

Unavailable

17

VALVE, THROTTLE (SOURCE: VINTAGE PARTS INC.)

16112-KCY-670

Unavailable

18

PLATE, CHOKE LEVER SETTING

16119-429-771

$9.66

19

BINDER

16134-460-671

Unavailable

20

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

21

HOLDER, NEEDLE JET

16165-KCY-670

Unavailable

22

HOLDER, JET

16168-382-014

$9.81

23

TUBE (AIR VENT)

16198-KCY-670

Unavailable

24

TUBE (OVERFLOW & AIR VENT)

16199-KCY-671

Unavailable

25

SCREW-WASHER (3X8)

93892-03008-08

$1.49

25

SCREW-WASHER (3X8) This part replaces 93892-03008-18.

93892-03008-08

$1.49

26

SCREW-WASHER (4X10)

93892-04010-08

$1.49

26

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

27

SCREW-WASHER (4X12)

93892-04012-08

$1.49

27

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

28

SCREW-WASHER (4X16)

93892-04016-08

$1.49

28

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

29

SCREW-WASHER (5X12)

93892-05012-08

$1.49

29

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

30

CLIP, TUBE (B6.5)

95002-02659

$1.49

31

JET, SLOW (#60) | (Optional).

99103-437-0600

Unavailable

31

JET, SLOW (#62)

99103-437-0620

Unavailable

31

JET, SLOW (#65) | (Optional).

99103-437-0650

Unavailable

32

JET, MAIN (#175) | (Optional).

99101-357-1750

$9.41

32

JET, MAIN (#168) | (Optional).

99113-GHB-1680

$9.41

32

JET, MAIN (#170) | (Optional). This part replaces 99113-GHB-1700.

99101-357-1700

$9.41

32

JET, MAIN (#172) JET, MAIN (#155) | (Optional). This part replaces 99113-GHB-1720.

99101-357-1720

$9.41

32

JET, MAIN (#175) | (Optional). This part replaces 99113-GHB-1750.

99101-357-1750

$9.41

32

JET, MAIN (#178) | (Optional).

99113-GHB-1780

$9.41

32

JET, MAIN (#145) | (Optional).

99101-357-1450

$9.07

32

JET, MAIN (#145) | (Optional). This part replaces 99113-GHB-1450.

99101-357-1450

$9.07

32

JET, MAIN (#148) | (Optional).

99113-GHB-1480

$9.09

32

JET, MAIN (#150) | (Optional).

99113-GHB-1500

$9.08

32

JET, MAIN (#152) | (Optional).

99113-GHB-1520

Unavailable

32

JET, MAIN (#155) | (Optional).

99113-GHB-1550

$9.41

32

JET, MAIN (#158) | (Optional).

99113-GHB-1580

$9.44

32

JET, MAIN (#160) | (Optional).

99113-GHB-1600

$9.44

32

JET, MAIN (#162)

99113-GHB-1620

$9.41

32

JET, MAIN (#165) | (Optional).

99113-GHB-1650

$9.41
