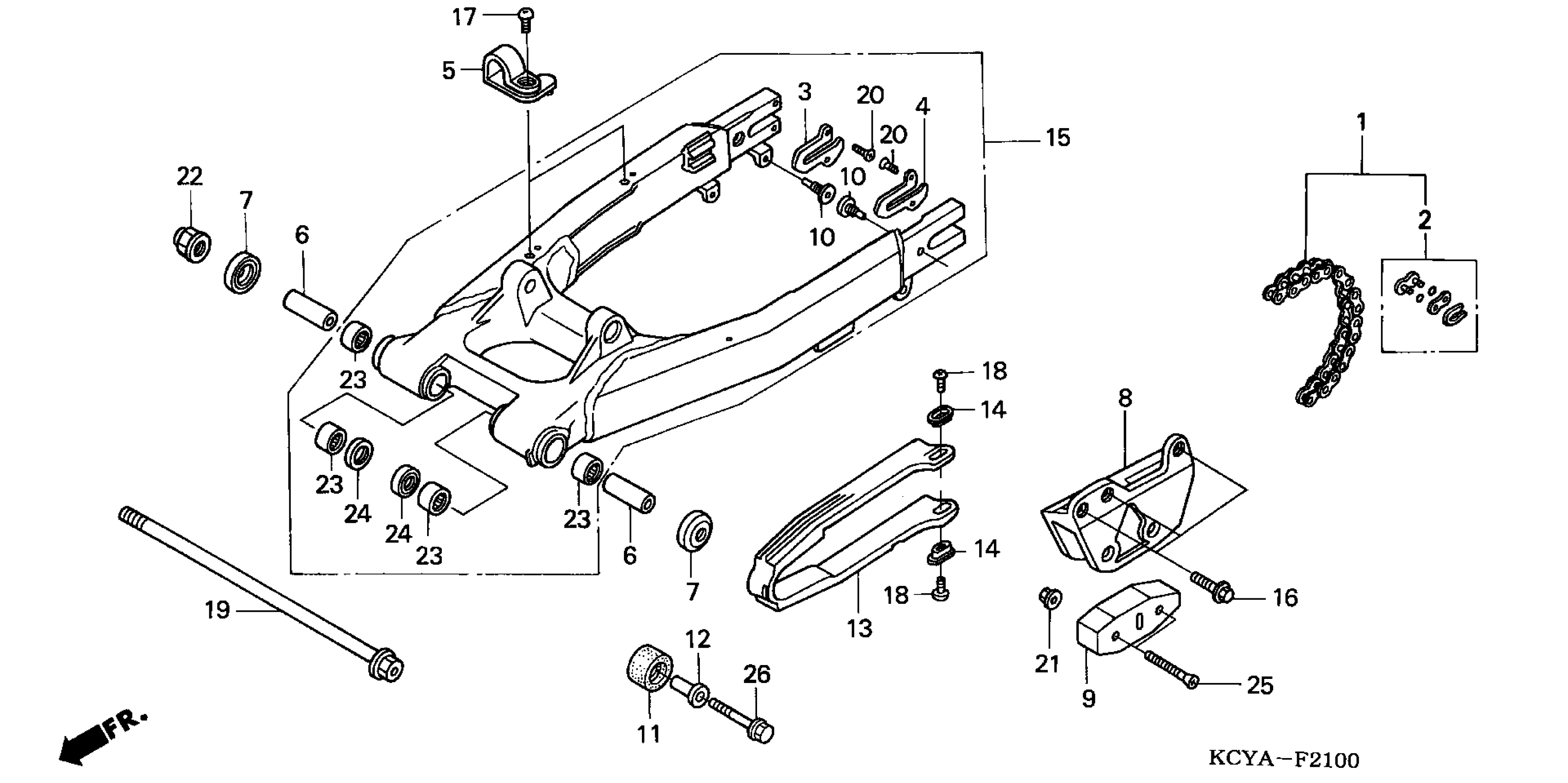

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (RK520MOZ6-108FJ) (RK EXCEL) This part replaces 40530-KCY-671.

40530-KCY-672

Unavailable

1

CHAIN, DRIVE (RK520MOZ6-108FJ) (RK EXCEL)

40530-KCY-672

Unavailable

2

MASTER LINK (RK EXCEL)

40531-KCY-672

Unavailable

2

MASTER LINK (DAIDO)

40531-MN1-672

$7.30

3

WASHER, R. RR. SWINGARM

42307-KT1-770

Unavailable

4

WASHER, L. RR. SWINGARM

42308-KT1-770

Unavailable

5

GUIDE, BRAKE HOSE

43468-KFB-000

$4.94

6

COLLAR, SWINGARM PIVOT

52141-HN1-000

$15.45

6

COLLAR, SWINGARM PIVOT This part replaces 52141-KCY-670.

52141-HN1-000

$15.45

7

CAP, DUST SEAL (NIPPON)

52144-KR8-005

$13.52

8

GUIDE, CHAIN

52146-KT1-770

$37.50

9

SLIDER, CHAIN GUIDE

52147-KN5-005

$14.67

10

PIN, CHAIN ADJUSTER

52156-KV6-000

$11.31

11

ROLLER, CHAIN

52158-HC0-000

$11.84

12

COLLAR, CHAIN ROLLER

52159-467-000

$11.56

13

SLIDER, CHAIN

52170-MN1-681

$57.68

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

15

SWINGARM SUB-ASSY., RR.

52200-KCY-670

Unavailable

16

BOLT, FLANGE (6X16)

90103-MY6-670

$3.72

17

SCREW, PAN (5X10)

90104-ML7-920

$2.92

18

SCREW, PAN (5X8)

90115-KV3-700

$2.61

19

BOLT, SWINGARM PIVOT

90121-KAE-000

$60.97

20

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

21

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

22

NUT, U (14MM)

90305-GE8-003

$3.86

22

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

23

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

24

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

25

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

26

BOLT, FLANGE (8X35)

96400-08035-00

$1.51
