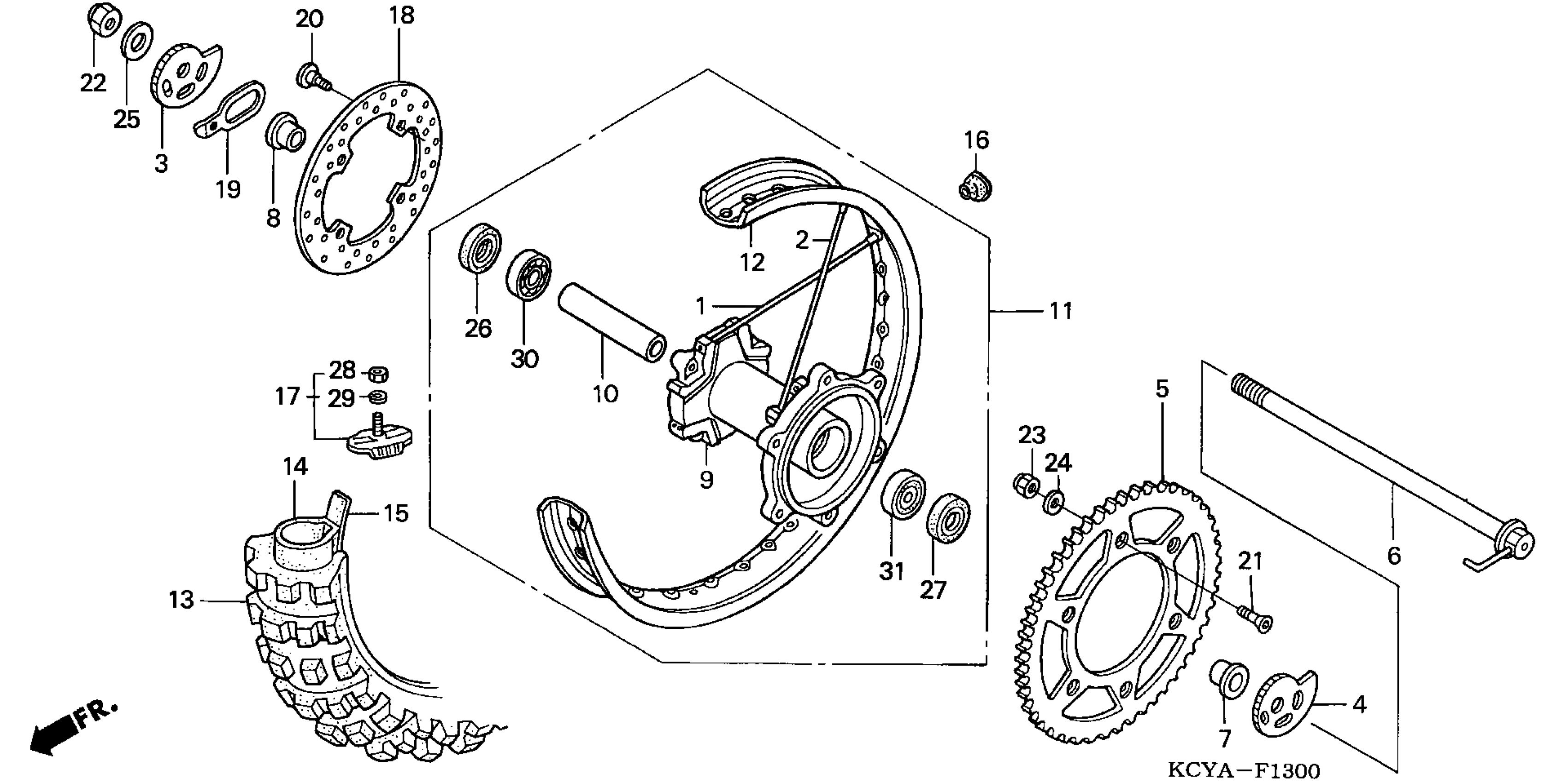

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 REAR WHEEL Diagram

SPOKE SET B, RR. (R. SIDE)

06421-KCY-670

$7.02

SPOKE SET A, RR. (L. SIDE)

06420-KCY-670

$7.02

ADJUSTER, R. CHAIN

40544-MN1-670

$12.19

ADJUSTER, L. CHAIN

40545-MN1-670

$12.91

SPROCKET, FINAL DRIVEN (45T)

41201-KCY-670

Unavailable

AXLE, RR. WHEEL

42301-KZ1-600

Unavailable

COLLAR, RR. WHEEL

42312-KAE-000

$25.03

COLLAR, RR. WHEEL SIDE

42313-KZ1-670

$16.79

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KCY-670

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-KAE-000

$15.64

WHEEL SUB-ASSY., RR. (NOT AVAILABLE)

42650-KCY-670

Unavailable

RIM, RR. WHEEL This part replaces 42701-MN1-681.

42701-MN1-682

Unavailable

RIM, RR. WHEEL

42701-MN1-682

Unavailable

TIRE, RR. (110/100-18) (64M D756) (DUNLOP) This part replaces 42711-ML3-911.

42711-MEY-004

Unavailable

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$6.14

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$6.14

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

DISK, RR. BRAKE

43351-KZ1-770

$174.82

STOPPER, RR. AXLE

52162-KF0-000

$5.46

BOLT, DISK (8X22)

90105-MK5-010

$4.94

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (16MM)

90305-GW2-711

$16.36

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

WASHER (8MM)

90465-MC4-000

$2.51

WASHER, PLAIN (16MM)

90559-469-000

$5.35

OIL SEAL (25X40X7)

91252-KCY-671

$10.24

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
