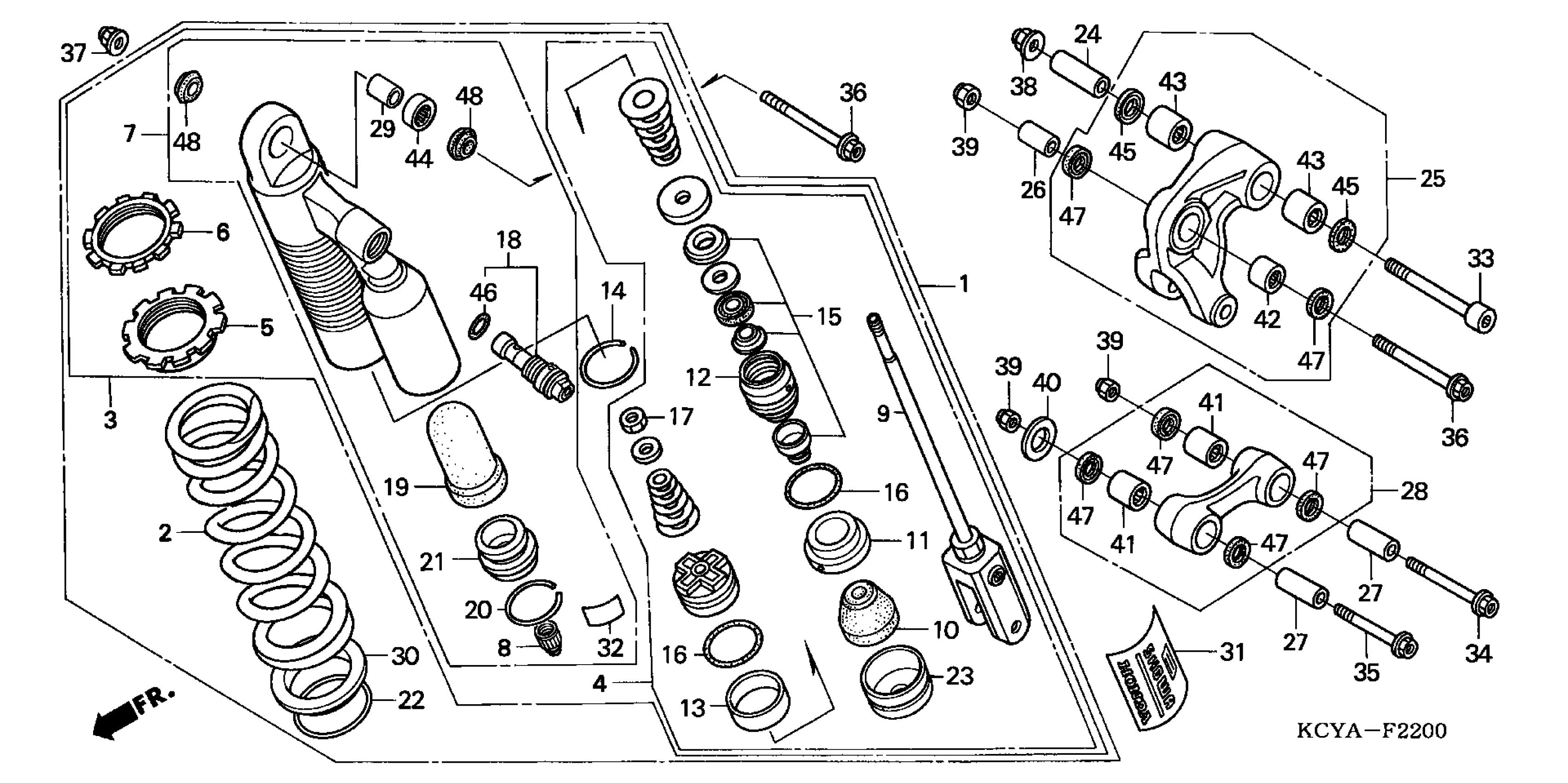

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (SHOWA)

52400-KCY-761

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-KCY-761

Unavailable

3

DAMPER, RR.

52410-KCY-761

Unavailable

4

ROD, PISTON (NOT AVAILABLE)

52421-KCY-761

Unavailable

5

ADJUSTER, SPRING

52422-KS7-701

$33.79

6

NUT, ADJUSTER

52423-KS7-701

$26.16

7

CASE, SHOCK ABSORBER

52425-KCY-761

$667.56

8

CAP, AIR VALVE

52425-169-003

$4.94

9

ROD

52426-KCY-761

Unavailable

10

RUBBER, STOPPER

52427-KZ3-891

$19.01

11

PLATE, END (SHOWA)

52428-KA4-832

Unavailable

12

CASE, ROD GUIDE

52429-MN1-681

Unavailable

13

RING, PISTON

52431-KA4-831

$15.90

14

RING, STOPPER

52435-KS7-831

Unavailable

15

OIL SEAL SET

52436-MN1-680

$46.95

16

O-RING SET

52437-KA4-841

$9.52

17

NUT, HEX. (12MM)

52438-KA4-741

$2.92

18

BOLT, PLUG

52440-KCY-671

Unavailable

19

BLADDER (SHOWA)

52451-MN1-681

$25.74

20

RING, STOPPER

52452-MN1-681

Unavailable

21

CAP, CHAMBER (SHOWA)

52453-MN1-681

Unavailable

22

RING, STOPPER

52455-MM5-003

Unavailable

23

STOPPER, SPRING SEAT (NOT AVAILABLE)

52459-KCY-671

Unavailable

24

COLLAR, CUSHION ARM PIVOT

52463-KCZ-000

Unavailable

25

ARM SET, CUSHION

52465-KCY-760

Unavailable

26

COLLAR C, CUSHION ARM

52465-MY1-000

$5.90

27

COLLAR, CUSHION CONNECTING ROD

52473-KZ9-710

$15.97

28

ROD SUB-ASSY., RUBBER CONNECTING

52475-KCY-670

Unavailable

29

COLLAR, CUSHION (UPPER)

52486-GS2-700

Unavailable

30

SEAT, SPRING

52486-KZ3-003

Unavailable

32

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

33

BOLT, SOCKET (12X90)

90128-KCZ-000

Unavailable

34

BOLT, FLANGE (10X74)

90129-KCZ-000

$5.69

35

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

35

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

36

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

37

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

38

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

39

NUT, U (10MM)

90306-KZ4-711

$3.74

40

WASHER (10MM)

90410-HC4-000

$3.81

41

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

42

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$19.69

43

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

44

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

45

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

46

O-RING (20X23.5)

91256-KCY-671

$3.48

47

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

48

DUST SEAL, RR. CUSHION (UPPER)

91351-GS2-701

$4.48
