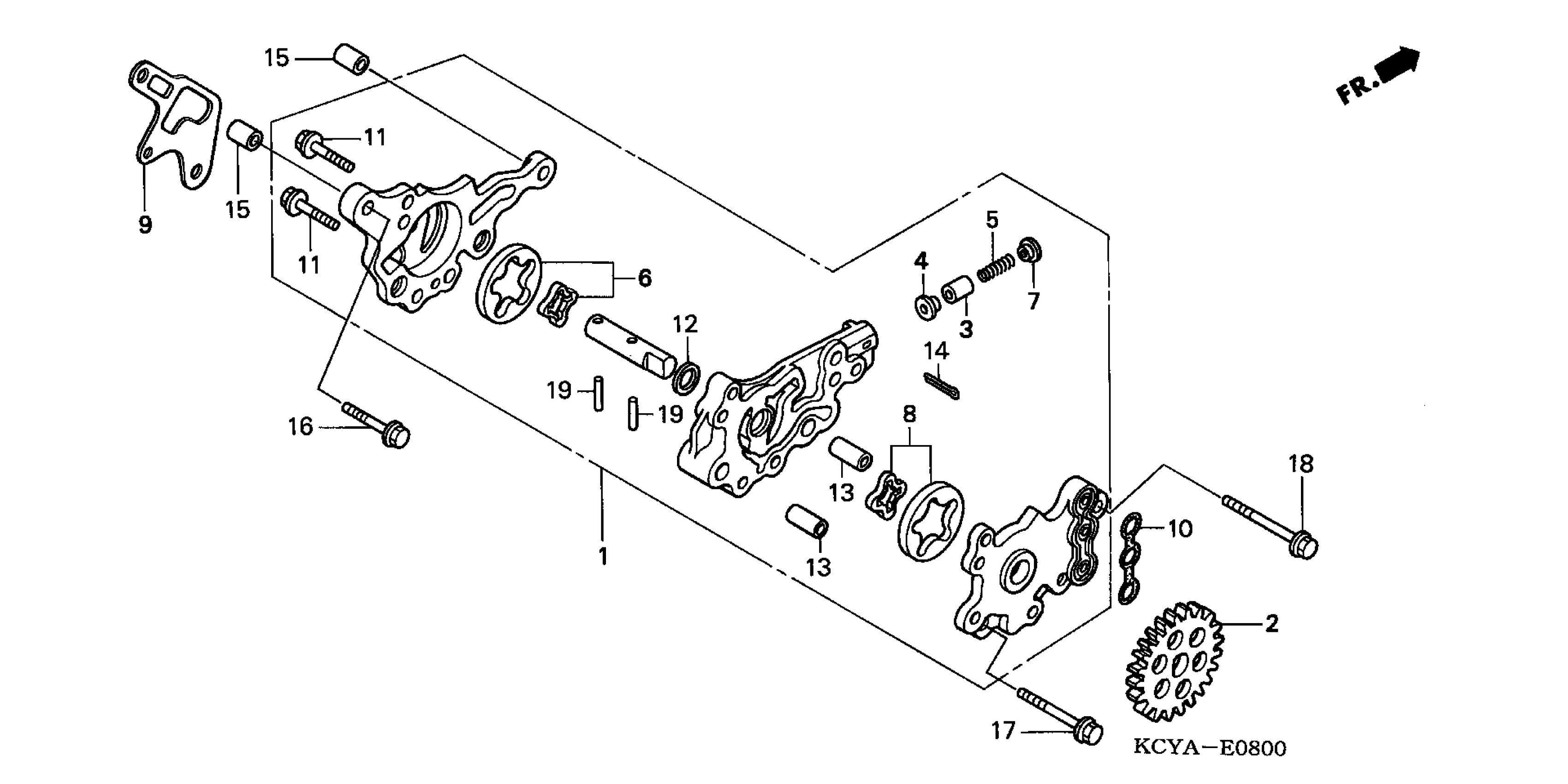

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KCY-670

Unavailable

2

GEAR, OIL PUMP DRIVEN (27T)

15105-KCY-670

$114.66

3

VALVE, OIL LEAK STOPPER

15106-MG3-000

$16.97

4

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.53

5

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.80

6

ROTOR SET A, OIL PUMP

15110-KCY-305

Unavailable

7

SEAT B, SPRING

15111-MG3-000

$2.92

8

ROTOR SET, OIL PUMP

15120-KCZ-305

$40.00

9

SEAT, OIL PUMP

15151-KCY-671

$7.00

10

SEAL, RUBBER

15152-KCY-670

$10.30

11

BOLT (6X25)

90003-GAV-701

$4.52

12

WASHER, THRUST (11MM)

90456-333-000

$2.53

13

PIN, DOWEL (8X19)

90701-KCY-670

$3.28

14

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

14

PIN, SPLIT (3.0X45)

94201-30450

$1.49

15

PIN, DOWEL (8X14)

94301-08140

$2.25

16

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

18

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

19

ROLLER (4X15.8)

96220-40158

$1.49
