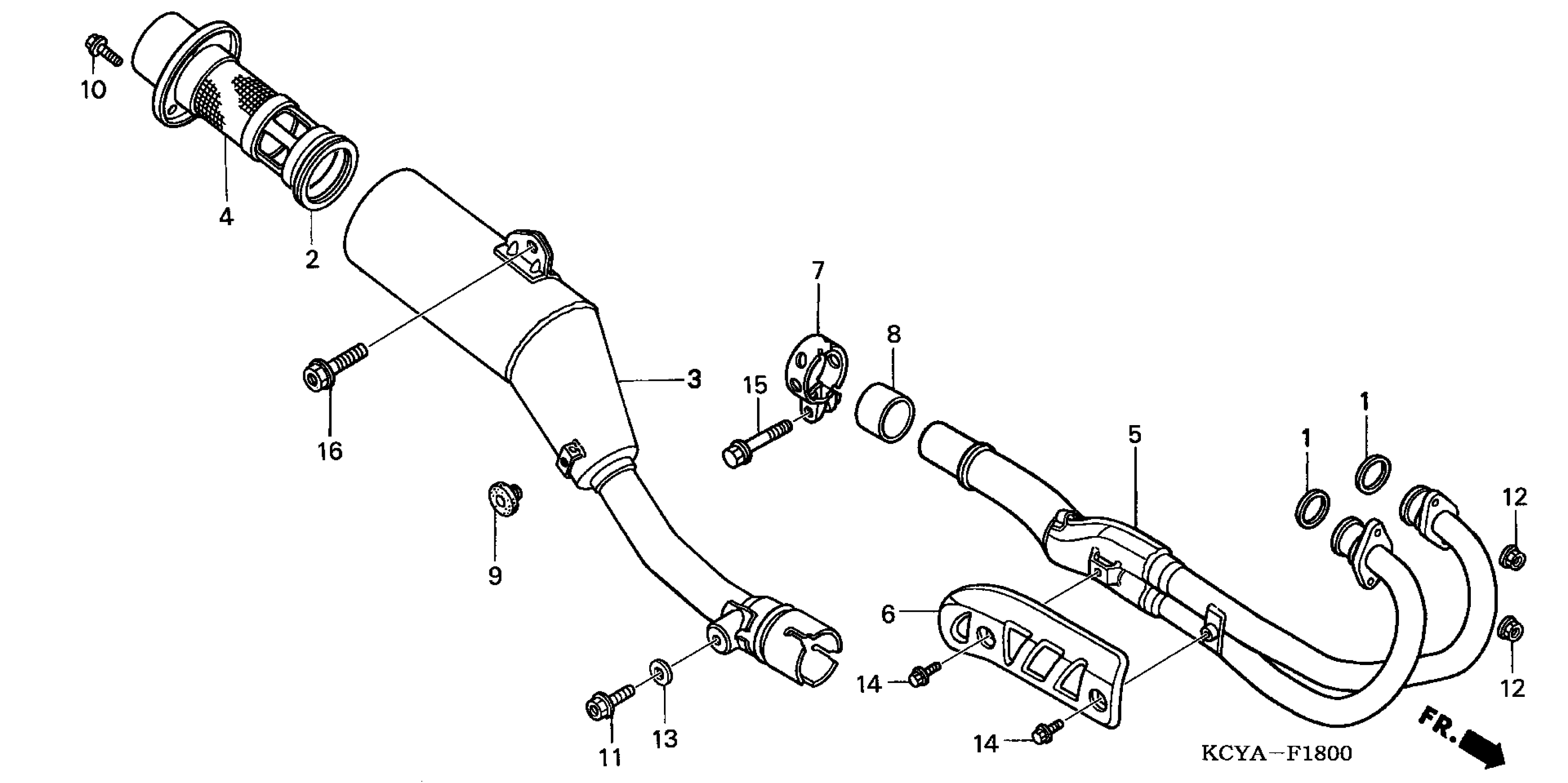

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, MUFFLER

18292-MV4-000

$8.68

MUFFLER

18310-KCY-760

Unavailable

ARRESTER, SPARK

18317-KCY-760

Unavailable

PIPE, EX.

18320-KCY-671

Unavailable

PROTECTOR, EX. PIPE

18325-KCY-670

$34.16

BAND, L. MUFFLER This part replaces 18371-ML7-000.

18374-KE8-000

$29.26

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$29.26

BAND, L. MUFFLER

18374-KE8-000

$29.26

GASKET, MUFFLER

18392-MK4-000

$13.66

RUBBER, SIDE COVER

83512-KA4-700

$4.57

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, HEX. (8MM)

90105-770-A11

$3.20

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

BOLT, FLANGE (6X8)

96001-06008-02

$1.54

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

BOLT, FLANGE (8X28)

96400-08028-00

$1.85
