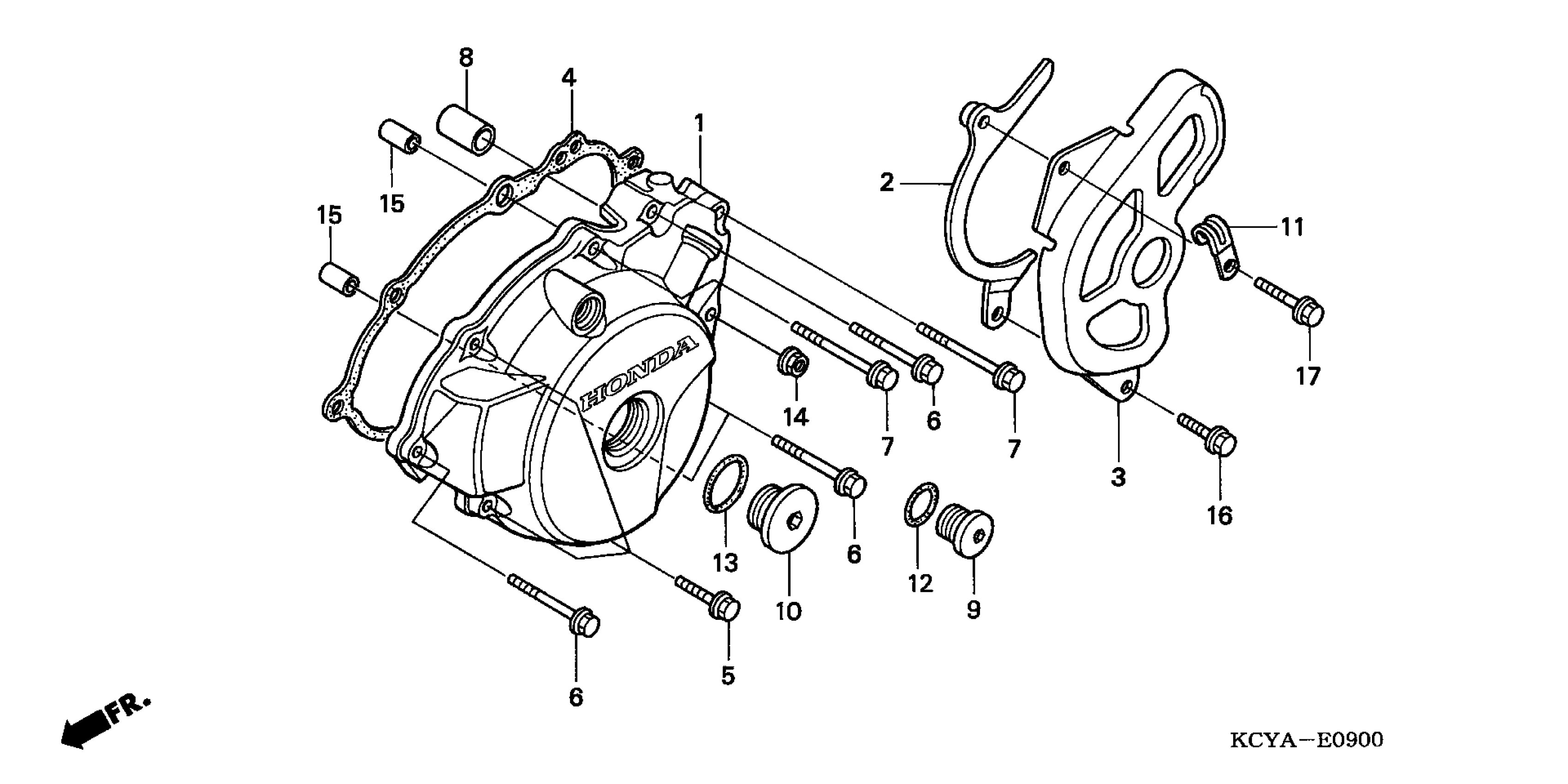

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11340-KCY-A10

Unavailable

GUIDE, DRIVE CHAIN

11352-KCY-670

$22.51

COVER, DRIVE SPROCKET

11361-KCY-670

$57.03

GASKET, L. COVER This part replaces 11395-KCY-671.

11395-KCY-673

$20.26

GASKET, L. COVER This part replaces 11395-KCY-672.

11395-KCY-673

$20.26

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

PIN, DOWEL (15X25)

90037-KCY-670

Unavailable

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-HB5-000

$16.69

CLIP (4X50)

90601-KJ9-000

$3.08

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, DOWEL (10X20)

94301-10200

$2.35

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
