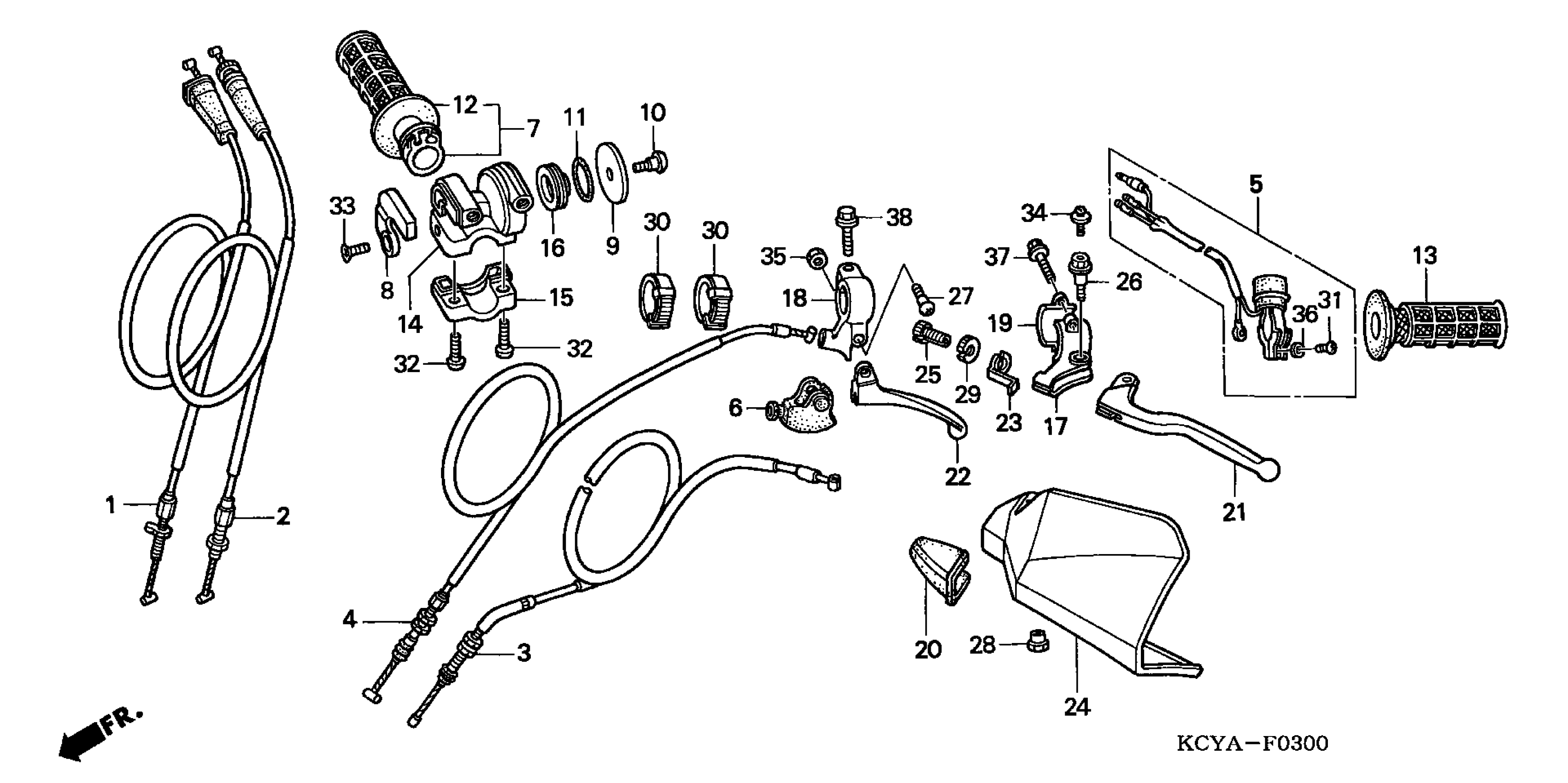

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KCY-670

Unavailable

1

CABLE B, THROTTLE

17920-KCY-671

Unavailable

2

CABLE A, THROTTLE

17910-KCY-670

Unavailable

2

CABLE B, THROTTLE

17920-KCY-671

Unavailable

3

CABLE, CLUTCH

22870-KCY-670

$31.72

4

CABLE, DECOMPRESSION

22890-KCY-670

Unavailable

5

SWITCH ASSY., STOP

35130-MN1-670

$32.97

6

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$14.19

7

GRIP ASSY., THROTTLE

53140-429-010

$33.38

8

SLIDER, THROTTLE

53162-MN1-670

$8.58

9

COVER, THROTTLE PULLEY

53163-MN1-670

$8.27

10

SCREW, THROTTLE PULLEY PIVOT

53164-MN1-670

$4.66

11

GASKET, THROTTLE PULLEY

53165-MN1-670

$2.62

12

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

13

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$8.47

13

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

14

HOUSING, THROTTLE (UPPER)

53167-MN1-670

$26.59

15

HOUSING, THROTTLE (LOWER)

53168-MN1-670

$17.06

16

PULLEY, THROTTLE

53169-MN1-670

$12.62

17

BRACKET, L. HANDLE LEVER

53172-KAE-730

$31.34

18

BRACKET, DECOMPRESSION LEVER

53173-435-730

$33.49

19

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.08

20

COVER, L. HANDLE LEVER

53177-KCZ-000

$9.14

21

LEVER, L. HANDLEBAR

53178-KAE-730

$20.88

22

LEVER, DECOMPRESSION

53180-MAG-670

Unavailable

23

PLATE, GUARD SETTING

53181-KCY-670

Unavailable

24

GUARD, L. KNUCKLE *R134* (FIGHTING RED)

53185-KCZ-000ZB

$32.41

25

BOLT, WIRE ADJUSTING

53192-KA4-710

$9.43

26

BOLT, LEVER PIVOT

90112-KCZ-000

$3.96

27

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.48

28

NUT, FENDER SETTING

90312-GE2-000

$4.33

29

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$8.76

29

NUT, FIXING

90321-KF0-000

$8.76

30

BAND, WIRE

90650-KW3-000

$4.16

31

SCREW, PAN (4X12)

93500-04012-0A

$0.75

31

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

32

SCREW, PAN (6X16)

93500-06016-0G

$0.86

33

SCREW, OVAL (4X10)

93700-04010-0G

$0.43

33

SCREW, OVAL (4X10) This part replaces 93700-04010-1G.

93700-04010-0G

$0.43

34

SCREW-WASHER (4X10)

93894-04010-10

$1.10

35

NUT, HEX. (5MM)

94001-05000-0S

$2.42

36

WASHER, SPRING (4MM)

94111-04000

$0.97

37

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

38

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
