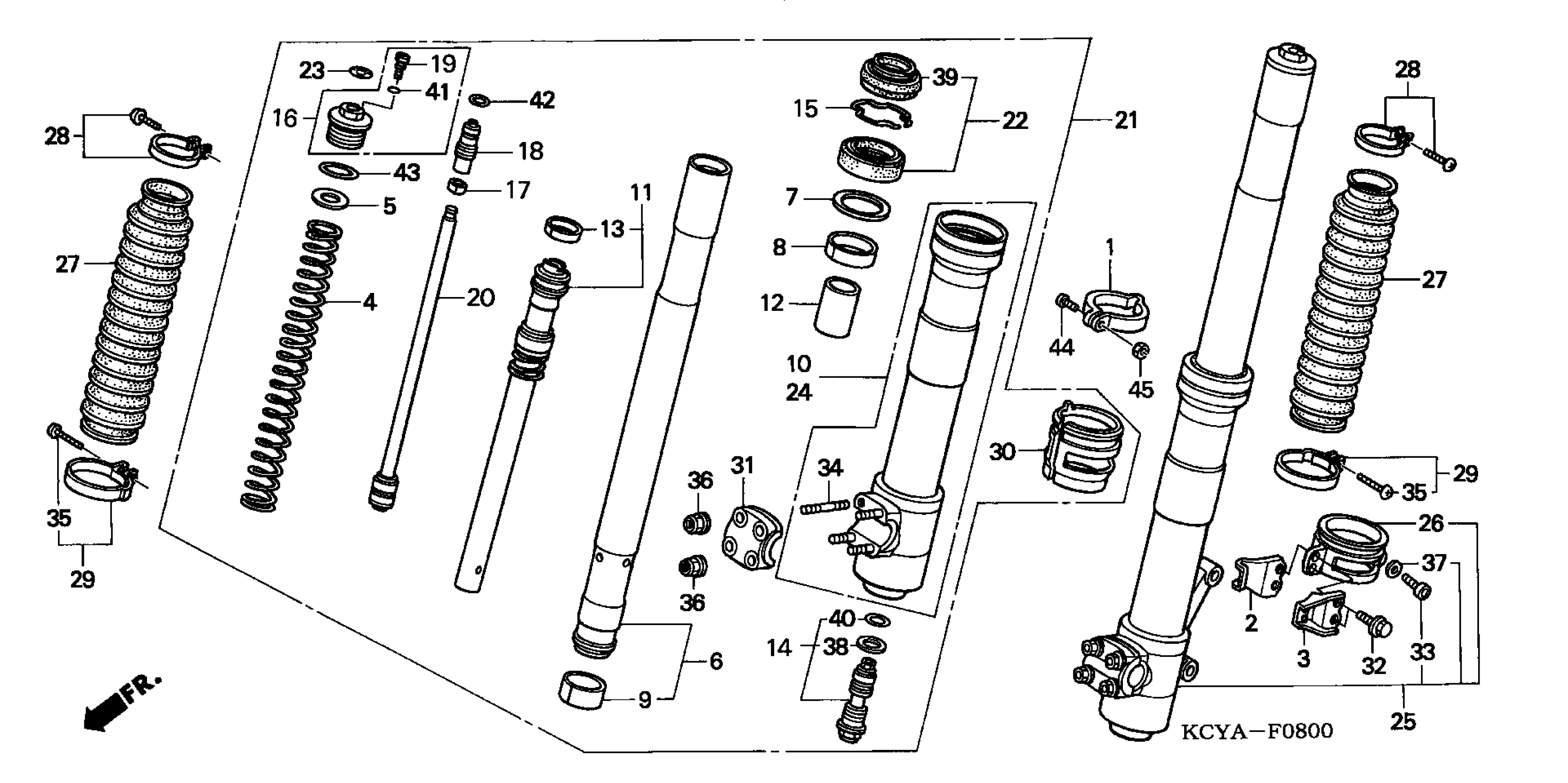

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KCZ-000

$8.98

2

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

3

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

4

SPRING, FR. FORK

51401-KCY-761

Unavailable

5

SEAT, SPRING

51405-KA4-711

$6.23

6

PIPE, FR. FORK

51410-KCY-761

Unavailable

7

RING, BACK-UP

51412-KA4-711

$9.65

8

BUSH, GUIDE This part replaces 51414-KCY-761.

51414-MAZ-751

$7.14

8

BUSH, GUIDE

51414-MAZ-751

$7.14

9

BUSH, SLIDER This part replaces 51415-KCY-761.

51415-MCF-003

$7.95

9

BUSH, SLIDER

51415-MCF-003

$7.95

10

CASE, R. (LOWER)

51420-KCY-671

Unavailable

11

CYLINDER

51430-KCY-303

Unavailable

12

PIECE, OIL LOCK

51432-KCY-761

Unavailable

13

BUSH, CYLINDER

51435-KS7-003

$21.68

14

BOLT, CENTER

51441-KCY-761

Unavailable

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

16

BOLT ASSY., FR. FORK

51450-KCY-671

Unavailable

17

NUT, LOCK

51451-KS7-003

Unavailable

18

CASE, ADJUSTER (NOT AVAILABLE)

51456-KCY-671

Unavailable

19

BOLT, PLUG This part replaces 51456-KZ3-711.

51456-KZ3-J41

$6.21

20

ROD, PISTON

51470-KCY-761

Unavailable

21

FORK SUB-ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51480-KCY-761

Unavailable

22

SEAL SET, FR. FORK (SHOWA)

51490-KS6-305

$36.18

23

LABEL

51496-MR7-003

$3.26

24

CASE, L. (LOWER)

51520-KCY-671

Unavailable

25

FORK SUB-ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51580-KCY-761

Unavailable

26

HOLDER, BRAKE HOSE CLAMP

51610-KCY-671

$12.10

27

BOOT, FR. FORK This part replaces 51611-MN1-671ZD.

51611-MN1-673

$50.73

28

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

29

BAND, BOOT (LOWER) (SHOWA)

51613-MK2-003

$8.78

30

HOLDER, SPEEDOMETER CABLE CLAMP

51620-KCY-671

Unavailable

31

HOLDER, AXLE This part replaces 51634-KZ3-003.

51634-MV1-003

Unavailable

32

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

33

BOLT, SOCKET (5X20)

90116-KCY-671

$5.80

34

BOLT, STUD (6X25)

90136-KCY-671

$3.47

35

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

36

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

37

WASHER, PLAIN

90507-KCY-671

Unavailable

38

WASHER, SPECIAL

90544-KZ3-003

$3.10

39

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

40

O-RING (15.5X1.5)

91256-GC5-003

$1.51

41

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

42

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

42

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

43

O-RING (35.2X2.4)

91356-KA4-711

$3.76

44

SCREW, PAN (5X20)

93500-05020-0G

$1.49

45

NUT, HEX. (5MM)

94001-05070-0S

$1.49
