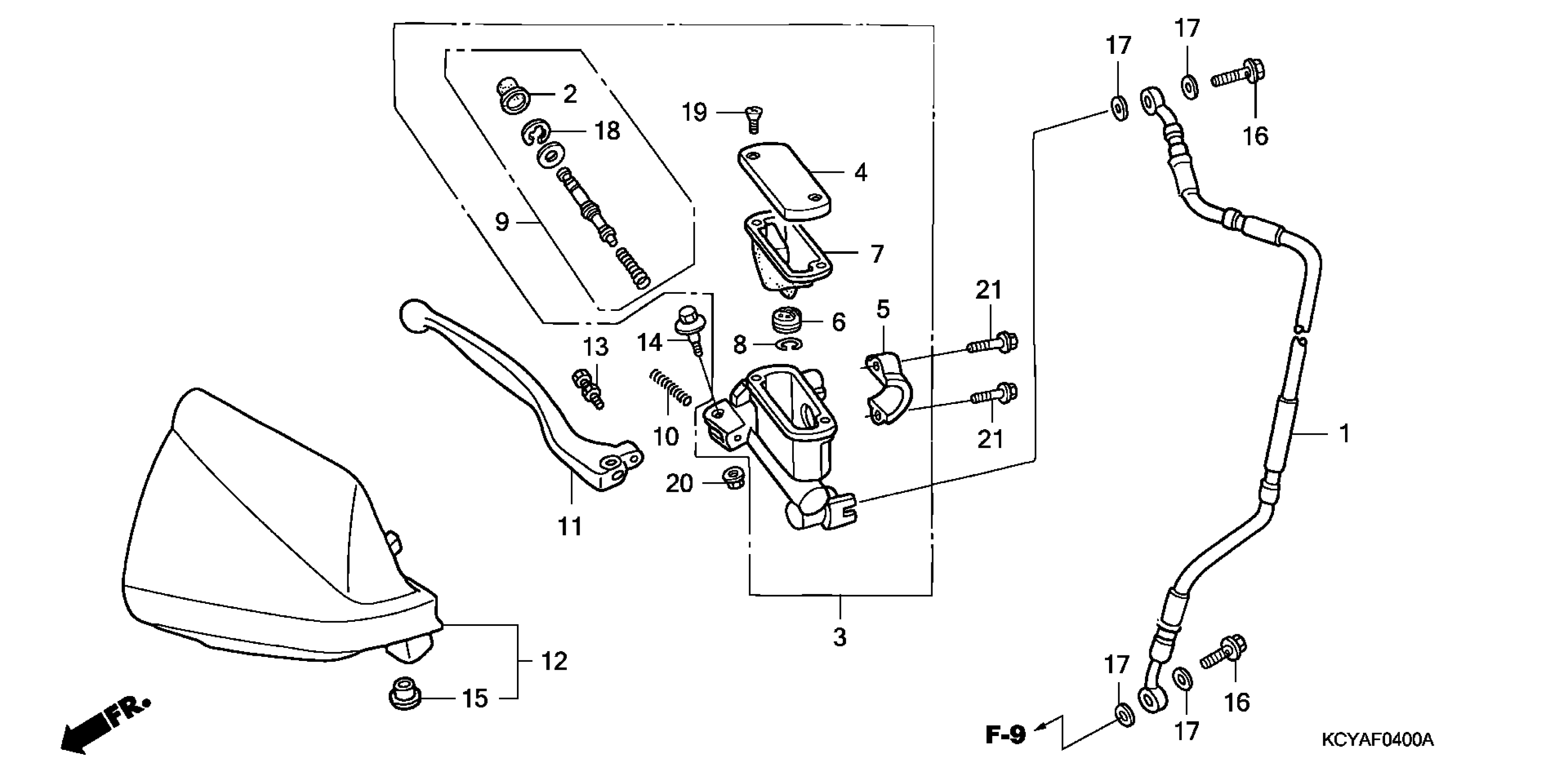

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-KCY-671

Unavailable

BOOT

45504-KN5-006

$11.31

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-KCE-671.

45510-MEY-305

$216.83

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MEY-305

$216.83

CAP, MASTER CYLINDER

45513-KCE-671

$23.01

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

SEPARATOR

45518-KA3-731

$12.17

DIAPHRAGM

45520-KA3-731

$13.57

RING

45523-KA3-731

$2.92

PISTON SET, MASTER CYLINDER

45530-KCE-671

$43.62

SPRING, BRAKE LEVER

53174-KN5-006

$2.97

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KCE-670.

53175-KPT-305

$16.70

LEVER, R. HANDLEBAR (COO)

53175-KPT-305

$16.70

GUARD, R. KNUCKLE *R134* (FIGHTING RED)

53180-KCZ-000ZB

$40.78

BOLT SET, ADJUSTER

90111-ML3-791

$6.60

BOLT, LEVER PIVOT

90113-KCZ-006

$4.19

COLLAR (6X5.5)

90127-KCZ-000

$2.46

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
