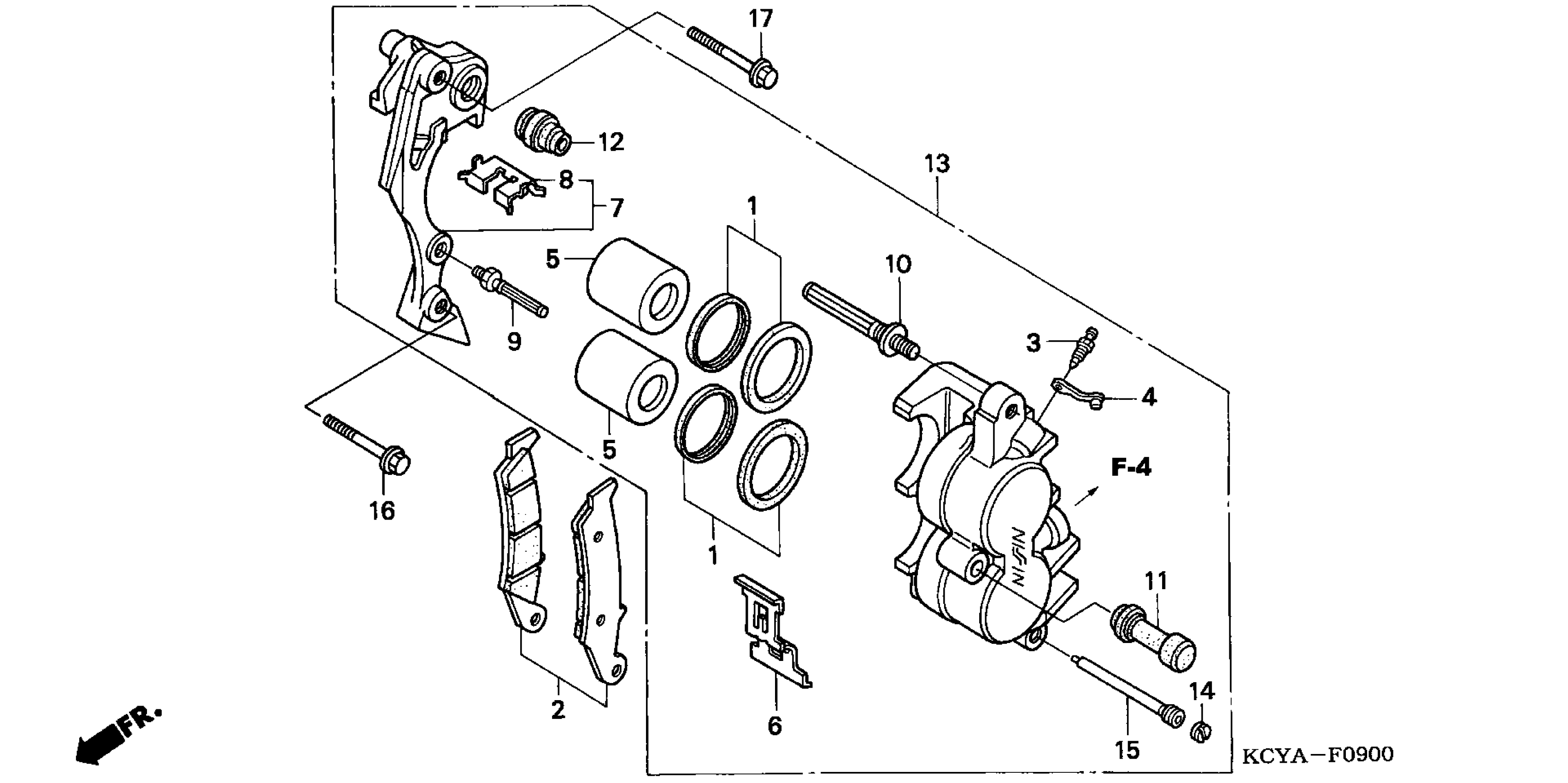

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, FR.

06455-KCZ-000

$57.84

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-KS6-702

$55.47

SPRING, PAD

45108-MY1-006

$10.74

BRACKET, L. FR.

45110-KCY-671

Unavailable

RETAINER

45112-KS6-701

$6.08

BOLT A, PIN

45131-HA5-672

$15.44

BOLT, PIN

45131-KAE-006

$6.21

BOLT A, PIN

45131-HA5-672

$15.44

BOLT, PIN

45131-KAE-006

$6.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KCY-671

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-HA5-672

$10.63

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75

BOLT, FLANGE (8X40)

90131-MS6-900

$4.07
