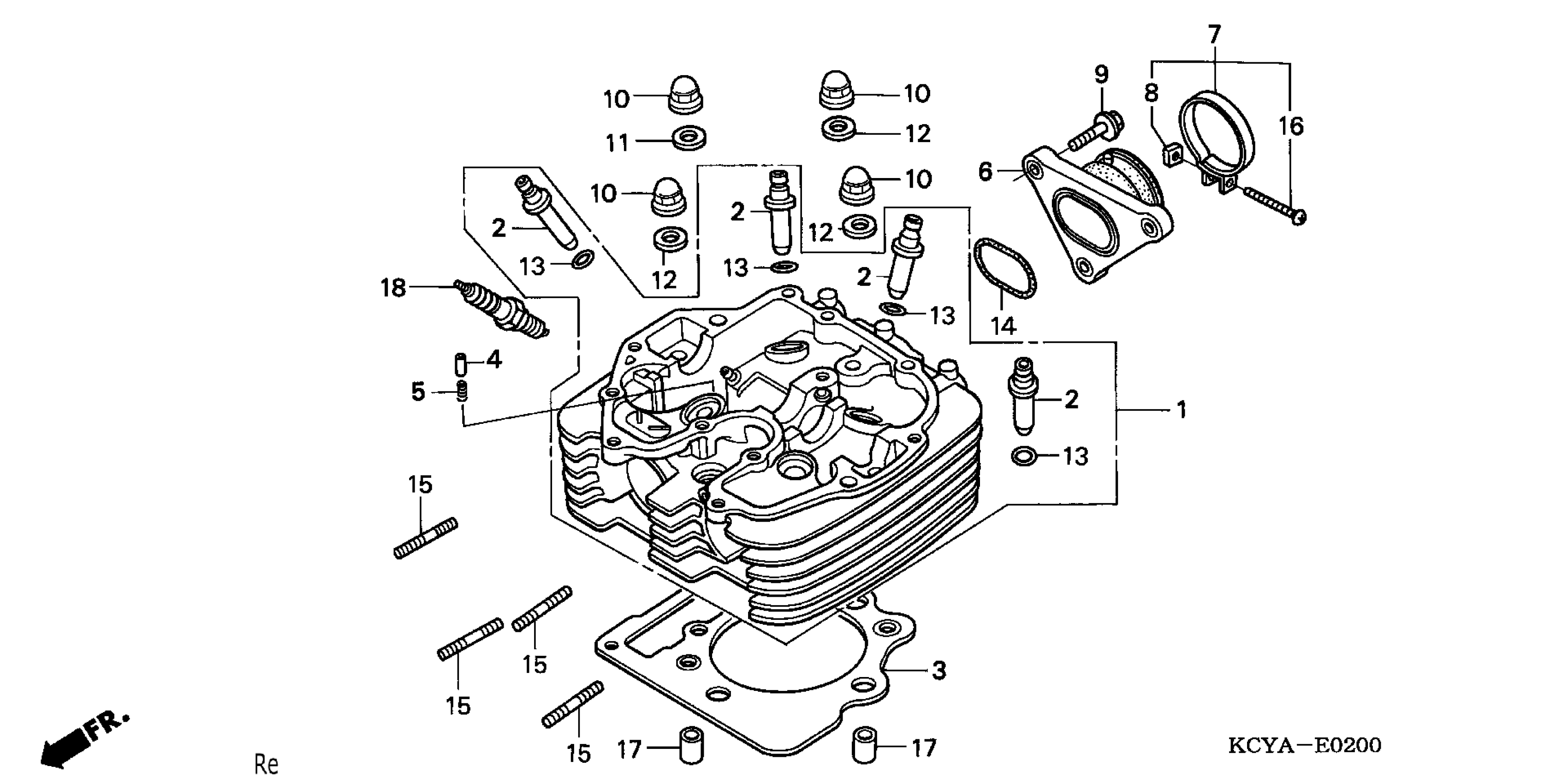

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-KCY-670

Unavailable

GUIDE, VALVE

12231-KF0-305

$21.21

GUIDE, VALVE This part replaces 12231-KN5-305.

12231-KF0-305

$21.21

GASKET, CYLINDER HEAD

12251-MBV-013

$23.41

PLUNGER, CAM SETTING

14125-KV2-940

$16.20

SPRING, PLUNGER

14126-KV2-940

$3.71

INSULATOR, CARBURETOR

16211-KCY-670

$69.33

BAND A, INSULATOR

16217-MW0-000

$10.29

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

NUT, CAP (10MM)

90201-HA0-000

$6.15

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.15

WASHER (10X25X4)

90453-KAS-900

$5.56

WASHER, PLAIN (10MM)

90453-KCY-670

$3.95

O-RING (10X1.6)

91301-200-000

$2.87

O-RING (45X2.5)

91303-397-000

$4.78

BOLT, STUD (8X22)

92900-08022-0B

$2.54

SCREW, PAN (5X32)

93500-05032-0G

$0.54

PIN, DOWEL (12X20)

94301-12200

$2.80

SPARK PLUG (DPR8Z) (NGK)

98061-58616

$2.70

SPARK PLUG (X24GPR-U) (DENSO)

98061-58626

$3.14

SPARK PLUG (DPR9Z) (NGK) | (Optional).

98061-59616

$2.98

SPARK PLUG (X27GPR-U) (DENSO) | (Optional).

98061-59626

$3.14
