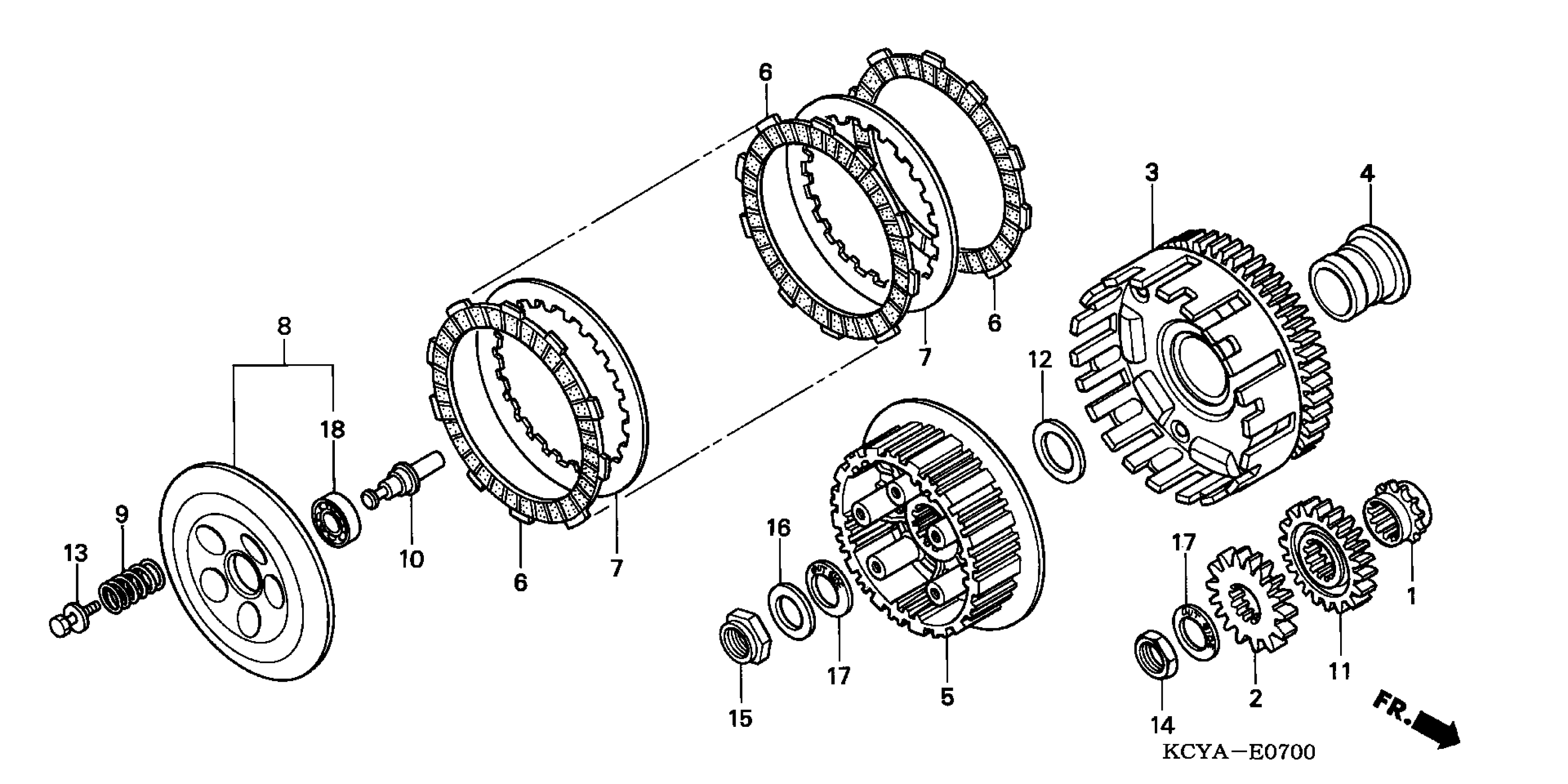

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 CLUTCH Diagram

SPROCKET, TIMING (19T)

14312-KCZ-000

$49.11

GEAR, PUMP DRIVE

15130-KCY-671

Unavailable

CLUTCH (OUTER)

22100-KCY-670

Unavailable

GUIDE, CLUTCH (OUTER)

22116-KF0-000

$29.02

CENTER, CLUTCH

22121-KCY-670

$147.79

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

PLATE, CLUTCH

22321-KF0-770

$14.92

PLATE, CLUTCH PRESSURE

22350-KCY-670

$102.36

SPRING, CLUTCH

22401-MM9-000

$3.81

PIN, CLUTCH LIFTER

22847-KCY-672

Unavailable

GEAR, PRIMARY DRIVE

23121-KCY-671

$96.11

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

NUT (18MM)

90235-KA4-000

$11.09

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER, LOCK

90432-428-000

$7.57

WASHER (18X32X2)

90501-ML3-910

$4.37

BEARING, RADIAL BALL (6903)

91008-KCY-671

$25.46
