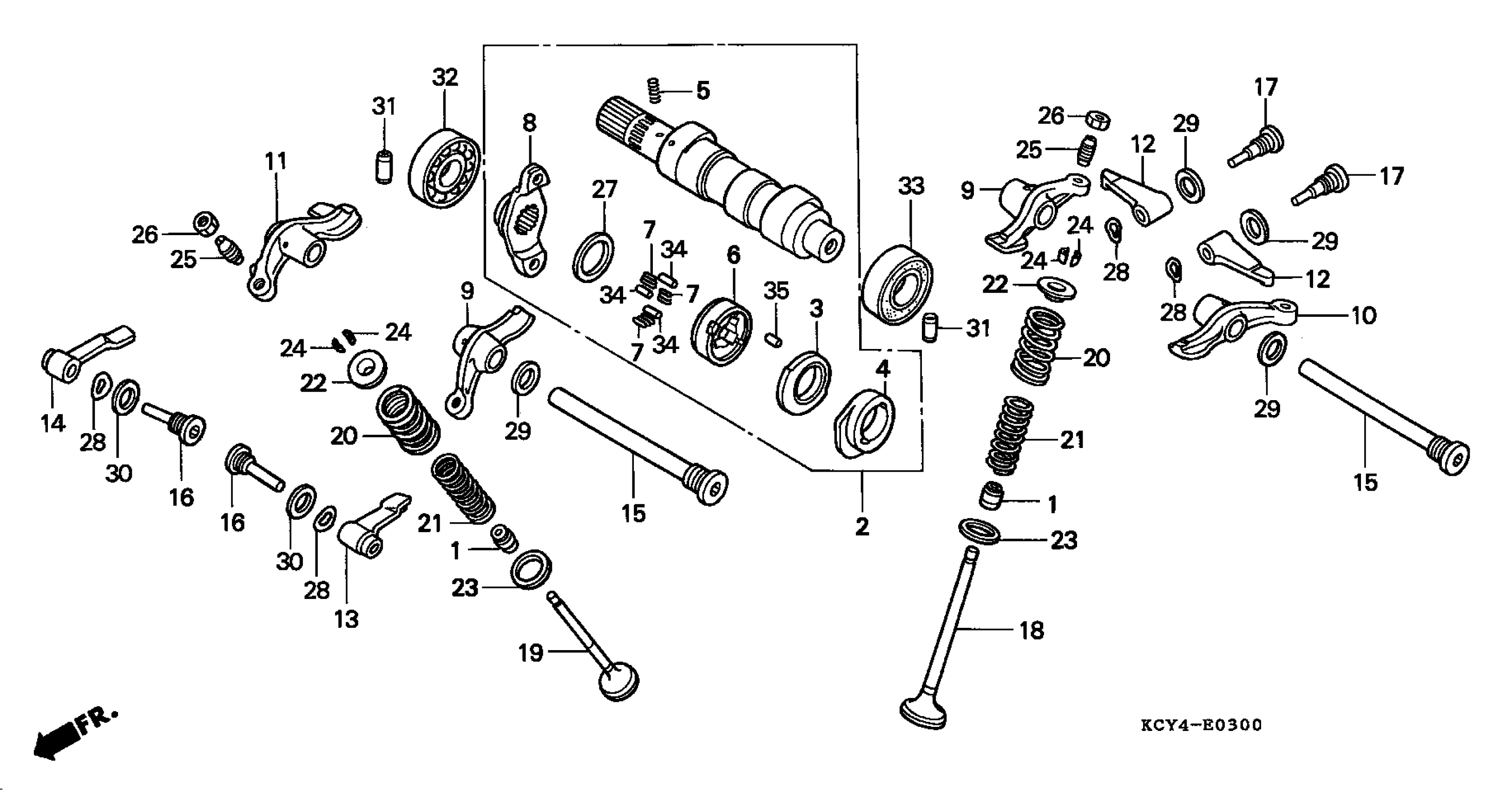

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.81

2

CAMSHAFT ASSY.

14000-KCY-670

Unavailable

3

CAM, REVERSE

14102-MN1-670

$66.31

4

PLATE, DECOMPRESSION CAM

14105-KCY-670

$58.72

5

SPRING, DECOMPRESSION

14106-MN1-670

$2.97

6

CLUTCH OUTER, DECOMPRESSION

14121-KAS-900

$72.77

7

SPRING, ROLLER

14122-KV2-940

$5.30

8

FLANGE, CAM SPROCKET

14325-KV2-942

$41.13

9

ARM A, ROCKER

14411-KCY-670

$52.03

10

ARM B, ROCKER

14421-KCY-670

$52.03

11

ARM C, ROCKER

14431-KCY-670

$52.03

12

ARM, IN. VALVE SUB-ROCKER

14445-KF0-000

$31.43

13

ARM, L. EX. VALVE SUB-ROCKER

14446-KF0-000

$35.34

14

ARM, R. EX. VALVE SUB-ROCKER

14447-KF0-000

$35.34

15

BOLT, ROCKER ARM SHAFT This part replaces 14451-KCY-670.

14451-MBV-000

$29.93

15

BOLT, ROCKER ARM SHAFT

14451-MBV-000

$29.93

16

SHAFT A, SUB-ROCKER ARM

14455-KCY-670

$25.68

17

SHAFT B, SUB-ROCKER ARM

14456-KCY-670

$40.89

18

VALVE, IN.

14711-KCY-670

$33.57

19

VALVE, EX.

14721-KCY-670

$62.30

20

SPRING, VALVE (OUTER)

14751-KCY-670

$10.96

21

SPRING, VALVE (INNER)

14761-KG0-003

$6.41

22

RETAINER, VALVE SPRING

14771-107-020

$7.99

23

SEAT, VALVE SPRING (OUTER)

14775-KCY-670

$5.78

24

COTTER, VALVE

14781-HA0-770

$3.45

25

SCREW, TAPPET ADJUSTING

90012-MG3-000

$9.89

26

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

27

WASHER, THRUST (17X22X0.75)

90401-MN1-670

$3.64

28

WASHER, WAVE

90406-KF0-003

$2.92

29

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

30

WASHER (12MM)

90545-KF0-000

$3.26

31

PIN, DOWEL (10X18)

90701-KF0-000

$4.80

32

BEARING, RADIAL BALL (18X37X9) (NTN)

91002-MN1-671

$40.06

33

BEARING, RADIAL BALL (6904)

91003-KF0-008

$14.20

34

ROLLER, DECOMPRESSION CLUTCH

91101-KV2-940

$3.44

35

ROLLER (4X9)

96220-40090

$1.49
