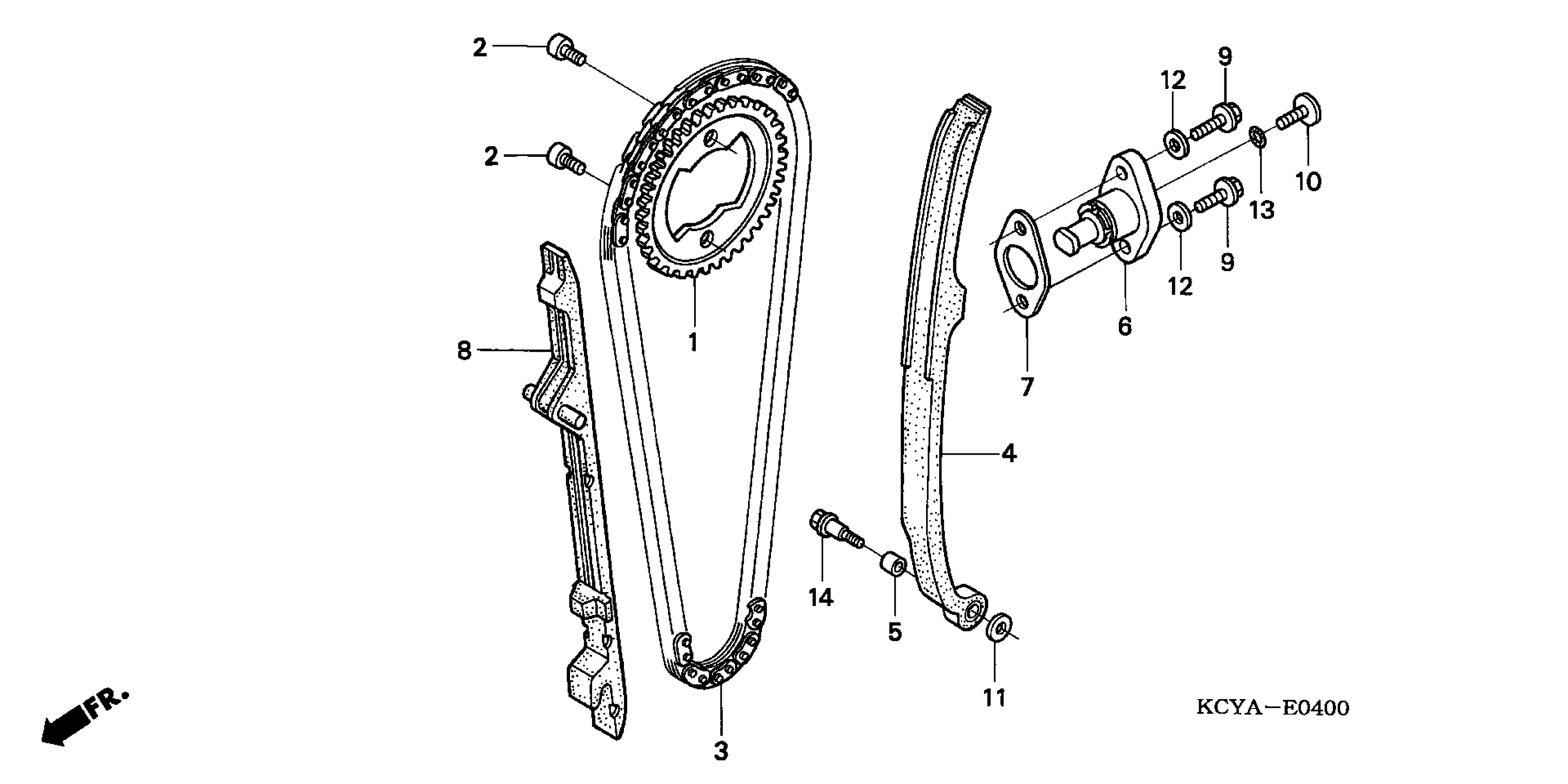

Honda XR400RA (04) MOTORCYCLE, JPN, VIN# JH2NE030-4M900001 TO JH2NE030-4M949999 CAM CHAIN Diagram

SPROCKET, CAM (38T)

14321-MN1-670

$39.06

BOLT, SPECIAL KNOCK (7X9.5)

14322-MAN-620

$9.32

CHAIN, CAM (112L) (BORG WARNER)

14401-KCY-671

$148.28

TENSIONER, CAM CHAIN

14511-KCY-670

$97.21

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-KCY-671

$97.44

GASKET, TENSIONER LIFTER

14523-KBB-901

$10.40

GUIDE, CAM CHAIN

14620-KCY-670

$45.36

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

SCREW, PAN (6X6)

90005-KY7-000

$3.24

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (1.5X9.5)

91306-MG3-000

$2.33

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
