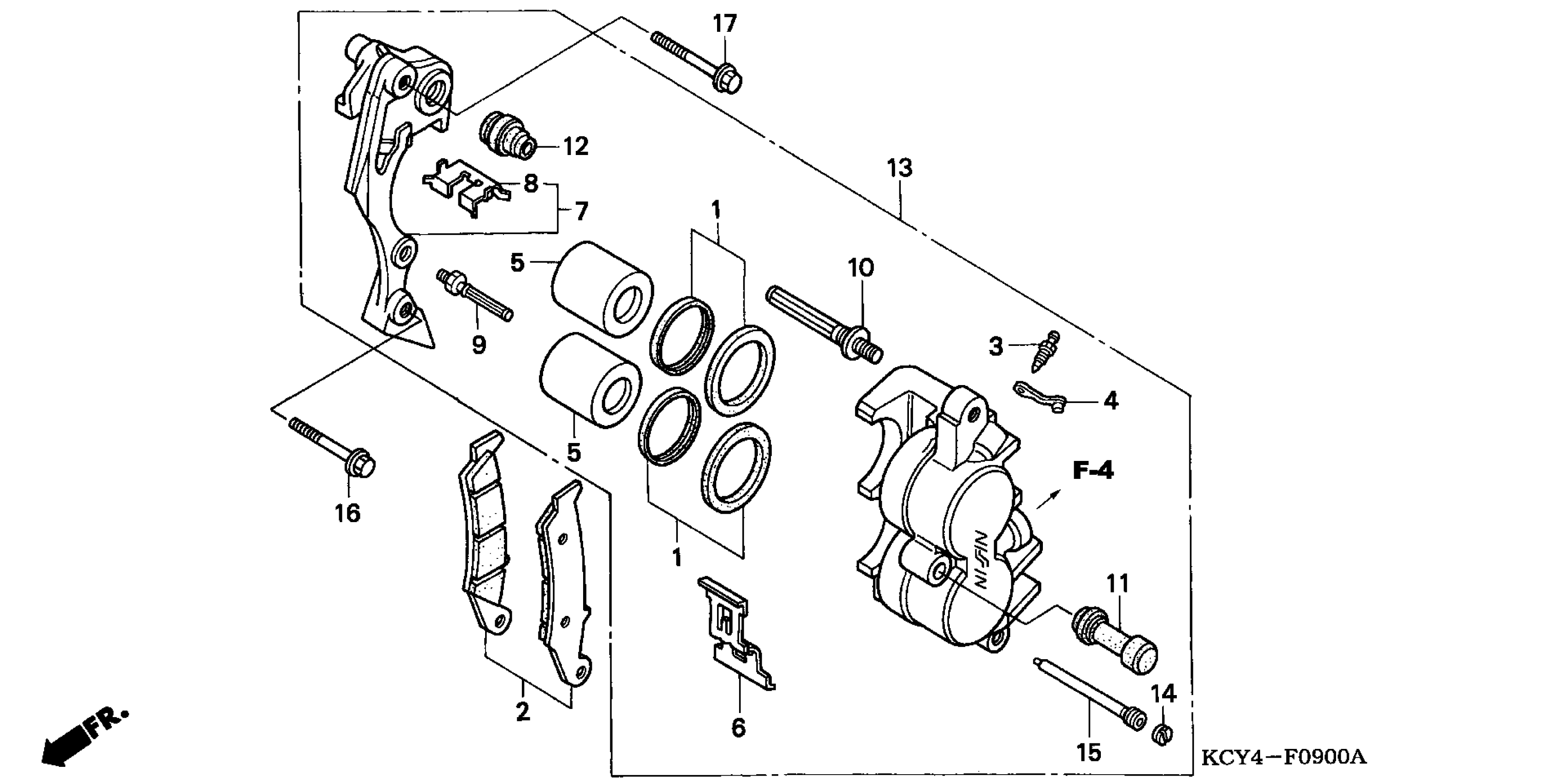

Honda XR400RA (03) MOTORCYCLE, JPN, VIN# JH2NE030-3M800001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, FR.

06455-KCZ-000

$51.88

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-KS6-702

$50.91

SPRING, PAD

45108-MY1-006

$9.86

BRACKET, L. FR.

45110-KCY-671

$96.44

RETAINER

45112-KS6-701

$5.80

BOLT A, PIN

45131-HA5-672

$14.17

BOLT, PIN

45131-KAE-006

$6.29

BOLT A, PIN

45131-HA5-672

$14.17

BOLT, PIN

45131-KAE-006

$6.29

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KCY-671

Unavailable

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-HA5-672

$9.77

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54

BOLT, FLANGE (8X40)

90131-MS6-900

$3.89
