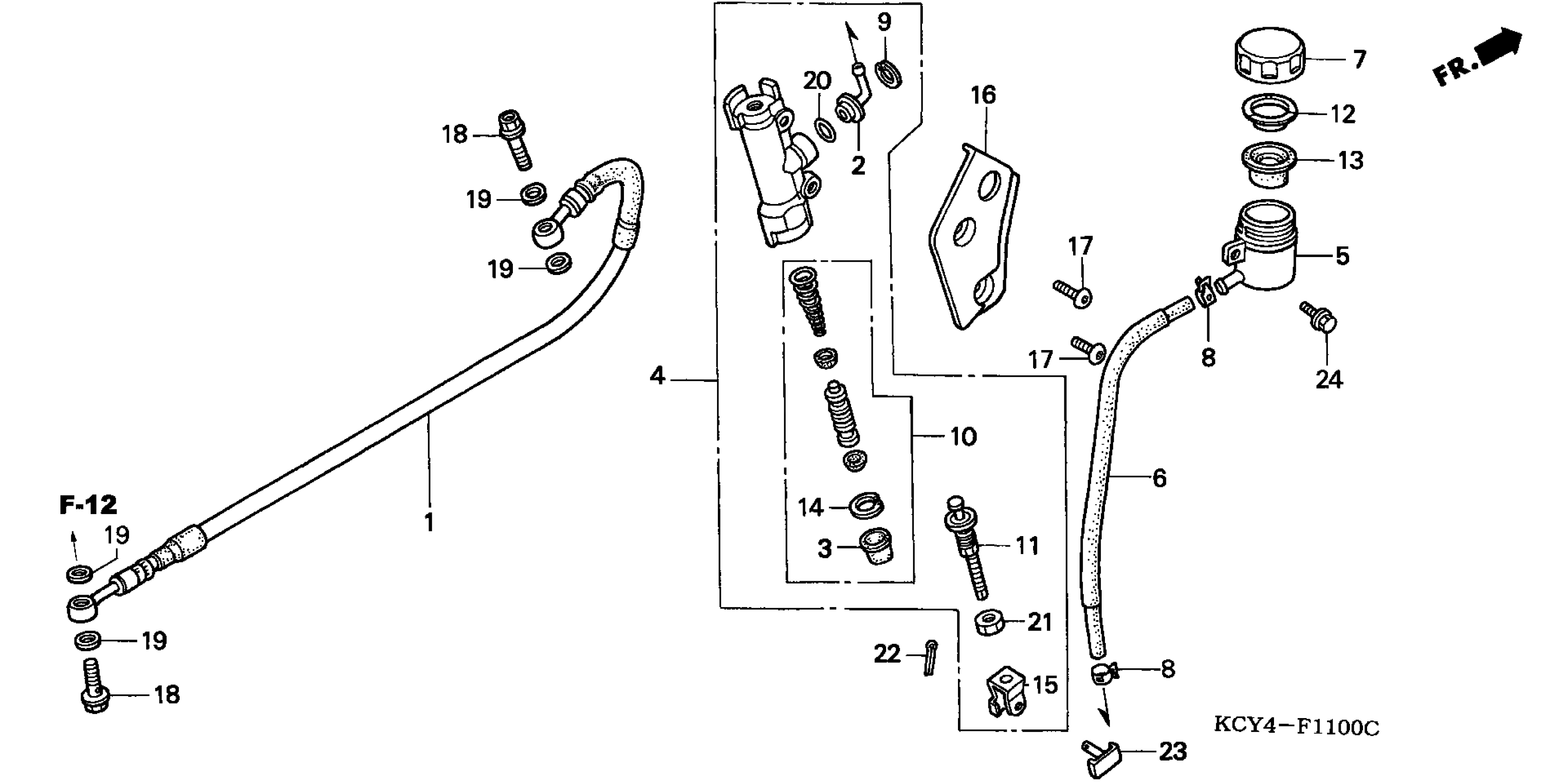

Honda XR400RA (02) MOTORCYCLE, JPN, VIN# JH2NE030-2K700001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-KCY-671

Unavailable

2

CONNECTOR

43503-KCY-671

$11.13

3

BOOT

43504-MB2-006

$10.04

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-KCY-671

Unavailable

5

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

6

HOSE, RR. MASTER CYLINDER

43512-KCY-670

Unavailable

7

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

10

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

11

ROD, PUSH

43530-KS7-831

$28.93

12

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

13

DIAPHRAGM

45520-GM9-711

$9.15

14

CIRCLIP

46182-500-013

$4.90

15

JOINT, BRAKE ROD

46504-KV6-702

$7.84

16

PLATE, PIVOT

50605-KCE-670

Unavailable

17

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.92

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, SPLIT (2.0X12)

94201-20120

$1.49

23

PIN D, JOINT

95015-54000

$4.24

24

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
