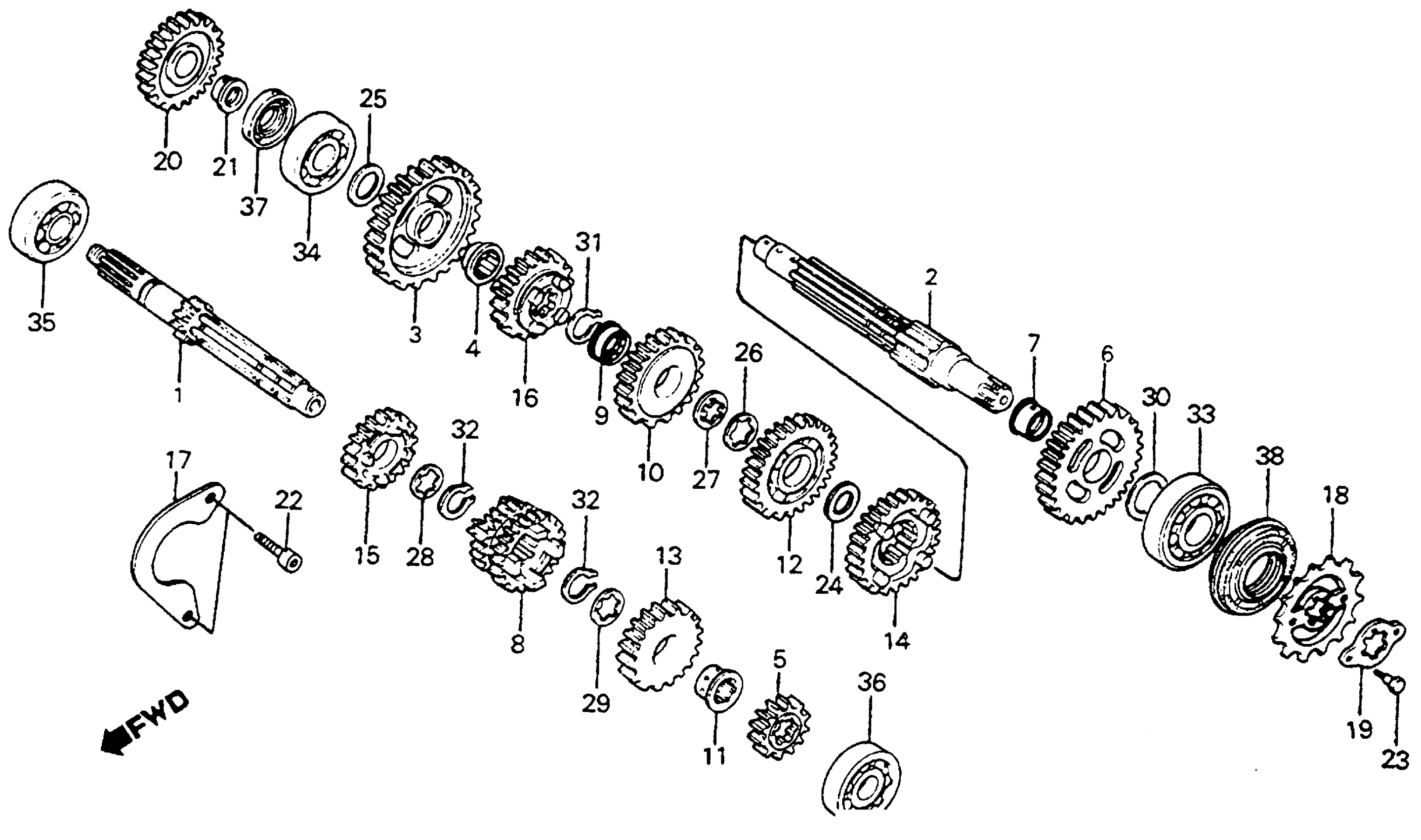

Honda XR350RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000015 TO JH2PE040-FK205671 TRANSMISSION 85 Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23210-KN5-670.

23210-KN5-671

Unavailable

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-KN5-671

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-KN5-670

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23411-KN5-670

Unavailable

4

BUSH (20MM) (NOT AVAILABLE)

23412-KN5-670

Unavailable

5

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23421-KF0-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (34T) (NOT AVAILABLE)

23431-KN5-670

Unavailable

7

BUSH (24MM) (NOT AVAILABLE)

23432-KN5-670

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (NOT AVAILABLE)

23441-KN5-670

Unavailable

9

COLLAR, SPLINE (25MM) (NOT AVAILABLE)

23442-ME5-010

Unavailable

10

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23451-KN5-671

Unavailable

11

COLLAR (24MM) (NOT AVAILABLE)

23452-KF0-000

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (28T) (NOT AVAILABLE)

23471-KN5-670

Unavailable

13

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-KF0-000

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-KN5-670

Unavailable

15

GEAR, MAINSHAFT TOP (27T) (NOT AVAILABLE)

23501-KG0-000

Unavailable

16

GEAR, COUNTERSHAFT TOP (25T) (NOT AVAILABLE)

23511-KN5-671

Unavailable

17

PLATE, BEARING SETTING (NOT AVAILABLE)

23521-KF0-000

Unavailable

18

SPROCKET, DRIVE (14T) This part replaces 23801-KN5-670.

23801-KT2-P00

Unavailable

18

SPROCKET, DRIVE (14T)

23801-KT2-P00

Unavailable

19

PLATE, FIXING

23811-HA5-670

$4.96

19

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

20

GEAR, KICK STARTER IDLE (28T) (NOT AVAILABLE)

28221-KF0-000

Unavailable

21

BUSH (14MM) (NOT AVAILABLE)

28222-KN5-670

Unavailable

22

BOLT, SOCKET (6X16) This part replaces 90001-KF0-000.

96600-06016-00

$1.66

22

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

23

BOLT, FLANGE

90118-958-003

$3.24

24

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

25

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

26

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

27

WASHER, LOCK (25MM)

90462-323-000

$3.77

28

WASHER, SPLINE (22MM) (NOT AVAILABLE)

90464-KF0-000

Unavailable

29

WASHER, SPLINE (22MM)

90464-444-000

$5.37

30

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

30

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

31

CIRCLIP (25MM)

90601-107-000

$3.74

32

SET-RING (22MM)

90602-360-000

$9.66

33

BEARING, SPECIAL (22) (KOYO)

91002-HA5-003

Unavailable

34

BEARING, RADIAL BALL (17X44X12)

91004-KN5-671

Unavailable

35

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$40.44

35

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

36

BEARING, RADIAL BALL (6203) This part replaces 91008-KN5-671.

91053-HB3-771

$22.50

37

OIL SEAL (17X34X4.5) This part replaces 91203-KF0-000.

91203-KF0-004

Unavailable

37

OIL SEAL (17X34X4.5) This part replaces 91203-KF0-003.

91203-KF0-004

Unavailable

37

OIL SEAL (17X34X4.5) (NOT AVAILABLE)

91203-KF0-004

Unavailable

38

OIL SEAL (22X35X8) (NOT AVAILABLE)

91205-HA5-000

Unavailable
