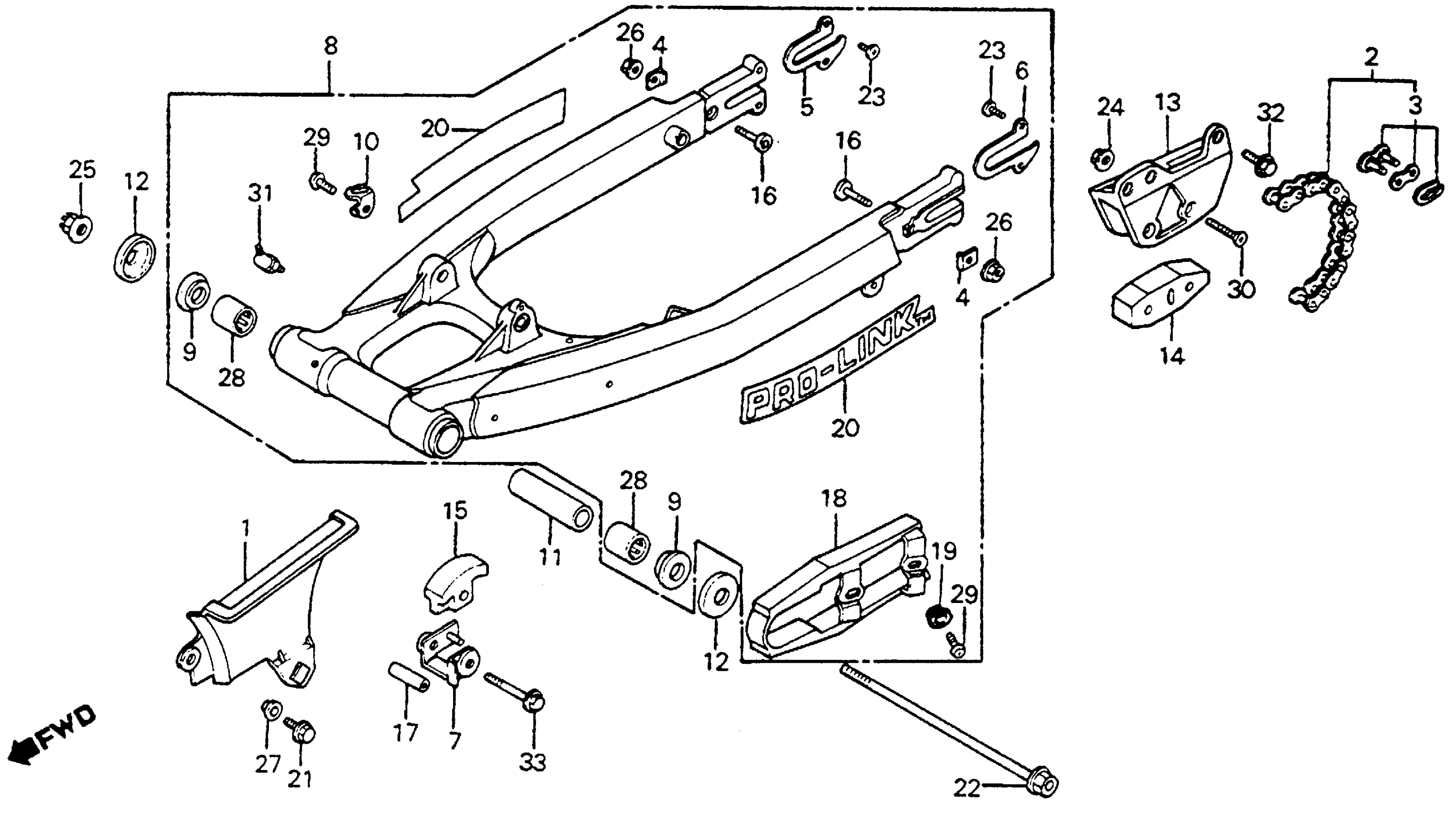

Honda XR350RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000015 TO JH2PE040-FK205671 SWINGARM + CHAIN CASE 85 Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-KN5-670

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) (DAIDO) (NOT AVAILABLE)

405W3-MN1-505

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KA2-771.

405W3-MN1-505

Unavailable

2

CHAIN, DRIVE (520VC.6-106FJ) (NOT AVAILABLE)

40530-KN5-003

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KN5-005.

405W3-MN1-505

Unavailable

3

MASTER LINK (TAKASAGO)

40531-KF0-005

Unavailable

3

MASTER LINK (DAIDO) This part replaces 40531-KN5-003.

40531-KT0-003

$5.67

3

MASTER LINK (DAIDO)

40531-KT0-003

$5.67

4

CLAMP, CHAIN ADJUSTER (NOT AVAILABLE)

40546-KN5-000

Unavailable

5

WASHER, R. RR. SWINGARM (NOT AVAILABLE)

42307-KN5-000

Unavailable

6

WASHER, L. RR. SWINGARM (NOT AVAILABLE)

42308-KN5-000

Unavailable

7

STAY, TENSIONER

50143-MA0-770

Unavailable

8

SWINGARM ASSY. This part replaces 52100-KN5-000.

52100-KN5-780

Unavailable

9

BUSH, PIVOT THRUST

52109-430-300

$16.01

10

HOOK, BRAKE SPRING (NOT AVAILABLE)

52115-KN5-000

Unavailable

11

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-KF0-000

Unavailable

12

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

12

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

13

GUIDE, CHAIN (NOT AVAILABLE)

52146-KN5-000

Unavailable

14

SLIDER, CHAIN GUIDE

52147-KN5-005

$14.67

15

SLIDER, CHAIN

52155-KK0-771

$39.02

16

PIN, CHAIN ADJUSTING (NOT AVAILABLE)

52156-KN5-000

Unavailable

17

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

18

SLIDER, CHAIN This part replaces 52170-KN5-000.

52170-KT1-770

$67.70

18

SLIDER, CHAIN

52170-KT1-770

$67.70

19

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

20

MARK, SWINGARM (NOT AVAILABLE)

87121-KN5-670

Unavailable

21

BOLT, FLANGE (6MM)

90111-187-000

$5.59

22

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-KN5-000

Unavailable

23

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

24

NUT, U (6MM)

90301-473-003

$4.07

25

NUT, U (14MM)

90305-GE8-003

$3.86

26

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

27

WASHER (6X20)

90512-300-000

$3.08

28

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

28

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

29

SCREW, PAN (5X12)

93500-05012-0A

$1.49

30

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

31

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56

32

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

33

BOLT, FLANGE (6X45)

96300-06045-00

$2.23
