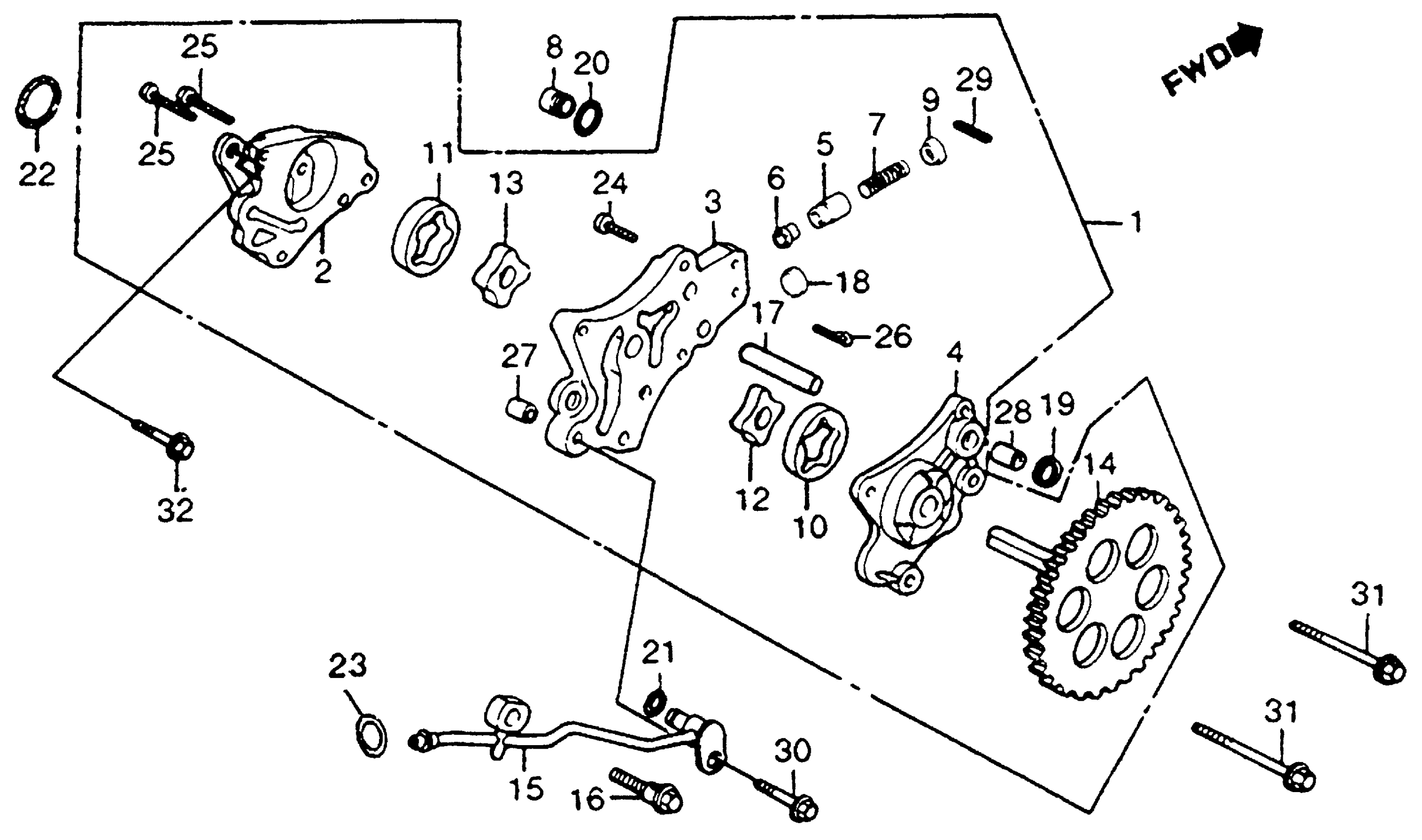

Honda XR350RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000015 TO JH2PE040-FK205671 OIL PUMP 85 Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE) | Use up to Engine SN 5000230 This part replaces 15100-KN5-670.

15100-KN5-672

Unavailable

1

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15100-KN5-671.

15100-KN5-672

Unavailable

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-KN5-672

Unavailable

2

BASE, OIL PUMP | Use up to Engine SN 5000230

15101-KN5-670

Unavailable

2

BASE, OIL PUMP (NOT AVAILABLE)

15101-KN5-671

Unavailable

3

SPACER, OIL PUMP | Use up to Engine SN 5000230

15102-KN5-670

Unavailable

3

SPACER, OIL PUMP (NOT AVAILABLE)

15102-KN5-671

Unavailable

4

BODY, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 5000230

15103-KN5-670

Unavailable

4

BODY, OIL PUMP | Use from Engine SN 5000231 This part replaces 15103-KN5-671.

15103-KN5-672

Unavailable

5

VALVE, OIL LEAK STOPPER

15106-MG3-000

$16.97

6

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.53

7

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.80

8

ORIFICE (5.5MM)

15109-MG3-000

$12.02

9

SEAT B, SPRING

15111-MG3-000

$2.92

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use up to Engine SN 5002098 This part replaces 15122-KK0-770.

15122-KK0-771

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-KK0-771

Unavailable

11

ROTOR B, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-KN5-670

Unavailable

12

ROTOR, OIL PUMP (INNER) | Use up to Engine SN 5000230

15123-KK0-000

Unavailable

12

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN 5000231 to 5002098 This part replaces 15123-KK0-770.

15123-KK0-771

Unavailable

12

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN 5000231

15123-KK0-771

Unavailable

13

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-KN5-670

Unavailable

14

GEAR, OIL PUMP DRIVEN (NOT AVAILABLE)

15140-KN5-670

Unavailable

15

PIPE, OIL | Use up to Engine SN 5000230

15510-KN5-670

Unavailable

15

PIPE, OIL (NOT AVAILABLE)

15510-KN5-671

Unavailable

16

BOLT, TRANSMISSION HOLE (7X23) (NOT AVAILABLE)

15532-KN5-670

Unavailable

17

PIN, DOWEL (8X35) (NOT AVAILABLE)

90701-689-000

Unavailable

18

PLUG, SEALING (11MM) (NOT AVAILABLE)

90802-MG3-000

Unavailable

19

GASKET, RUBBER

91303-KK0-003

$2.97

20

O-RING (1.5X9.5)

91306-MG3-000

$2.33

21

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

22

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

23

O-RING (4.5X1.5) (NOT AVAILABLE)

91351-KF0-003

$1.89

24

SCREW, PAN (5X18)

93500-05018-0A

$1.49

25

SCREW, PAN (5X25)

93500-05025-0A

$1.49

26

PIN, SPLIT (3X18) (NOT AVAILABLE)

94201-03180

Unavailable

27

PIN, DOWEL (8X10)

94301-08100

$2.25

28

PIN, DOWEL (10X12)

94301-10120

$2.28

29

PIN, SPRING (3X16)

94305-30162

$1.74

30

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

30

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

31

BOLT, FLANGE (6X55) This part replaces 95700-06055-08.

95701-06055-08

$2.16

31

BOLT, FLANGE (6X55)

95701-06055-08

$2.16

32

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

32

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
