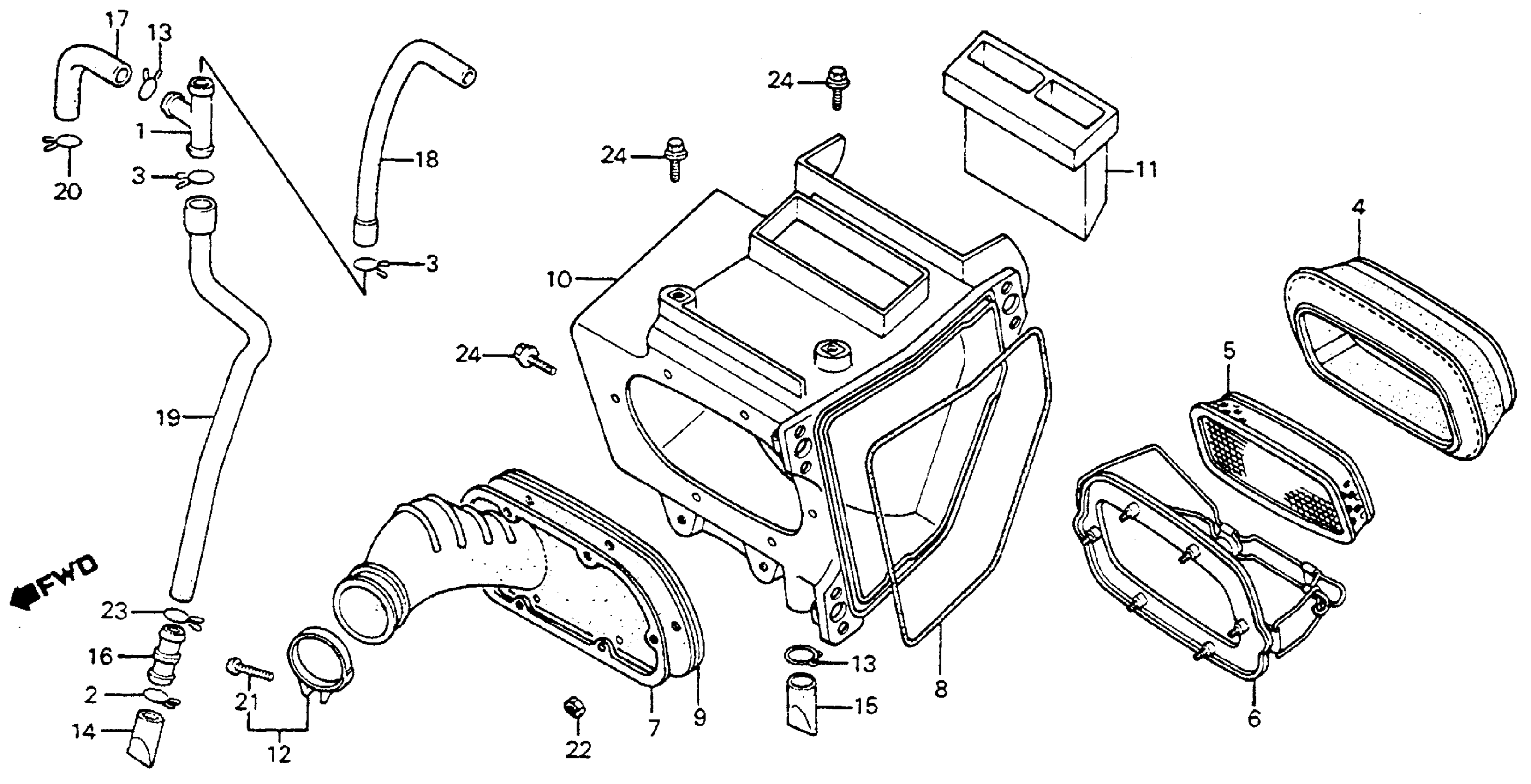

Honda XR350RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000015 TO JH2PE040-FK205671 AIR CLEANER 85 Diagram

#

Description
Price

1

JOINT, BREATHER THREE WAY

15772-KK0-000

$12.13

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

CLIP, BREATHER TUBE

15772-551-000

$2.05

3

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

4

ELEMENT, AIR CLEANER This part replaces 17213-KF0-000.

17213-MN1-670

$29.00

4

ELEMENT, AIR CLEANER

17213-MN1-670

$29.00

5

HOLDER, ELEMENT (NOT AVAILABLE)

17214-KN5-670

Unavailable

6

PLATE, ELEMENT SETTING (NOT AVAILABLE)

17216-KN5-670

Unavailable

7

PLATE, HOLDER

17217-KF0-000

Unavailable

8

SEAL, AIR CLEANER COVER This part replaces 17219-HA2-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KN5-670.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-ZE3-840.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17221-MG2-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.96

9

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-KN5-670

Unavailable

10

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-MK2-670

Unavailable

11

CAP, IN. DUCT

17241-KN5-670

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (58) This part replaces 17255-KN5-670.

95018-58250

$5.76

12

BAND, AIR CLEANER CONNECTING TUBE (58) This part replaces 90652-GHB-720.

95018-58250

$5.76

12

BAND, AIR CLEANER CONNECTING TUBE (58)

95018-58250

$5.76

13

CLIP, BREATHER TUBE

17316-611-000

$9.23

14

TUBE, DRAIN

17358-170-000

$3.74

15

TUBE, DRAIN

17359-KK0-000

$7.30

16

JOINT, BREATHER TUBE

17359-428-000

$5.46

17

TUBE A, BREATHER

17371-KN5-670

Unavailable

18

TUBE B, BREATHER (NOT AVAILABLE)

17372-KN5-670

Unavailable

19

TUBE C, BREATHER (NOT AVAILABLE)

17373-KN5-670

Unavailable

20

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

21

SCREW, PAN (4X25)

93500-04025-0A

$1.93

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

CLIP, TUBE (C12)

95002-80000

$1.49

24

BOLT, FLANGE (6X10)

96300-06010-00

$1.49
