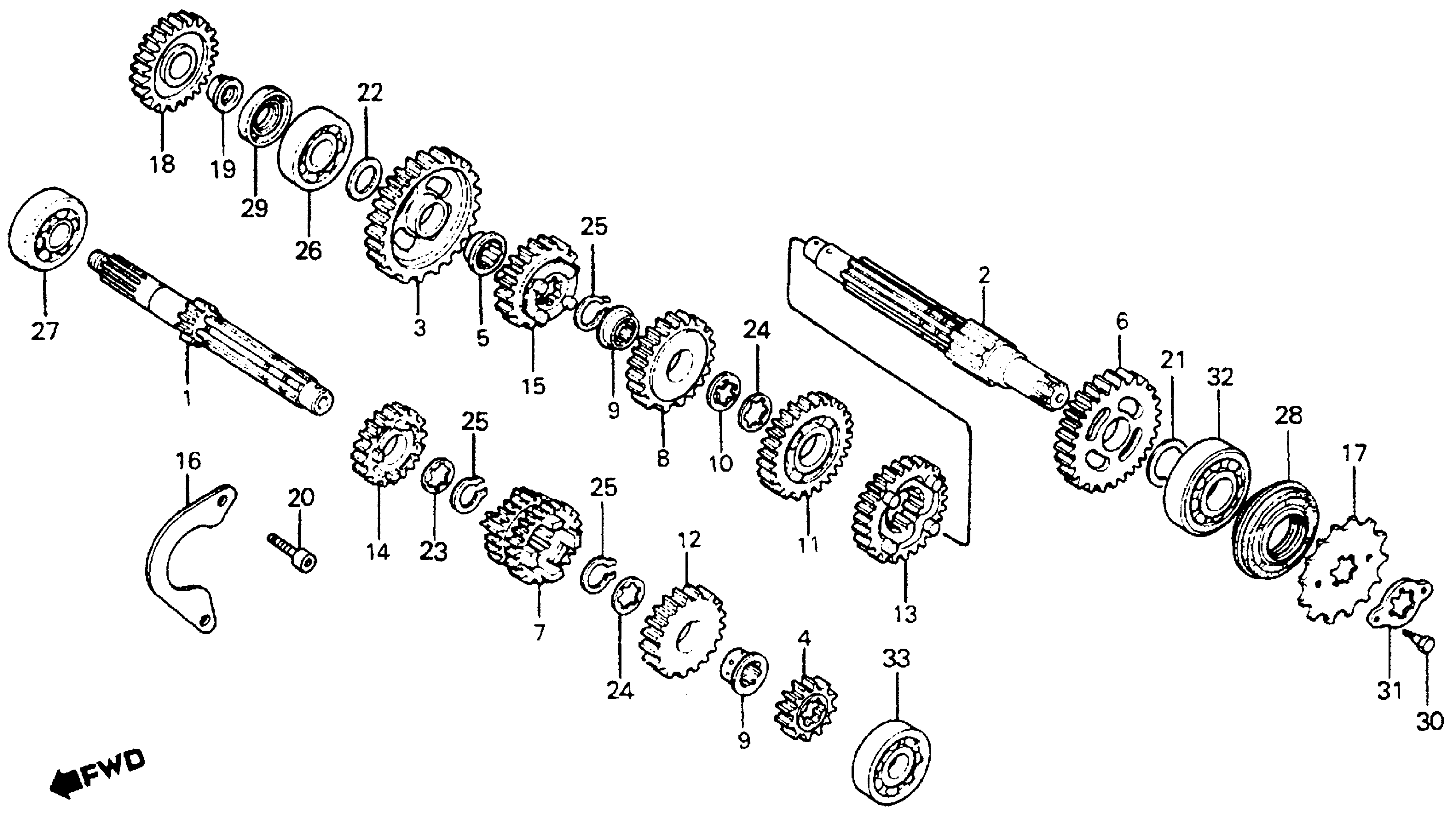

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 TRANSMISSION 83-84 Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23210-KF0-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-KF0-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23411-KF0-000

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23421-KF0-000

Unavailable

5

BUSH (20MM) (NOT AVAILABLE)

23422-KF0-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (34T) (NOT AVAILABLE)

23431-KF0-000

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (20T,22T) (NOT AVAILABLE)

23441-KF0-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (31T) (NOT AVAILABLE)

23451-KF0-000

Unavailable

9

COLLAR (24MM) (NOT AVAILABLE)

23452-KF0-000

Unavailable

10

WASHER, LOCK

23456-KA3-000

$5.87

11

GEAR, COUNTERSHAFT FOURTH (28T) This part replaces 23471-KF0-000.

23471-KG0-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-KF0-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE) This part replaces 23491-KF0-000.

23491-KN5-670

Unavailable

14

GEAR, MAINSHAFT TOP (27T) (NOT AVAILABLE)

23501-KF0-000

Unavailable

15

GEAR, COUNTERSHAFT TOP (25T) (NOT AVAILABLE)

23511-KF0-000

Unavailable

16

PLATE, BEARING SETTING (NOT AVAILABLE)

23521-KF0-000

Unavailable

17

SPROCKET, DRIVE (14T) (NOT AVAILABLE)

23801-KE5-000

Unavailable

17

SPROCKET, DRIVE (14T) This part replaces 23801-KF0-000.

23801-KE5-000

Unavailable

17

SPROCKET, DRIVE (14T) This part replaces 23801-KG0-000.

23801-KE5-000

Unavailable

18

GEAR, KICK STARTER IDLE (28T) (NOT AVAILABLE)

28221-KF0-000

Unavailable

19

BUSH (14MM) (NOT AVAILABLE)

28222-KF0-000

Unavailable

20

BOLT, SOCKET (6X16) This part replaces 90001-KF0-000.

96600-06016-00

$1.66

20

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

21

WASHER, THRUST (20MM)

90453-360-000

$3.30

22

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

23

WASHER, SPLINE (22MM) (NOT AVAILABLE)

90464-KF0-000

Unavailable

24

WASHER, SPLINE (22MM)

90464-444-000

$5.37

25

SET-RING (22MM)

90602-360-000

$9.66

26

BEARING, RADIAL BALL

91003-KJ1-003

$23.06

26

BEARING, RADIAL BALL This part replaces 91004-KF0-000.

91003-KJ1-003

$23.06

26

BEARING, RADIAL BALL This part replaces 91004-KF0-008.

91003-KJ1-003

$23.06

27

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-000.

91005-KS4-003

$40.44

27

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$40.44

27

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

28

OIL SEAL (20X35X8) This part replaces 91202-KF0-000.

91202-KL3-671

Unavailable

28

OIL SEAL (20X35X8) This part replaces 91202-KF0-004.

91202-KL3-671

Unavailable

29

OIL SEAL (17X34X4.5) This part replaces 91203-KF0-000.

91203-KF0-004

Unavailable

29

OIL SEAL (17X34X4.5) This part replaces 91203-KF0-003.

91203-KF0-004

Unavailable

29

OIL SEAL (17X34X4.5) (NOT AVAILABLE)

91203-KF0-004

Unavailable

30

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

30

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

30

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

31

PLATE B, FIXING

95014-92100

$1.49

32

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

33

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59
