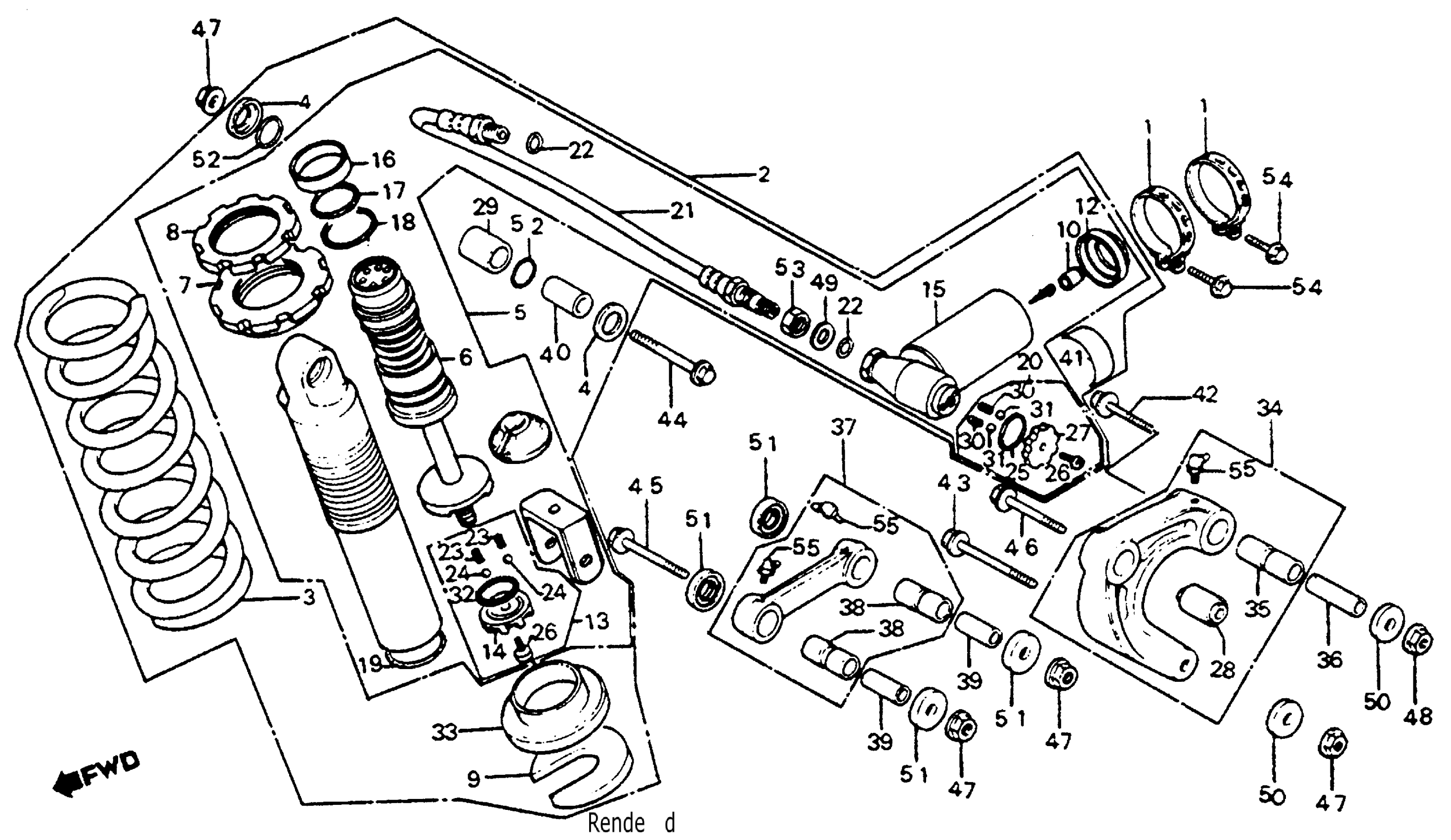

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 SHOCK ABSORBER 83-84 Diagram

BAND, SUB-TANK (NOT AVAILABLE)

50252-KF0-000

Unavailable

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-KF0-771

Unavailable

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN EM102664

52400-KF0-772

Unavailable

SPRING, SHOCK ABSORBER (NOT AVAILABLE)

52401-KF0-003

Unavailable

CAP, DUST SEAL

52406-KB7-003

$6.48

DAMPER, RR. (NOT AVAILABLE)

52410-KF0-771

Unavailable

DAMPER, RR. (NOT AVAILABLE) | Use from Frame SN EM102664

52410-KF0-772

Unavailable

ROD, PISTON (NOT AVAILABLE) This part replaces 52421-KF0-771.

52421-KN5-003

Unavailable

ROD, PISTON (NOT AVAILABLE) | Use from Frame SN EM102664 This part replaces 52421-KF0-772.

52421-KN5-003

Unavailable

ROD, PISTON (NOT AVAILABLE) | Use from Frame SN EM102664

52421-KN5-003

Unavailable

ADJUSTER, SPRING

52422-KF0-003

Unavailable

NUT, ADJUSTER

52423-KF0-003

Unavailable

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-KF0-003

Unavailable

CAP, AIR VALVE

52425-381-771

$5.05

CAP, SUB-TANK (NOT AVAILABLE)

52427-MA0-771

Unavailable

PLATE SET, ADJUST (NOT AVAILABLE)

52428-KF0-003

Unavailable

PLATE, ADJUSTING (NOT AVAILABLE)

52429-KF0-003

Unavailable

SUB-TANK ASSY. (NOT AVAILABLE)

52430-KF0-771

Unavailable

RING, PISTON (NOT AVAILABLE)

52431-KF0-003

Unavailable

O-RING C (2.0X29.5)

52432-KF0-003

Unavailable

O-RING D (3.5X29.7) (NOT AVAILABLE)

52434-KF0-003

Unavailable

RING, STOPPER

52435-KF0-003

Unavailable

PLATE SET, ADJUSTING (NOT AVAILABLE)

52438-KF0-771

Unavailable

HOSE, JOINT (NOT AVAILABLE)

52440-KF0-003

Unavailable

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

SPRING, CLICK (NOT AVAILABLE)

52445-KF0-003

Unavailable

BALL (NOT AVAILABLE)

52446-KF0-003

Unavailable

O-RING (2X23.5) (NOT AVAILABLE)

52447-KF0-003

Unavailable

SCREW

52448-KF0-003

$2.90

PLATE, ADJUSTING (NOT AVAILABLE)

52449-KF0-771

Unavailable

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

BUSH, DAMPER (UPPER)

52452-KB7-003

$15.55

SPRING, CLICK

52455-KF0-003

$4.97

BALL

52456-KF0-003

$3.28

SEAL, RING

52457-KF0-003

Unavailable

SEAT C, SPRING (SHOWA)

52459-KE1-003

Unavailable

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52460-KF0-000.

52460-KF0-010

Unavailable

BUSH, CUSHION ARM

52462-KF0-003

Unavailable

COLLAR, CUSHION ARM PIVOT

52463-KF0-000

Unavailable

ROD ASSY., RUBBER CONNECTING (NOT AVAILABLE)

52470-KF0-010

Unavailable

BUSH, CUSHION CONNECTING ROD

52472-MA0-013

$29.48

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

COLLAR, BUSH

52486-KB7-003

$14.81

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-KF0-003

Unavailable

BOLT, FLANGE (12X90)

90128-KF0-000

Unavailable

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

BOLT, FLANGE (10X72)

90150-KF0-000

$15.67

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

WASHER This part replaces 90401-KF0-003.

90501-MT2-000

$1.86

WASHER

90501-MT2-000

$1.86

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-711.

91262-KR8-750

Unavailable

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-712.

91262-KR8-750

Unavailable

SEAL, CUSHION ARM PIVOT (ARAI)

91262-KR8-750

Unavailable

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI) This part replaces 91262-KA3-711.

91262-KA3-712

$11.62

SEAL, CUSHION CONNECTING ROD PIVOT (ARAI)

91262-KA3-712

$11.62

DUST SEAL B

91351-KB7-003

$3.49

NUT, HEX. (12MM)

94002-12000-0S

$2.06

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
