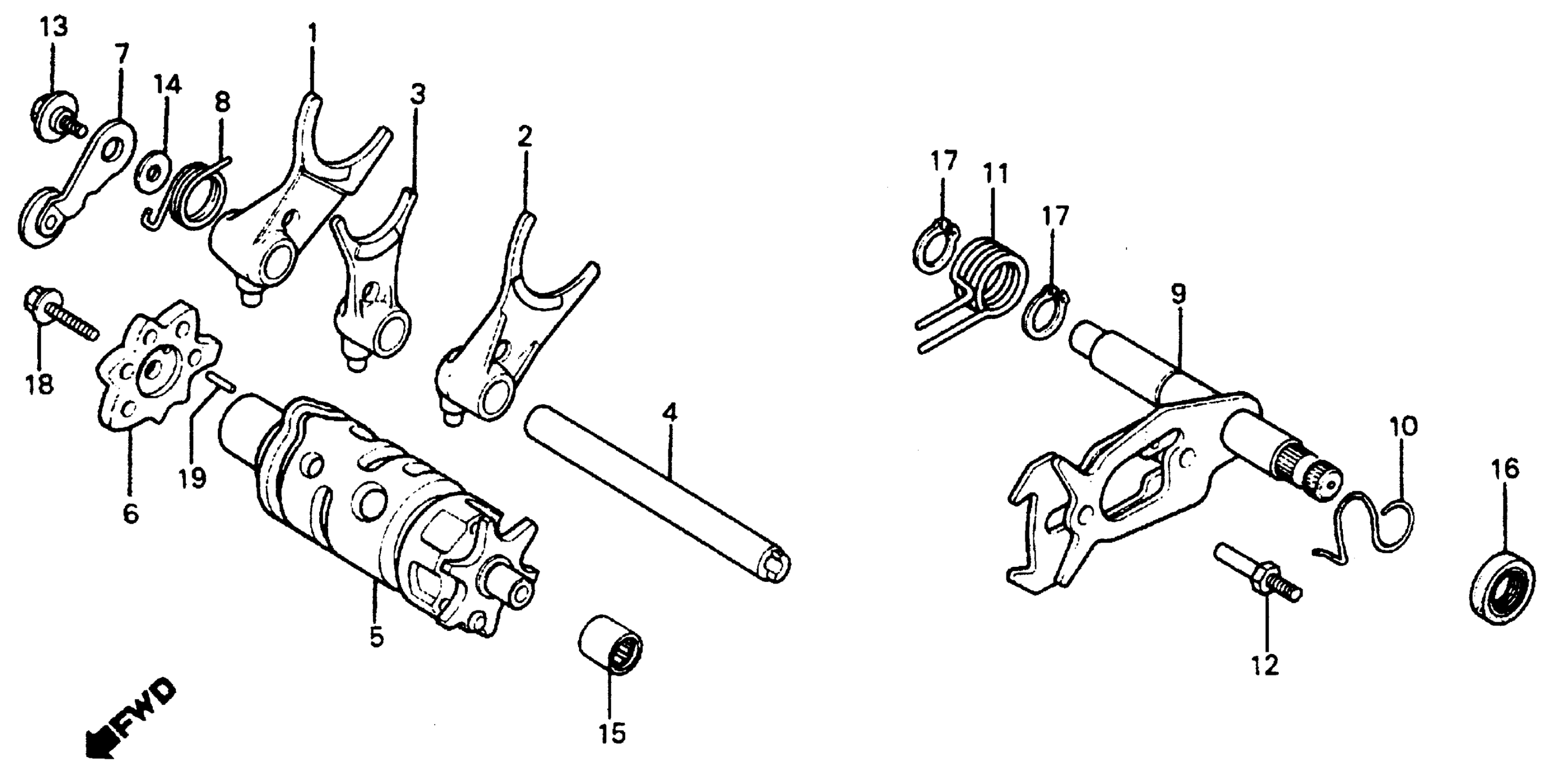

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 SHIFT DRUM + SHIFT FORK Diagram

FORK, R. GEARSHIFT This part replaces 24211-KF0-000.

24211-KF0-010

Unavailable

FORK, L. GEARSHIFT This part replaces 24212-KF0-000.

24212-KF0-010

Unavailable

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-KF0-000

Unavailable

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24241-KF0-000

Unavailable

DRUM, GEARSHIFT (NOT AVAILABLE)

24300-KF0-010

Unavailable

CAM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.) This part replaces 24411-KF0-000.

24411-KF0-010

Unavailable

CAM, GEARSHIFT

24411-KF0-010

Unavailable

STOPPER, GEARSHIFT DRUM

24430-KF0-000

$17.98

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-KF0-010

Unavailable

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.75

PIN, SHIFT RETURN SPRING | Use up to Engine SN 5106215

24652-259-000

$4.97

PIN, SHIFT RETURN SPRING | Use from Engine SN 5106216

24652-035-000

$4.01

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, DRUM STOPPER

90417-360-000

$1.74

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-956-003.

91202-965-003

$6.41

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-965-004.

91202-965-003

$6.41

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

ROLLER (3X8)

96220-30080

$1.49
